Model
Maytag CGR1110ADQ16
30" Gas Freestanding
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
CGR1110ADQ1630" Gas Freestanding
6 diagrams105 parts
Parts Sections (6)
Diagram

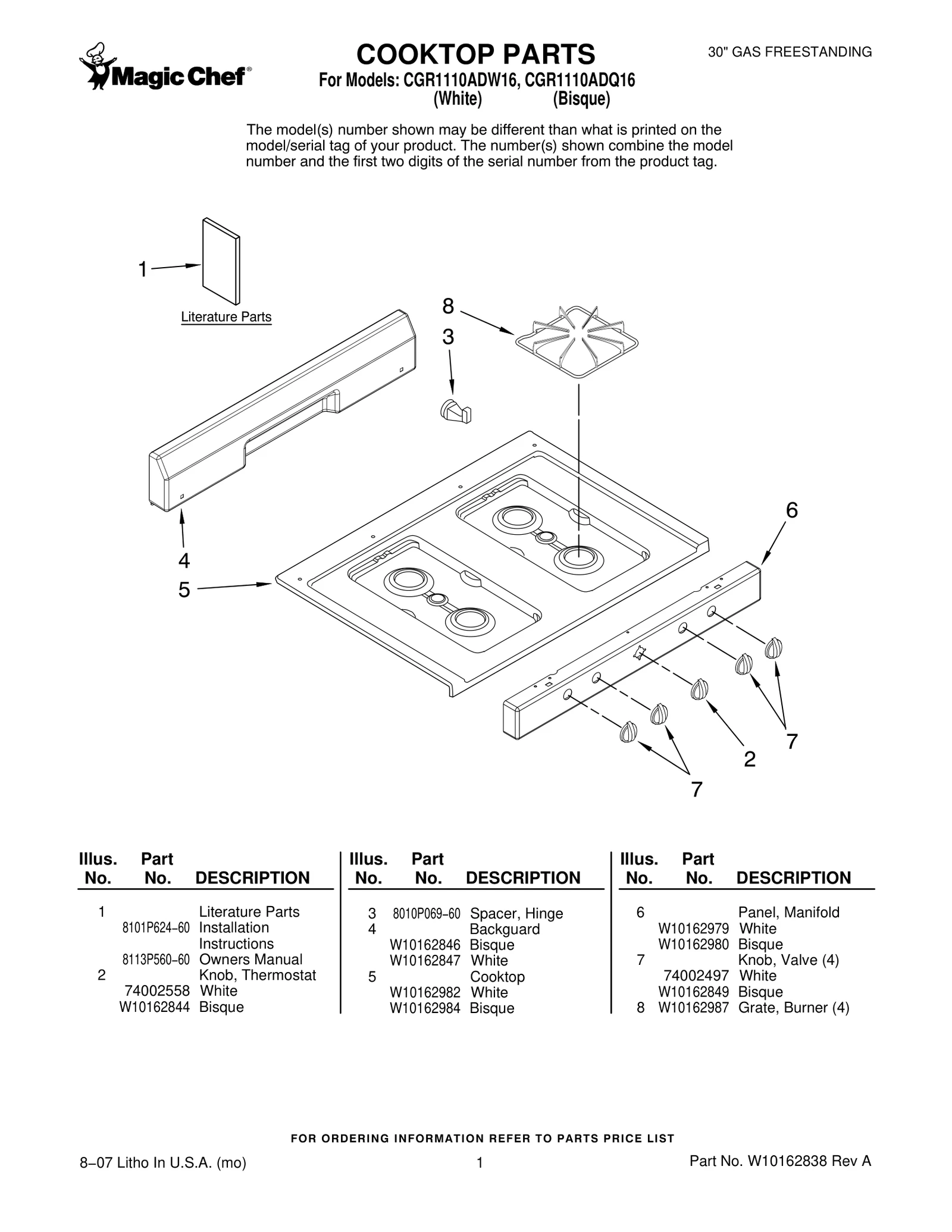

COOKTOP PARTS
Parts in COOKTOP PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/S 8101P624−60 Installation Instructions 8113P560−60 Owners Manual | - |
| 2 | – | 74002558 Knob, Thermostat — White | - |
| 2 | – | W10162844 Knob, Thermostat — Bisque | - |
| 3 | – | N/S 8010P069−60 Spacer, Hinge | - |
| 4 | – | W10162846 Backguard — Bisque | - |
| 4 | – | W10162847 Backguard — White | - |
| 5 | – | W10162982 Cooktop — White | - |
| 5 | – | W10162984 Cooktop — Bisque | - |
| 6 | – | W10162979 Panel, Manifold — White | - |
| 6 | – | W10162980 Panel, Manifold — Bisque | - |
| 7 |  | 74002497NLA Knob, Valve (4) — White | Discontinued |
| 7 | – | W10162849 Knob, Valve (4) — Bisque | - |
| 8 |  | WP2003X030-00replaces W10162987 Grate, Burner (4) ® | $121.62 PartSelect |
