Model
Maytag CGRP305TDW0
30" Gas Freestanding Standard Clean Range Electronic Ignition
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
CGRP305TDW030" Gas Freestanding Standard Clean Range Electronic Ignition
7 diagrams154 parts
Parts Sections (7)
Diagram

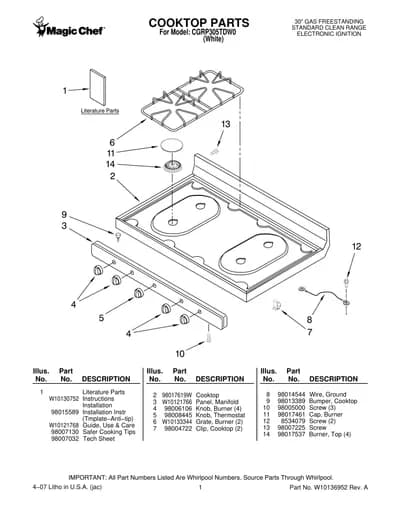

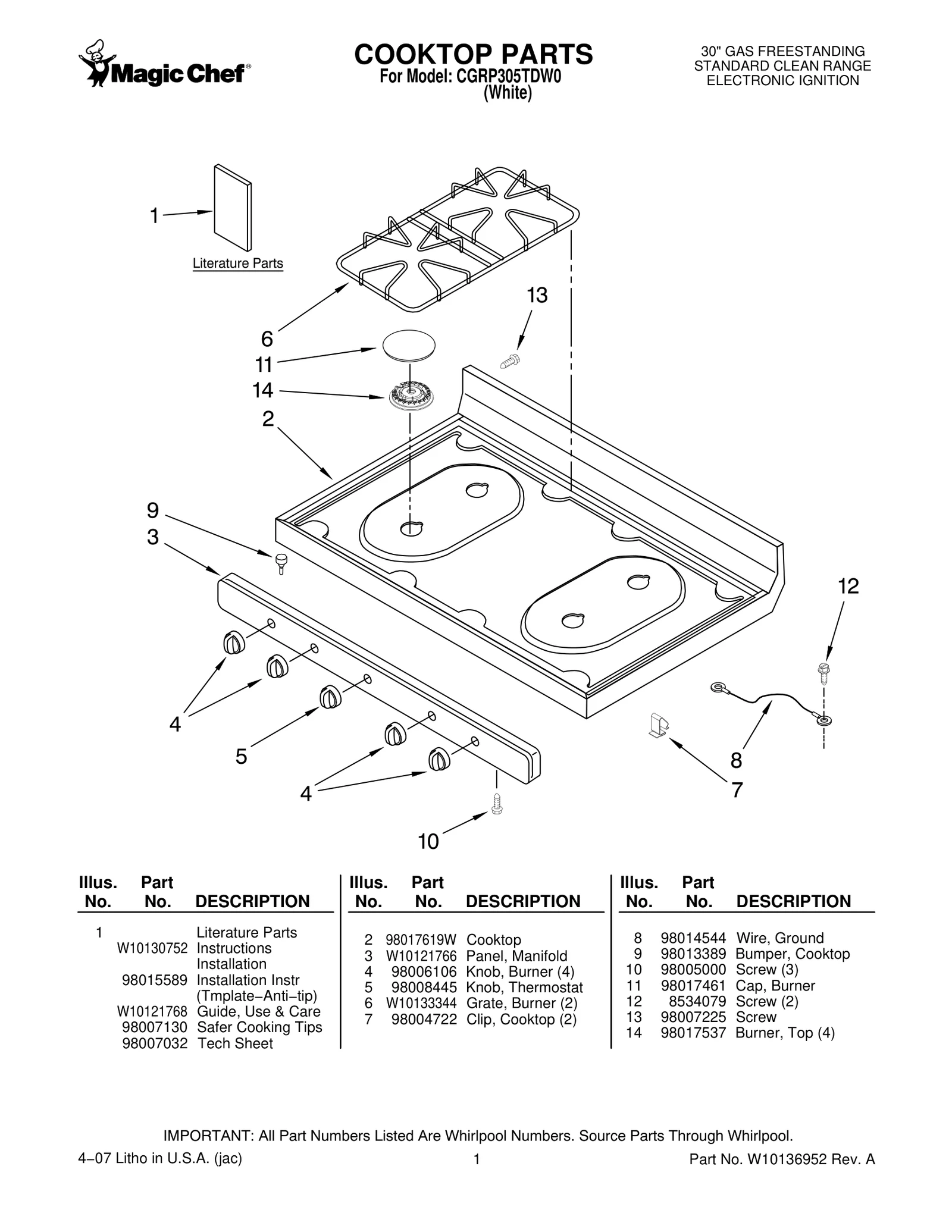

COOKTOP PARTS
Parts in COOKTOP PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10130752 Instructions Installation | - |
| 1 | – | 98015589 Installation Instr | - |
| 1 | – | W10121768 Guide, Use & Care | - |
| 1 | – | 98007130 Safer Cooking Tips | - |
| 1 | – | 98007032 Tech Sheet | - |
| 2 |  | WP98017619Wreplaces 98017619W Cooktop | - |
| 3 | – | W10121766 Panel, Manifold | - |
| 4 | – | 98006106 Knob, Burner (4) | - |
| 5 | – | 98008445 Knob, Thermostat | - |
| 6 |  | WPW10180089replaces W10133344 Grate, Burner (2) | $61.30 RepairClinic |
| 7 |  | W11229684replaces 98004722 Clip, Cooktop (2) | $6.02 Parts Dr |
| 8 |  | 3184020replaces 98014544 Wire, Ground | $50.57 ApplianceParts Pro |
| 9 |  | W10831827replaces 98013389 Bumper, Cooktop | $10.33 Parts Dr |
| 10 |  | W11233072replaces 98005000 Screw (3) | $8.78 Part Advantage |
| 11 |  | WP98017461replaces 98017461 Cap, Burner | $30.42 Part Advantage |
| 12 |  | W10850756replaces 8534079 Screw (2) | $5.00 RepairClinic |
| 13 |  | WP98007225replaces 98007225 Screw | $3.74 Parts Dr |
| 14 |  | WP98017537replaces 98017537 Burner, Top (4) | $33.99 Parts Dr |
