Model
Whirlpool DK524Q1ASS0
Drawer Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
DK524Q1ASS0Drawer Dishwasher
6 diagrams111 parts

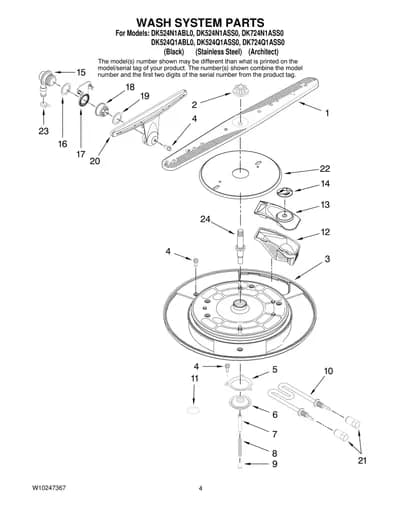

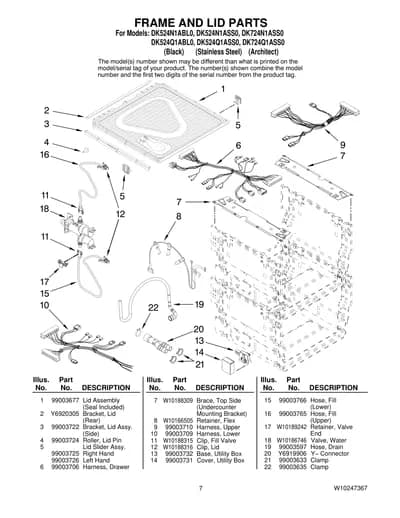

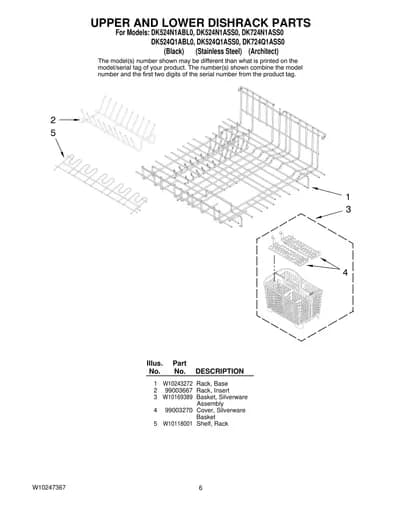

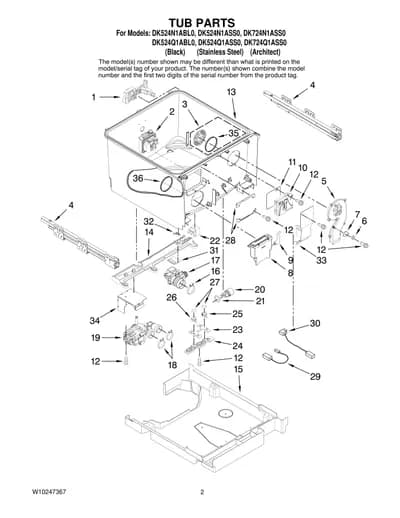

Parts Sections (6)
Diagram

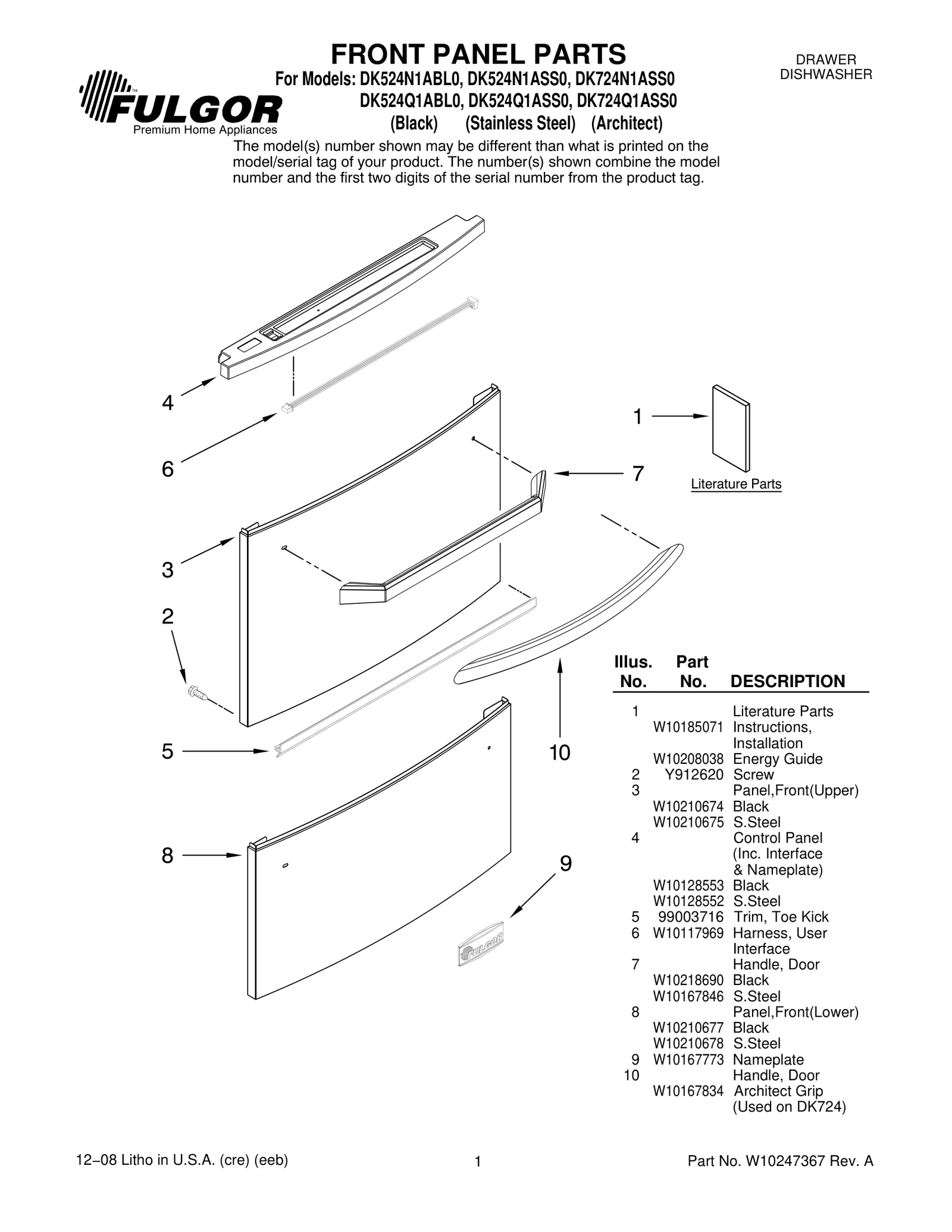

FRONT PANEL PARTS
Parts in FRONT PANEL PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10185071 Instructions, Installation | - |
| 1 | – | W10208038 Energy Guide | - |
| 2 |  | WPY912620replaces Y912620 Screw | $7.47 PartSelect |
| 3 | – | W10210674 Panel,Front(Upper) — Black | - |
| 3 | – | W10210675 Panel,Front(Upper) — S.Steel | - |
| 4 |  | W10128553NLA Control Panel (Inc. Interface & Nameplate) — Black | Discontinued |
| 4 | | W10128552NLA Control Panel (Inc. Interface & Nameplate) — S.Steel | Discontinued |
| 5 | | 99003716NLA Trim, Toe Kick | Discontinued |
| 6 |  | Harness, User Interface | - |
| 7 | – | W10218690 Handle, Door — Black | - |
| 7 | – | W10167846 Handle, Door — S.Steel | - |
| 8 | – | W10210677 Panel,Front(Lower) — Black | - |
| 8 | – | W10210678 Panel,Front(Lower) — S.Steel | - |
| 9 | – | W10167773 Nameplate | - |
| 10 | – | W10167834 Handle, Door — Architect Grip | - |
