Model
Whirlpool DU018DWTQ0
18" Undercounter Dishwasher
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
DU018DWTQ018" Undercounter Dishwasher
7 diagrams109 parts
Parts Sections (7)
Diagram

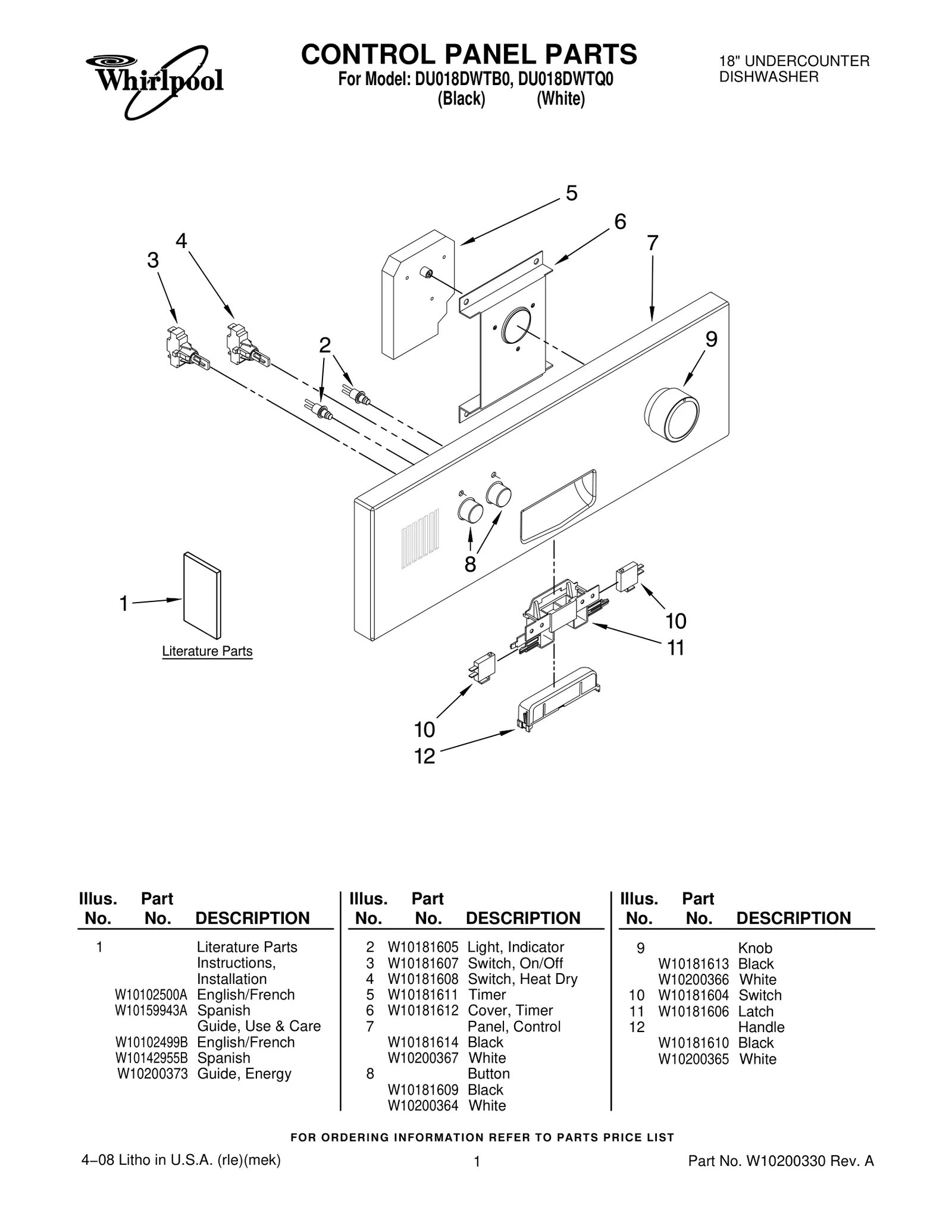

CONTROL PANEL PARTS
Parts in CONTROL PANEL PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10102500A Instructions, Installation — English/French | - |
| 1 | – | W10159943A Instructions, Installation — Spanish | - |
| 1 | – | W10102499B Instructions, Installation — English/French | - |
| 1 | – | W10142955B Instructions, Installation — Spanish | - |
| 1 | – | W10200373 Guide, Energy | - |
| 2 |  | Light, Indicator | - |
| 3 | | W10181607NLA Switch, On/Off | Discontinued |
| 4 | | Switch, Heat Dry | - |
| 5 | | W10181611NLA Timer | Discontinued |
| 6 | – | W10181612 Cover, Timer | - |
| 7 | – | W10181614 Panel, Control — Black | - |
| 7 | | Panel, Control — White | - |
| 8 |  | Button — Black | $4.84 RepairClinic |
| 8 | | Button — White | - |
| 9 | | Knob — Black | - |
| 9 | | Knob — White | $25.68 Parts Dr |
| 10 |  | Switch | $24.67 PartSelect |
| 11 | | W10181606NLA Latch | Discontinued |
| 12 | | Handle — Black | - |
| 12 | | Handle — White | - |
