Model
Whirlpool DU1061XTST0
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
DU1061XTST0Undercounter Dishwasher
12 diagrams168 parts

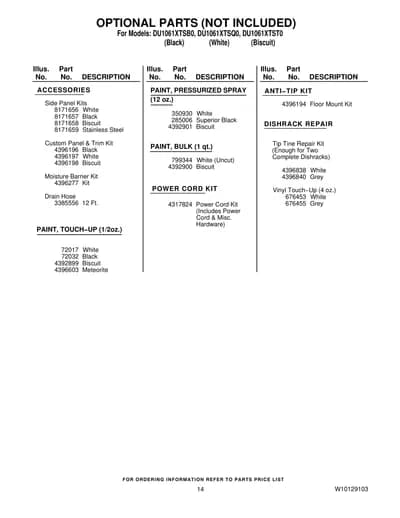

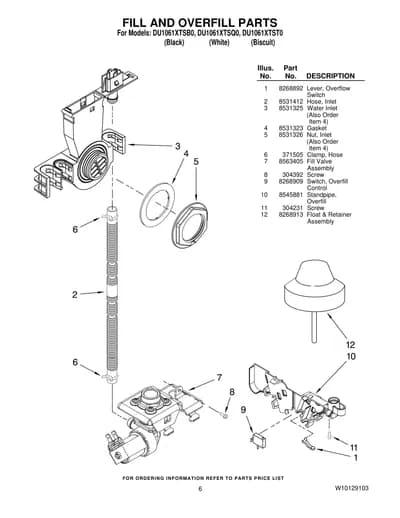

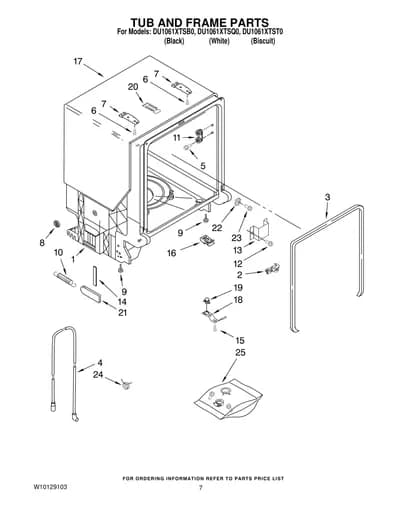

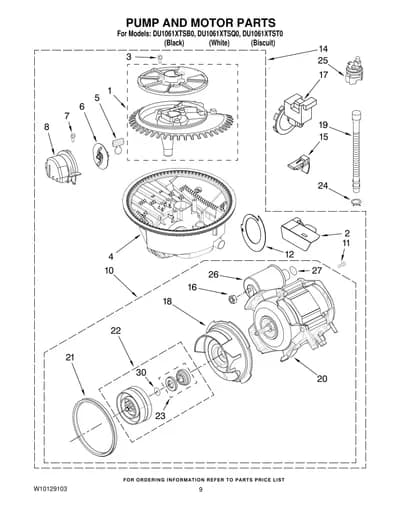

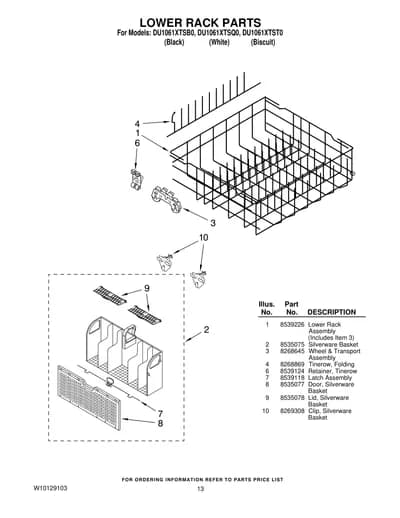

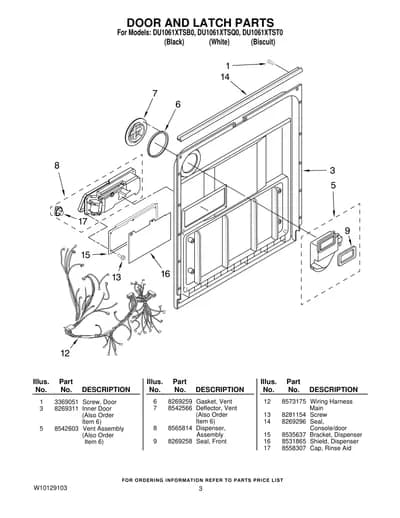

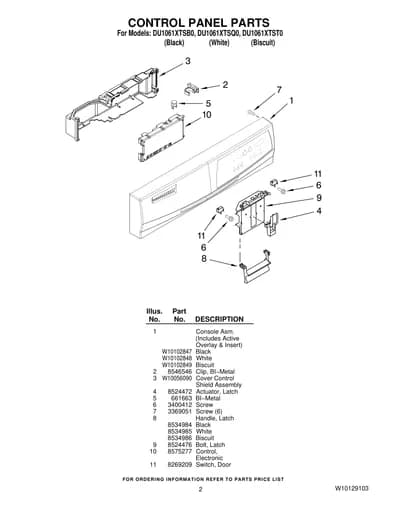

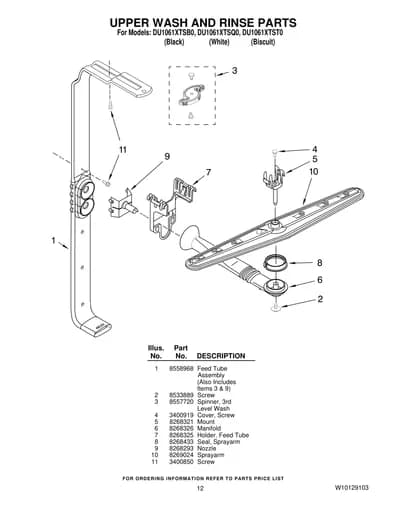

Parts Sections (12)

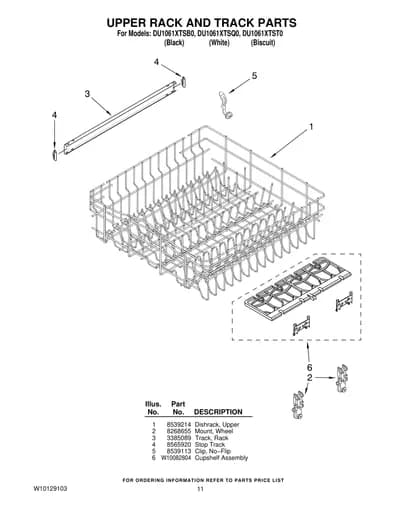

Diagram

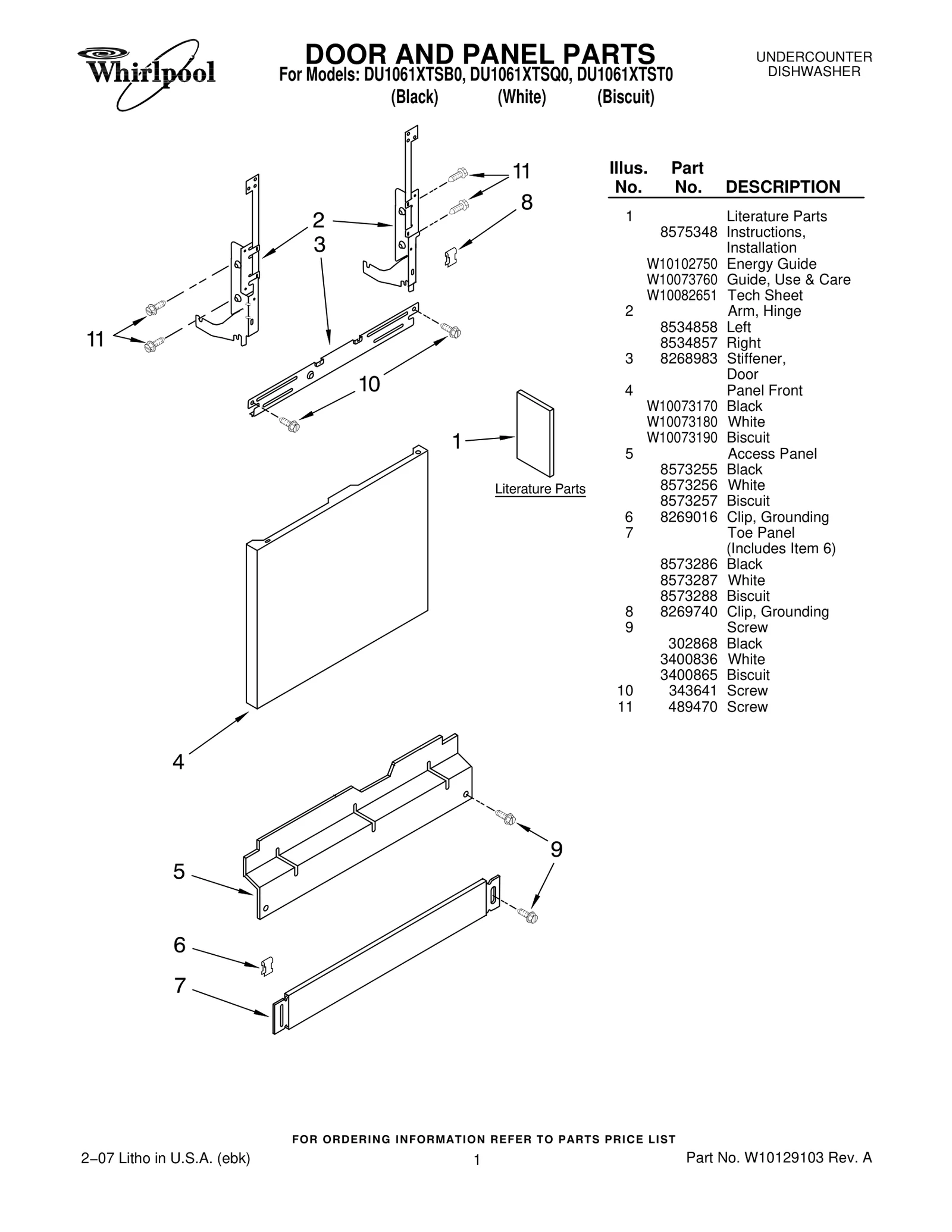

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8575348 Instructions, Installation | - |
| 1 | – | W10102750 Energy Guide | - |
| 1 | – | W10073760 Guide, Use & Care | - |
| 1 | – | W10082651 Tech Sheet | - |
| 2 |  | W11613573replaces 8534858 Arm, Hinge — Left | $41.95 ApplianceParts Pro |
| 2 |  | W11613572replaces 8534857 Arm, Hinge — Right | $33.01 Parts Dr |
| 3 |  | 8268983NLA Stiffener, Door | Discontinued |
| 4 | | W10073170NLA Panel Front — Black | Discontinued |
| 4 | | W10073180NLA Panel Front — White | Discontinued |
| 4 | | W10073190NLA Panel Front — Biscuit | Discontinued |
| 5 |  | W11763736replaces 8573255 Access Panel — Black | $16.47 Part Advantage |
| 5 | | Access Panel — White | - |
| 5 |  | W10871198replaces 8573257 Access Panel — Biscuit | - |
| 6 |  | WP8269016replaces 8269016 Clip, Grounding | $6.90 RepairClinic |
| 7 |  | W10871196replaces 8573286 Toe Panel — Black | $66.43 Amazon |
| 7 |  | WP8573287replaces 8573287 Toe Panel — White | $74.95 ApplianceParts Pro |
| 7 | | Toe Panel — Biscuit | - |
| 8 | | Clip, Grounding | - |
| 9 |  | WP302868replaces 302868 Screw — Black | $2.30 Part Advantage |
| 9 |  | WPW10503549replaces 3400836 Screw — White | $2.22 Part Advantage |
| 9 |  | WPW10503550replaces 3400865 Screw — Biscuit | $22.41 ApplianceParts Pro |
| 10 |  | WP681414replaces 343641 Screw | $2.30 Part Advantage |
| 11 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
