Model
Whirlpool DU895SWPU0
Undercounter Dishwasher
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
DU895SWPU0Undercounter Dishwasher
7 diagrams162 parts
Parts Sections (7)
Diagram

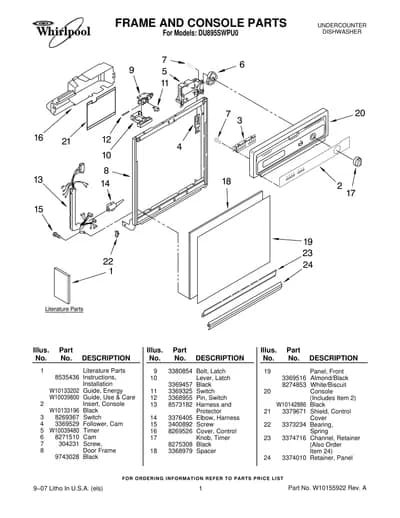

FRAME AND CONSOLE PARTS
Parts in FRAME AND CONSOLE PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8535436 Instructions, Installation | - |
| 1 | – | W10133202 Guide, Energy | - |
| 1 | – | W10039800 Guide, Use & Care | - |
| 2 | – | W10133196 Insert, Console — Black | - |
| 3 | – | 8269367 Switch | - |
| 4 |  | WP3369529replaces 3369529 Follower, Cam | $30.59 Parts Dr |
| 5 |  | WPW10199587replaces W10039480 Timer | $167.15 Parts Dr |
| 6 |  | WP8271510replaces 8271510 Cam | $1.68 RepairClinic |
| 7 |  | WP304231replaces 304231 Screw, | $5.00 RepairClinic |
| 8 |  | WP9743028replaces 9743028 Door Frame — Black | - |
| 9 |  | WP3380854replaces 3380854 Bolt, Latch | $32.72 Part Advantage |
| 10 | | 3369457NLA Lever, Latch — Black | Discontinued |
| 11 |  | Switch | Discontinued |
| 12 | | Pin, Switch | Discontinued |
| 13 | – | 8573182 Harness and Protector | - |
| 14 |  | Elbow, Harness | $12.95 ApplianceParts Pro |
| 15 |  | WP3400892replaces 3400892 Screw | $3.72 Parts Dr |
| 16 | – | 8269526 Cover, Control | - |

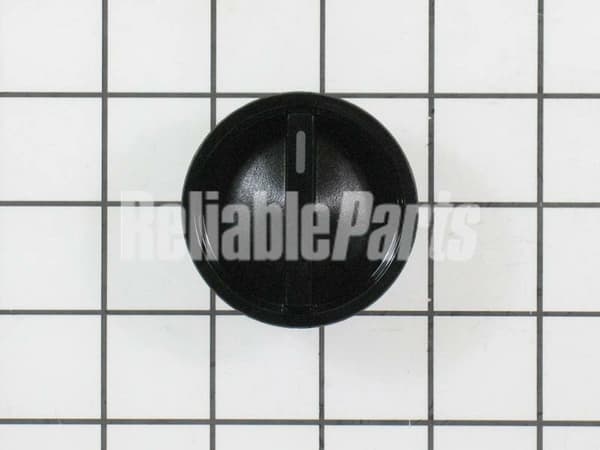

| 17 |  | Knob, Timer — Black | $43.15 Parts Dr |
| 18 | | 3368979NLA Spacer | Discontinued |
| 19 |  | WP3369769replaces 3369516 Panel, Front — Almond/Black | $16.27 Part Advantage |
| 19 | | WP3369769replaces 8274853 Panel, Front — White/Biscuit | $16.27 Part Advantage |
| 20 | | Console — Black | - |
| 21 | | Shield, Control Cover | - |
| 22 |  | WP3373234replaces 3373234 Bearing, Spring | $6.95 ApplianceParts Pro |
| 23 |  | WP3374716replaces 3374716 Channel, Retainer (Also Order Item 24) | $53.95 ApplianceParts Pro |
| 24 |  | Retainer, Panel | Discontinued |
