Model
Whirlpool DW324K1ASS0
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
DW324K1ASS0Undercounter Dishwasher
12 diagrams174 parts

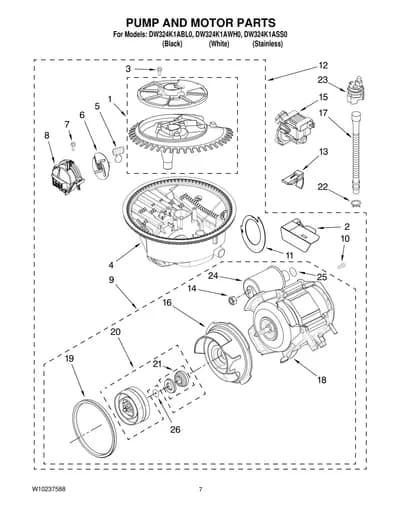

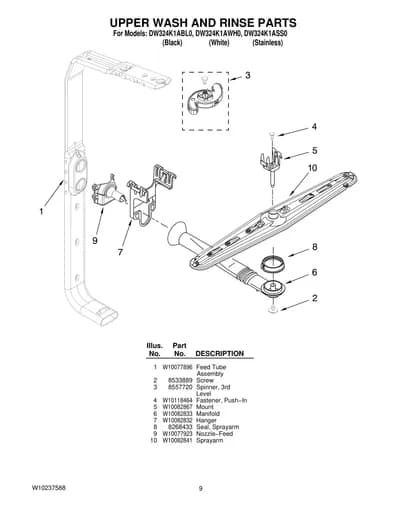

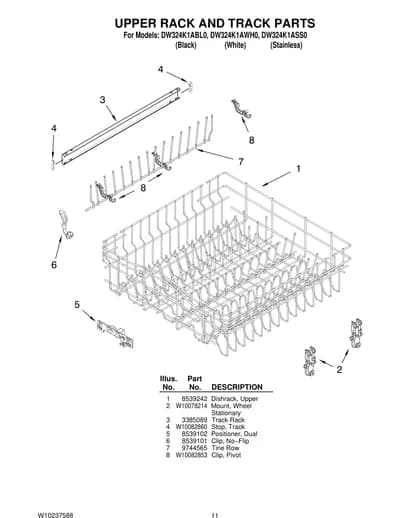

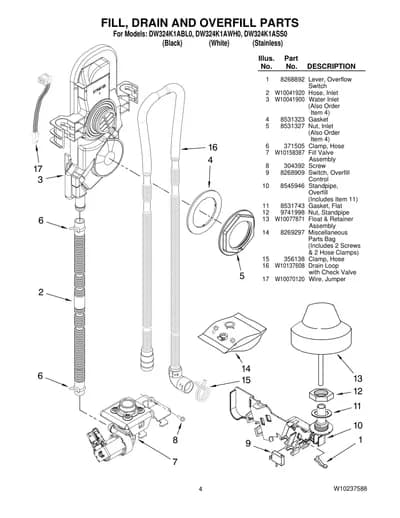

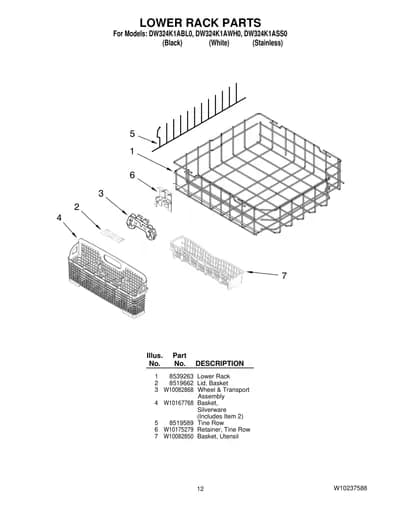

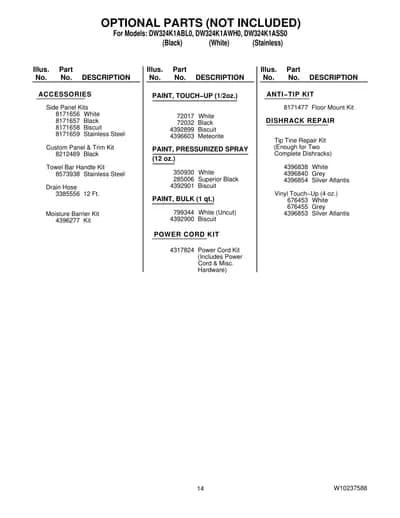

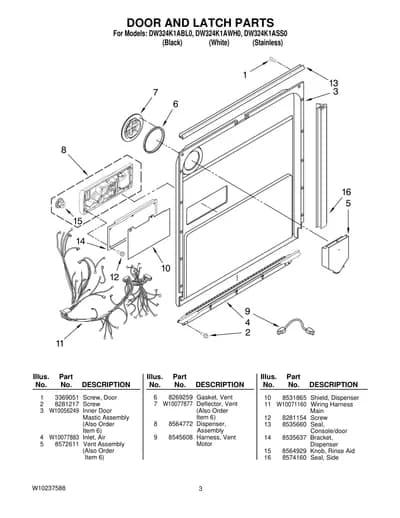

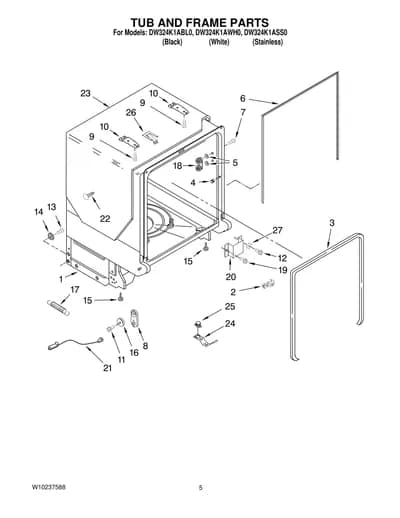

Parts Sections (12)
Diagram

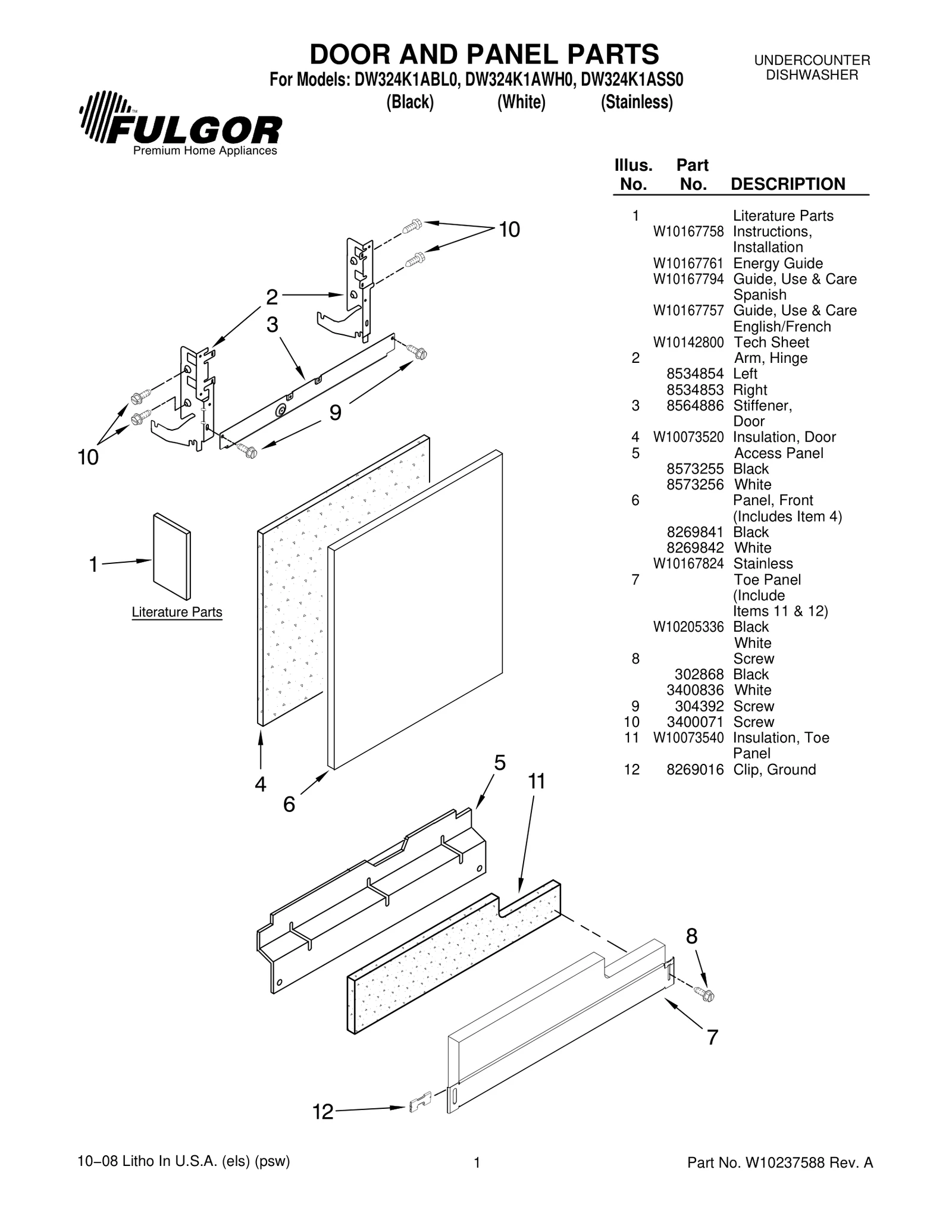

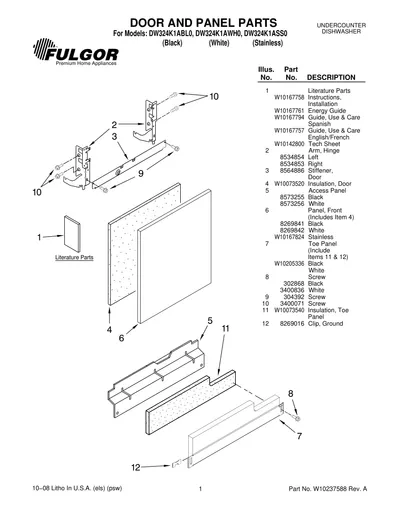

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10167758 Instructions, Installation | - |
| 1 | – | W10167761 Energy Guide | - |
| 1 | – | W10167794 Guide, Use & Care Spanish | - |
| 1 | – | W10167757 Guide, Use & Care English/French | - |
| 1 | – | W10142800 Tech Sheet | - |
| 2 |  | W11612302replaces 8534854 Arm, Hinge — Left | $77.34 PartSelect |
| 2 |  | W11612303replaces 8534853 Arm, Hinge — Right | $60.05 Part Advantage |
| 3 |  | 8564886NLA Stiffener, Door | Discontinued |
| 4 |  | WPW10073520replaces W10073520 Insulation, Door | $50.57 ApplianceParts Pro |
| 5 |  | W11763736replaces 8573255 Access Panel — Black | $16.47 Part Advantage |
| 5 | | Access Panel — White | - |
| 6 |  | W10301571replaces 8269841 Panel, Front — Black | $158.95 ApplianceParts Pro |
| 6 | | 8269842NLA Panel, Front — White | Discontinued |
| 6 | – | W10167824 Panel, Front — Stainless | - |
| 7 |  | W10871196replaces W10205336 Toe Panel (Include Items 11 & 12) — Black | $66.43 Amazon |
| 8 |  | WP302868replaces 302868 Screw — Black | $2.30 Part Advantage |
| 8 |  | WP3400836replaces 3400836 Screw — White | $2.30 Part Advantage |
| 9 |  | WP489069replaces 304392 Screw | $2.30 Part Advantage |
| 10 |  | WP3400071replaces 3400071 Screw | $2.30 Part Advantage |
| 11 |  | W10831329replaces W10073540 Insulation, Toe Panel | $15.72 Part Advantage |
| 12 |  | WP8269016replaces 8269016 Clip, Ground | $6.90 RepairClinic |
