Model
Estate EED4400TQ0
29" Electric Dryer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelEstate
EED4400TQ029" Electric Dryer
4 diagrams117 parts
Parts Sections (4)
Diagram

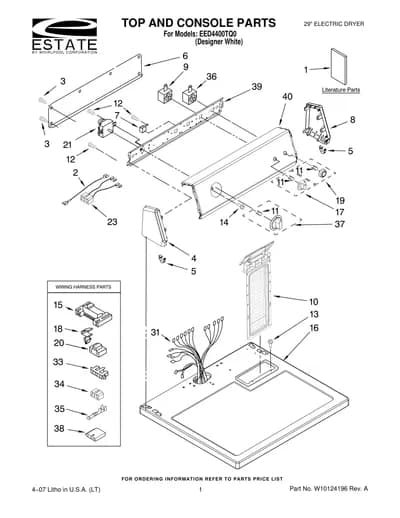

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10088970 Instructions | - |
| 1 | – | W10118621 Guide, Use & Care | - |
| 1 | – | 8576817 Wiring Diagram | - |
| 1 | – | W10118620 Sheet, | - |
| 1 |  | 677818NLA Dryer | Discontinued |
| 2 | | Wire, Jumper | - |
| 3 |  | WP489069replaces 693995 Screw, Hex Head | $2.30 Part Advantage |
| 4 | | 8579674NLA Cap, End (L.H.) | Discontinued |
| 5 |  | WP8312709replaces 8312709 Clip−Console | $7.96 Part Advantage |
| 6 |  | W10103406replaces 8274261 Panel, Rear Console | - |
| 7 |  | WP694419replaces 694419 Buzzer, Mini | $71.95 ApplianceParts Pro |
| 8 | | 8579673NLA Cap, End (R.H.) | Discontinued |

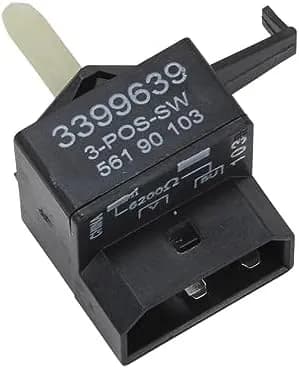

| 9 |  | WP3399639replaces 3399639 Switch, Temperature | $31.25 Part Advantage |
| 10 |  | W11778253replaces 8558463 Screen, Lint | $32.05 Part Advantage |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 |  | 3400859replaces 8533951 Screw, Grounding | $6.10 RepairClinic |
| 15 |  | Connector | $40.40 ApplianceParts Pro |
| 16 |  | WP8563663replaces 8559800 Top | $101.61 Part Advantage |
| 17 |  | WPW10110063replaces W10110063 Knob, Control (1) | - |
| 18 |  | WP3394427replaces 3394427 Clip−Harness | $3.38 Part Advantage |
| 19 |  | Knob, Push−To−Start | $53.20 PartSelect |
| 20 |  | Connector, | - |

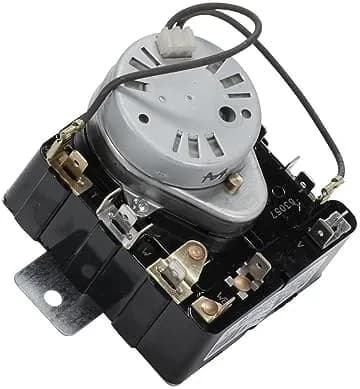

| 21 |  | WP3979617replaces 3979617 Timer, 60 Hz. | $121.62 Part Advantage |
| 23 |  | Wire, Jumper | - |

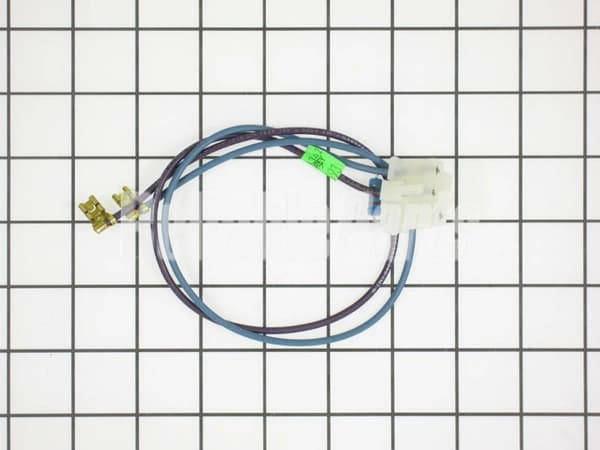

| 31 | | Harness, Wiring | - |
| 33 |  | Connector | - |
| 34 | | 3347243NLA Connector 6−Circuit | Discontinued |
| 35 |  | WP94614replaces 94614 Terminal | $4.95 ApplianceParts Pro |
| 36 |  | WP3398095replaces 3398095 Switch, Push−To−Start | $46.81 Part Advantage |
| 37 | | W10110064NLA Timer Knob Assembly | Discontinued |
| 38 |  | Connector | - |
| 39 | – | 8579672 Bracket, Control | - |
| 40 | – | W10114901 Panel, Control | - |
