Model
Estate EGD4400VQ0
29"Gas Dryer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelEstate
EGD4400VQ029"Gas Dryer
5 diagrams143 parts
Parts Sections (5)
Diagram

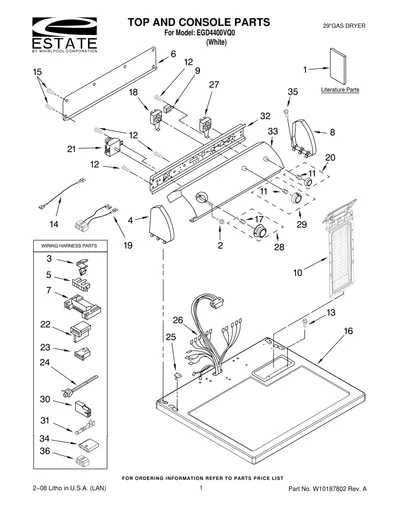

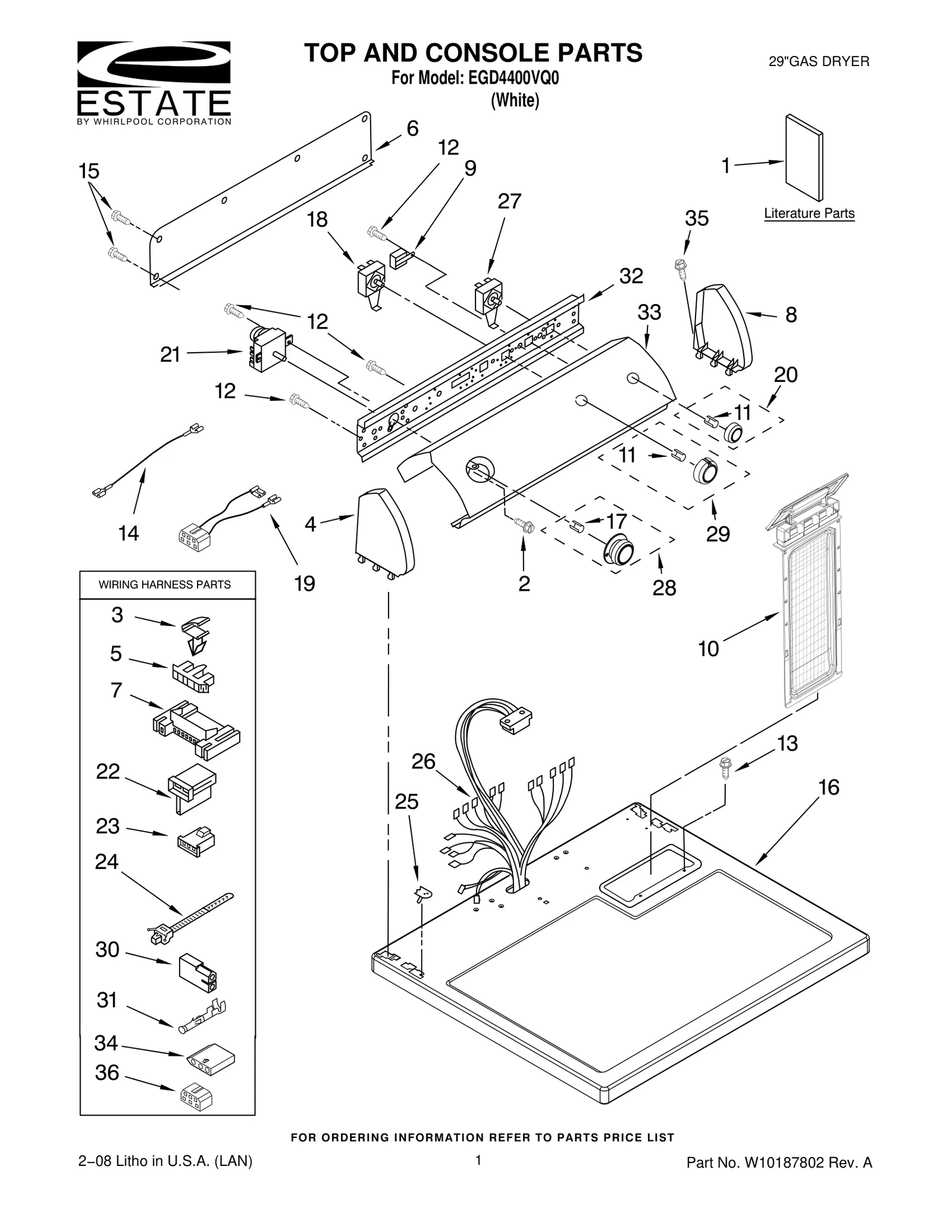

TOP AND CONSOLE PARTS
Parts in TOP AND CONSOLE PARTS
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10150630 Installation Instructions — English | - |
| 1 | – | W10150631 Installation Instructions — Spanish | - |
| 1 | – | W10118621 Installation Instructions — Use & Care Guide | - |
| 1 | – | 8576793 Installation Instructions — Wiring Diagram | - |
| 1 | – | W10118620 Sheet, Cycle Feature | - |
| 2 |  | 3400859replaces 8533951 Screw, Grounding | $6.10 RepairClinic |
| 3 |  | WP3394427replaces 3394427 Clip, Harness | $3.38 Part Advantage |
| 4 |  | 279960replaces 8274437 Cap, End (L.H.) | - |
| 5 |  | Connector | - |
| 6 |  | W10103406replaces 8274261 Panel, Rear Console | - |
| 7 |  | Housing, Connector | $40.40 ApplianceParts Pro |
| 8 | | 279960replaces 8274434 Cap, End (R.H.) | - |
| 9 |  | WP694419replaces 694419 Buzzer, Mini | $71.95 ApplianceParts Pro |
| 10 |  | W11778253replaces 8558463 Screen, Lint | $32.05 Part Advantage |
| 11 |  | WP8536939replaces 8536939 Clip, Spring | $3.55 Part Advantage |
| 12 |  | WP90767replaces 8533971 Screw, 8−18 x 5/16 | $2.30 Part Advantage |
| 13 |  | W11693756replaces 688983 Screw, 8−18 x 5/8 | $9.83 Parts Dr |
| 14 |  | Wire, Jumper | - |
| 15 |  | WP693995replaces 693995 Screw, Hex Head | $1.73 Part Advantage |
| 16 | – | 8557930 Top | - |
| 17 |  | WP688805replaces 688805 Clip | $3.55 Part Advantage |
| 18 |  | Switch, Guard | - |
| 19 | – | 8283292 Jumper Guard | - |
| 20 | | Knob, Push−To−Start | Discontinued |

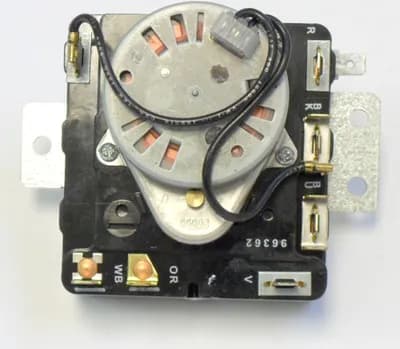

| 21 |  | WP3976584replaces 3976584 Timer Assembly | $146.91 Part Advantage |
| 22 |  | WP3403499replaces 3403499 Connector, 2−Position | $2.35 RepairClinic |
| 23 |  | WP3403498replaces 3403498 Connector, 3−Position | - |
| 24 | | Tie, Cable | - |
| 25 |  | WP357213replaces 357213 Nut, Push−In (2) | $5.95 ApplianceParts Pro |
| 26 | | Harness, Wiring | - |
| 27 |  | WP3977456replaces 3977456 Switch, Push−To−Start | $12.92 Part Advantage |
| 28 |  | WP8557455replaces 8538953 Timer Knob Assembly | $37.86 Part Advantage |
| 29 |  | WP8538957replaces 8538957 Knob, Control | $52.08 RepairClinic |
| 30 | | 717252NLA Receptacle, 2−Way | Discontinued |
| 31 |  | WP94614replaces 94614 Terminal, Female | $4.95 ApplianceParts Pro |
| 32 | | Bracket, Control | - |
| 33 | | Panel, Control | - |
| 34 |  | Connector | - |
| 35 |  | WP388326replaces 388326 Screw, Console | $5.00 RepairClinic |
| 36 | | 3347243NLA Connector, 6−Circuit | Discontinued |
