Model
Whirlpool EHL090FXRQ01
Chest Freezer
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
EHL090FXRQ01Chest Freezer
4 diagrams41 parts
Parts Sections (4)
Diagram

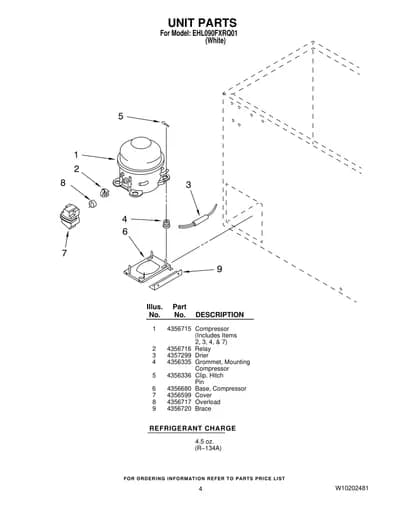

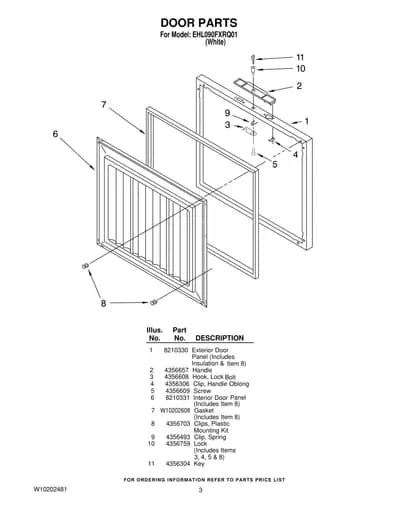

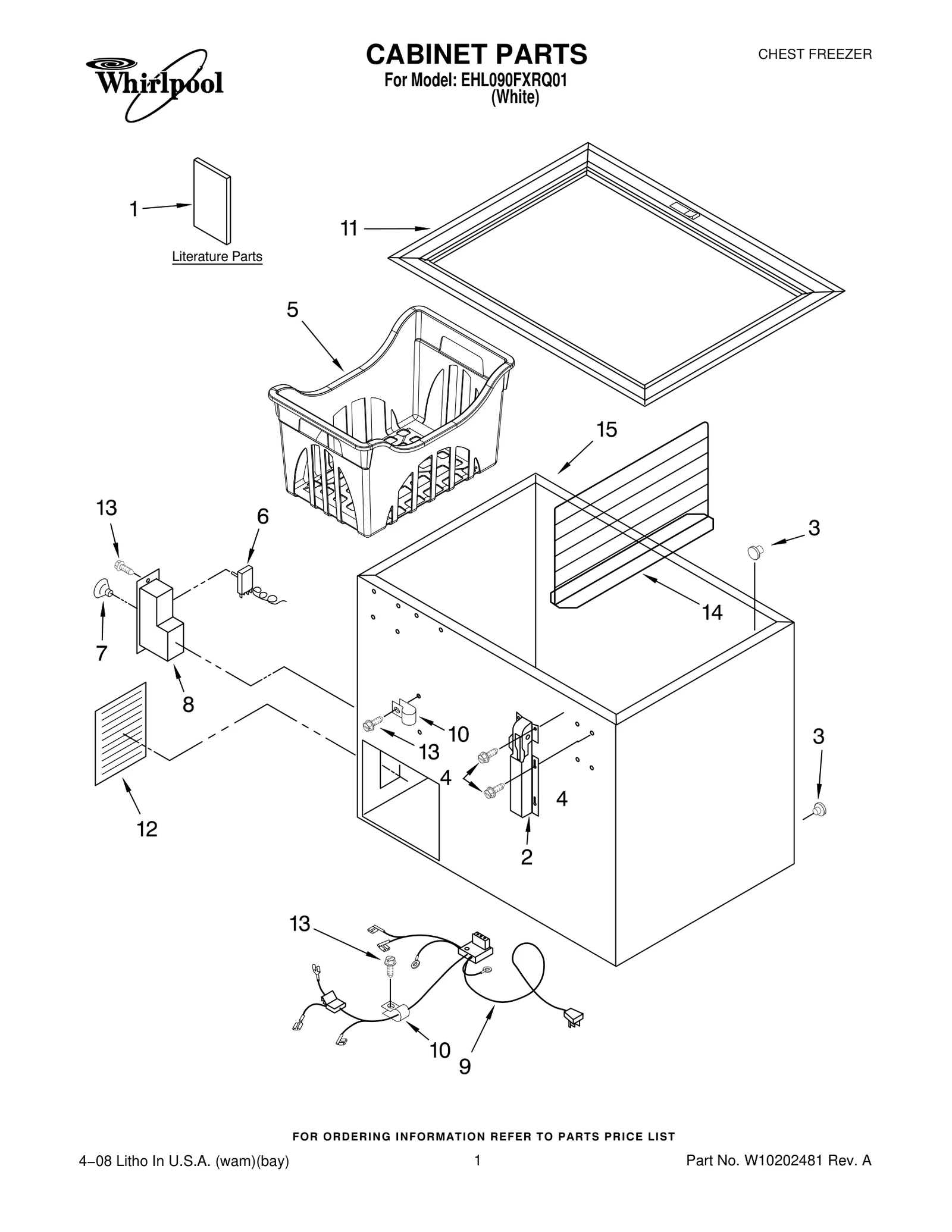

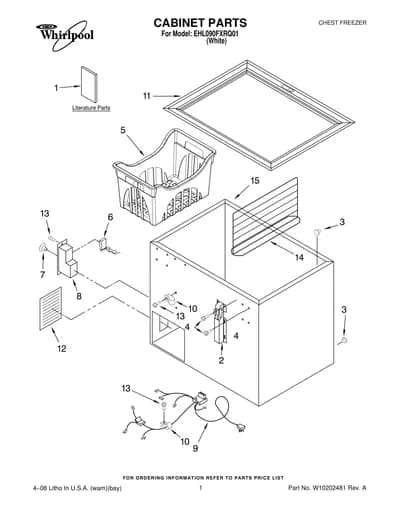

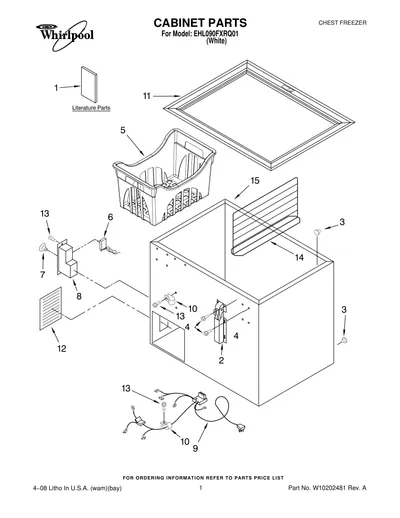

CABINET PARTS
Parts in CABINET PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10202606 Energy Guide/Tag | - |
| 1 | – | 8210431 Owners Manual | - |
| 2 | – | W10202607 Hinge Assembly — With Spring | - |
| 2 | – | 68001531 Hinge Assembly — Without Spring | - |
| 3 |  | 4356456NLA Drain Cap | Discontinued |

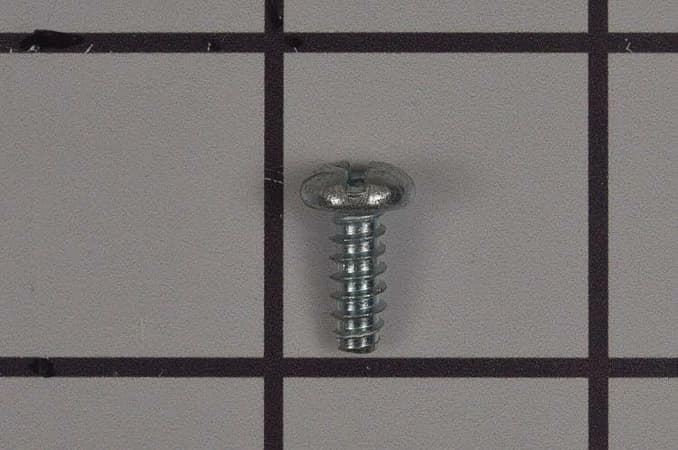

| 4 |  | Screw | - |
| 5 | | Basket (2) | - |

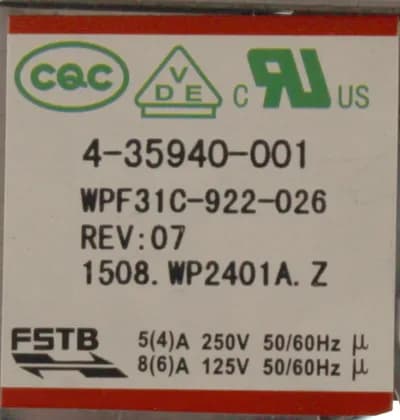

| 6 |  | WP4-35940-001replaces 8210276 Thermostat | $101.46 Part Advantage |
| 7 | – | 4356769 Knob, Thermostat | - |

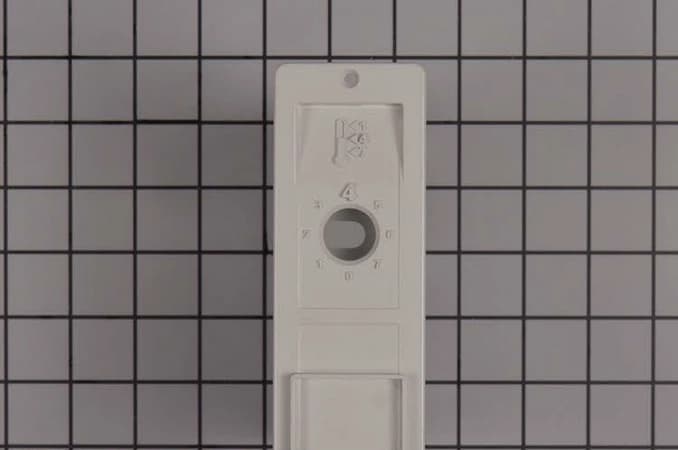

| 8 |  | W10682894replaces 8210234 Control Box | $11.88 RepairClinic |
| 9 | | Harness, External Wiring | - |
| 10 | | Clip, Plastic | - |
| 11 | – | 8210334 Breaker Trim | - |
| 12 | | Access Panel | - |
| 13 | | Screw | - |
| 14 | | Divider | - |
| 15 | – | N/S Cabinet (Not A Serviceable Part) | - |
