ModelWhirlpool
EL87TRRRS05Refrigerator
5 diagrams114 parts

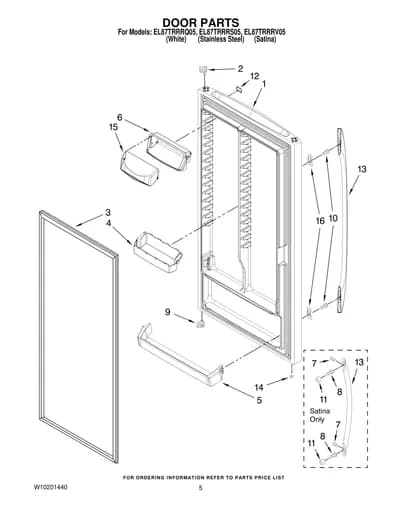

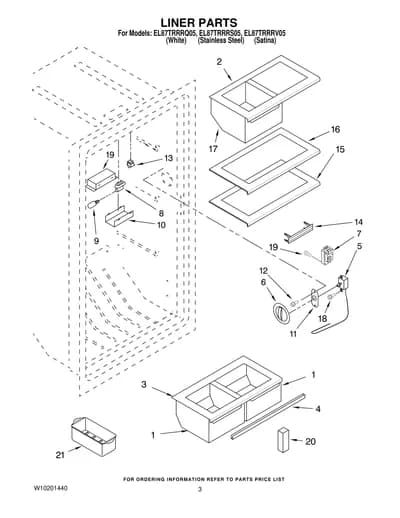

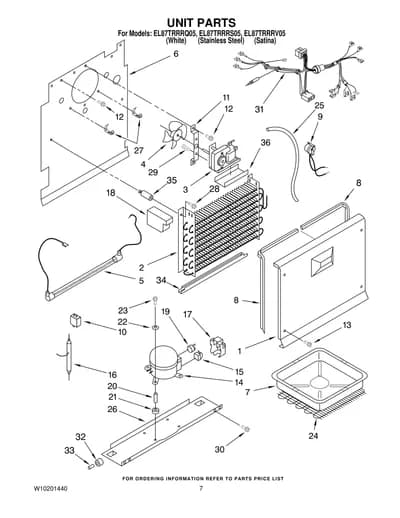

Parts Sections (5)
Diagram

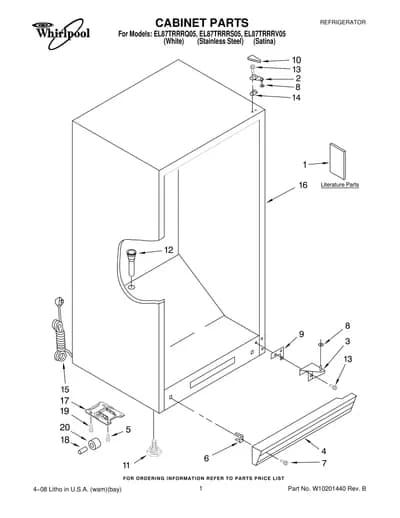

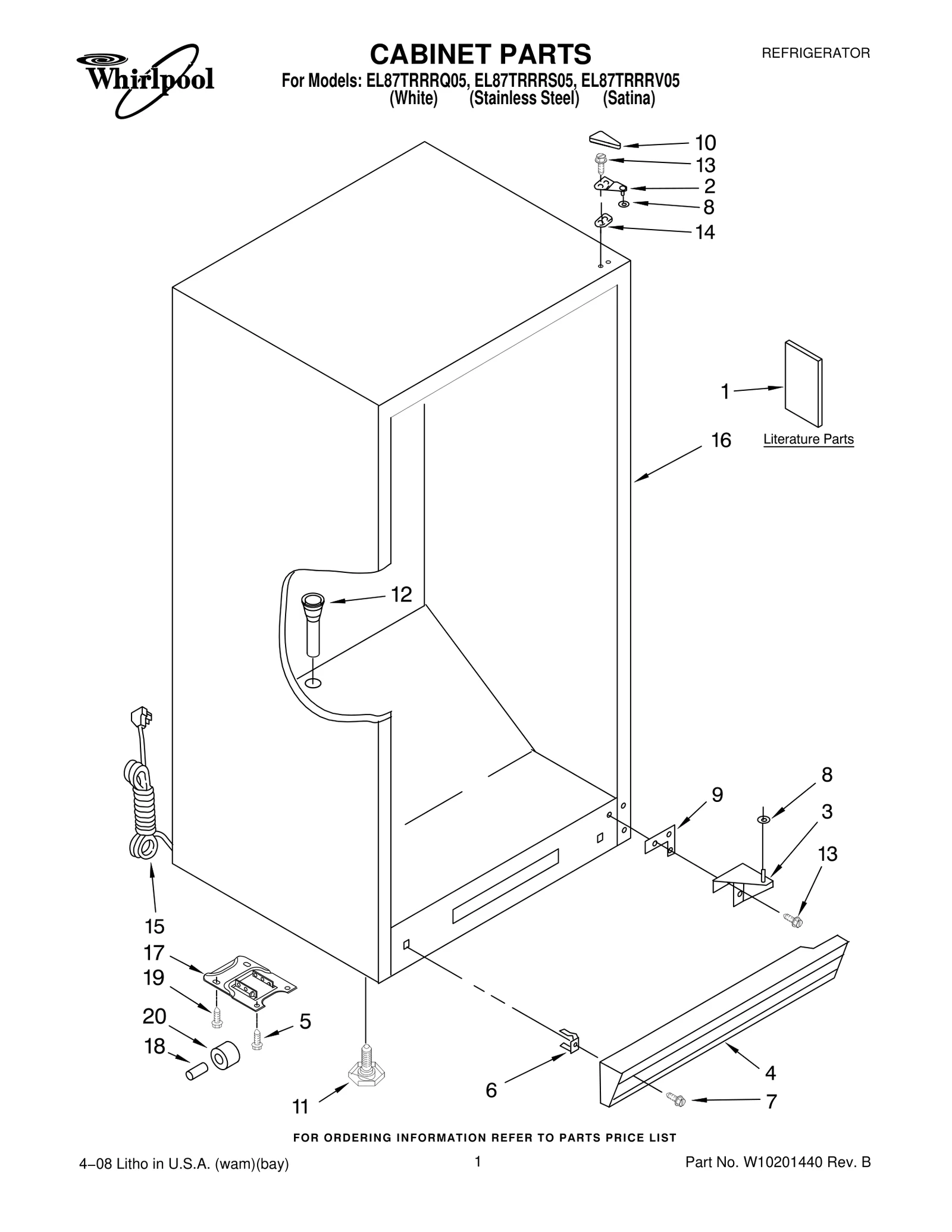

CABINET PARTS
Parts in CABINET PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8210433 Owners Manual | - |
| 1 | – | 8210378 Energy Guide/Tag | - |
| 2 |  | Top Hinge — White | - |
| 2 | | Top Hinge — Black | - |
| 3 |  | 8210238replaces W10201501 Bottom Hinge — White | $28.08 RepairClinic |
| 3 | – | 8210268 Bottom Hinge — Black | - |
| 4 |  | WP4-60461-005replaces 8210290 Grille — White | - |
| 4 | | 8210294NLA Grille — Black | Discontinued |
| 5 |  | WP3-24838-048replaces 4357277 Screw | $7.43 ApplianceParts Pro |
| 6 | | Clip, Grille | - |
| 7 |  | WP489478replaces 4357243 Screw — White | $5.00 RepairClinic |
| 7 | – | 8210262 Screw — Black | - |
| 8 |  | W10851331replaces 4390520 Washer | $2.85 RepairClinic |
| 9 | | Shim Bottom | - |
| 10 | | Cover, Hinge — White | - |
| 10 | | Cover, Hinge — Black | - |
| 11 |  | W11117769replaces 4390866 Leg, Leveller — White | $6.38 Part Advantage |
| 11 |  | WP3-82710-001replaces W10177676 Leg, Leveller — Black | $6.03 Part Advantage |
| 12 | | W10164544NLA Grommet, Drain | Discontinued |
| 13 |  | WP8204624replaces 4356830 Screw | $8.07 Part Advantage |
| 14 | | Shim, Hinge | - |
| 15 | | Power Cord | - |
| 16 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 17 | | Bracket, Roller | - |
| 18 | | Axle | - |
| 19 | | 4358067replaces 8210266 Screw | - |
| 20 | | Roller, Front | - |
