Model
Maytag EMT8002Q00
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelMaytag
EMT8002Q00Refrigerator
6 diagrams180 parts
Parts Sections (6)
Diagram

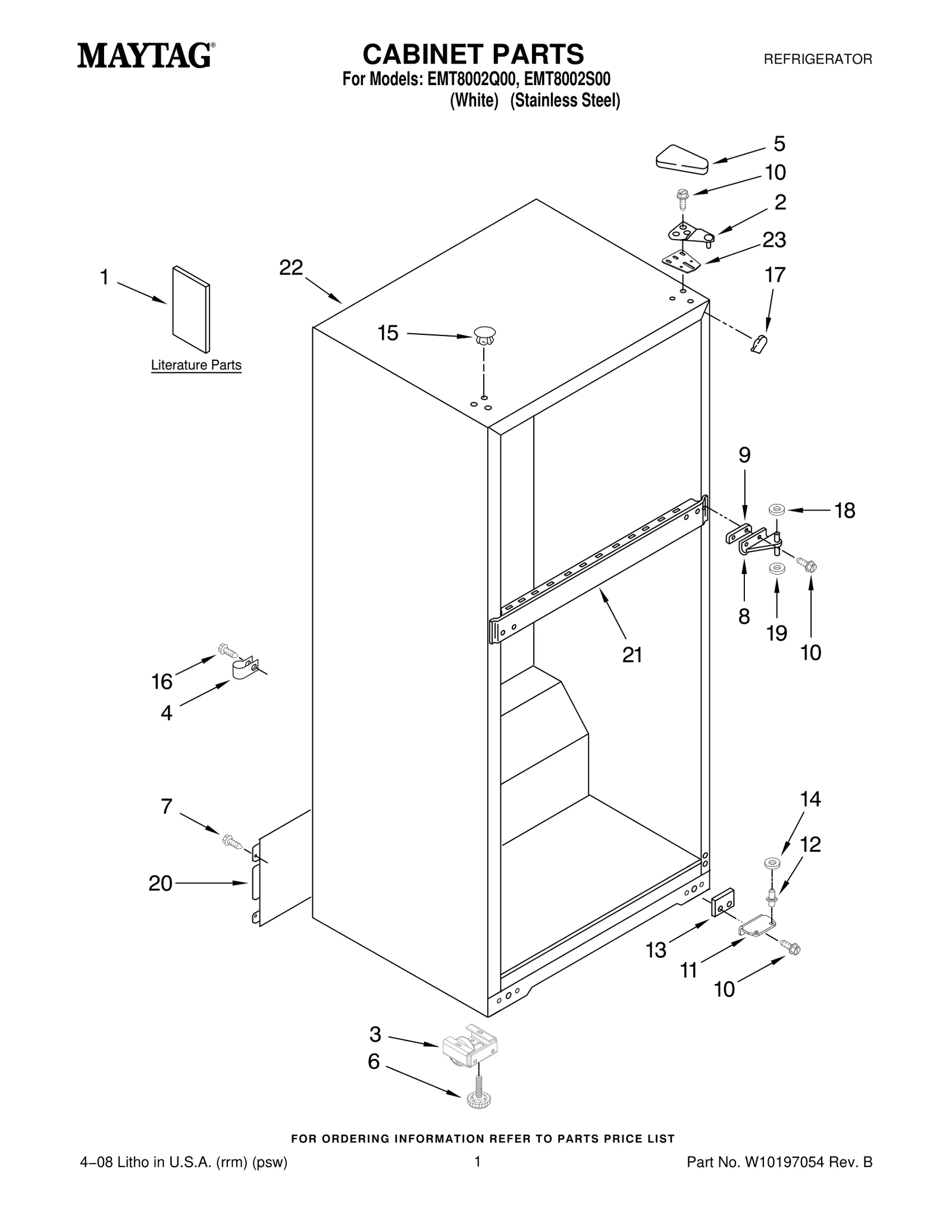

CABINET PARTS
Parts in CABINET PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 677969NLA Do−It−Yourself | Discontinued |
| 2 |  | WP2261963replaces 2261963 Hinge Butt, Top | $41.83 Part Advantage |
| 3 |  | WPW10142530replaces W10142530 Roller, Front | $43.20 Parts Dr |
| 4 |  | Clamp, Tube | - |
| 5 |  | WP2213360replaces 2213360 Cover, Hinge — White | $12.92 ApplianceParts Pro |
| 5 |  | WP2213363replaces 2213363 Cover, Hinge — Black | $11.95 ApplianceParts Pro |
| 6 |  | WPW10133299replaces W10142551 Leveler | $8.18 RepairClinic |
| 7 |  | WP489442replaces 489442 Screw | $7.95 ApplianceParts Pro |
| 8 |  | WP2166037replaces 2166086 Hinge, Center | $49.72 Part Advantage |
| 9 |  | Shim, Hinge — White | $26.61 Parts Dr |
| 9 |  | Shim, Hinge — Black | - |
| 10 |  | WP489497replaces 489497 Screw | $4.19 Part Advantage |
| 11 |  | WP2325482replaces 2325482 Hinge Butt, Btm | $33.11 Parts Dr |
| 12 |  | WP2325483replaces 2325483 Hinge−Pin, Btm | $3.38 Part Advantage |
| 13 |  | WP2201567replaces 2201567 Shim, Bottom Hinge | $5.95 ApplianceParts Pro |
| 14 |  | WP487576replaces 487576 Washer | $4.19 Part Advantage |
| 15 |  | WP2151652replaces 2201012 Hole Plug (6) — White | $7.50 Part Advantage |
| 15 |  | WP2183998replaces 2183998 Hole Plug (6) — Black | $10.75 ApplianceParts Pro |
| 16 | | WP489442replaces 489442 Screw | $7.95 ApplianceParts Pro |
| 17 |  | W10859322replaces 2166003 Corner Filler — White | $9.57 ApplianceParts Pro |
| 17 |  | W11500943replaces 2215384 Corner Filler — Black | $3.62 Parts Dr |
| 18 |  | WP489467replaces 489341 Washer | $4.20 Part Advantage |
| 19 |  | WP487802replaces 487802 Washer 7/64 | $2.30 Part Advantage |
| 20 | | Cover, Unit | - |
| 21 | – | N/S Rail, Center | - |
| 22 | – | N/S Cabinet (Not a Serviceable Part) | - |
| 23 |  | W11169703replaces 2221885 Shim−Hinge−Top | $14.95 ApplianceParts Pro |
