Model
Estate ETW4400WQ0
Automatic Washer
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelEstate
ETW4400WQ0Automatic Washer
9 diagrams206 parts
Parts Sections (9)
Diagram

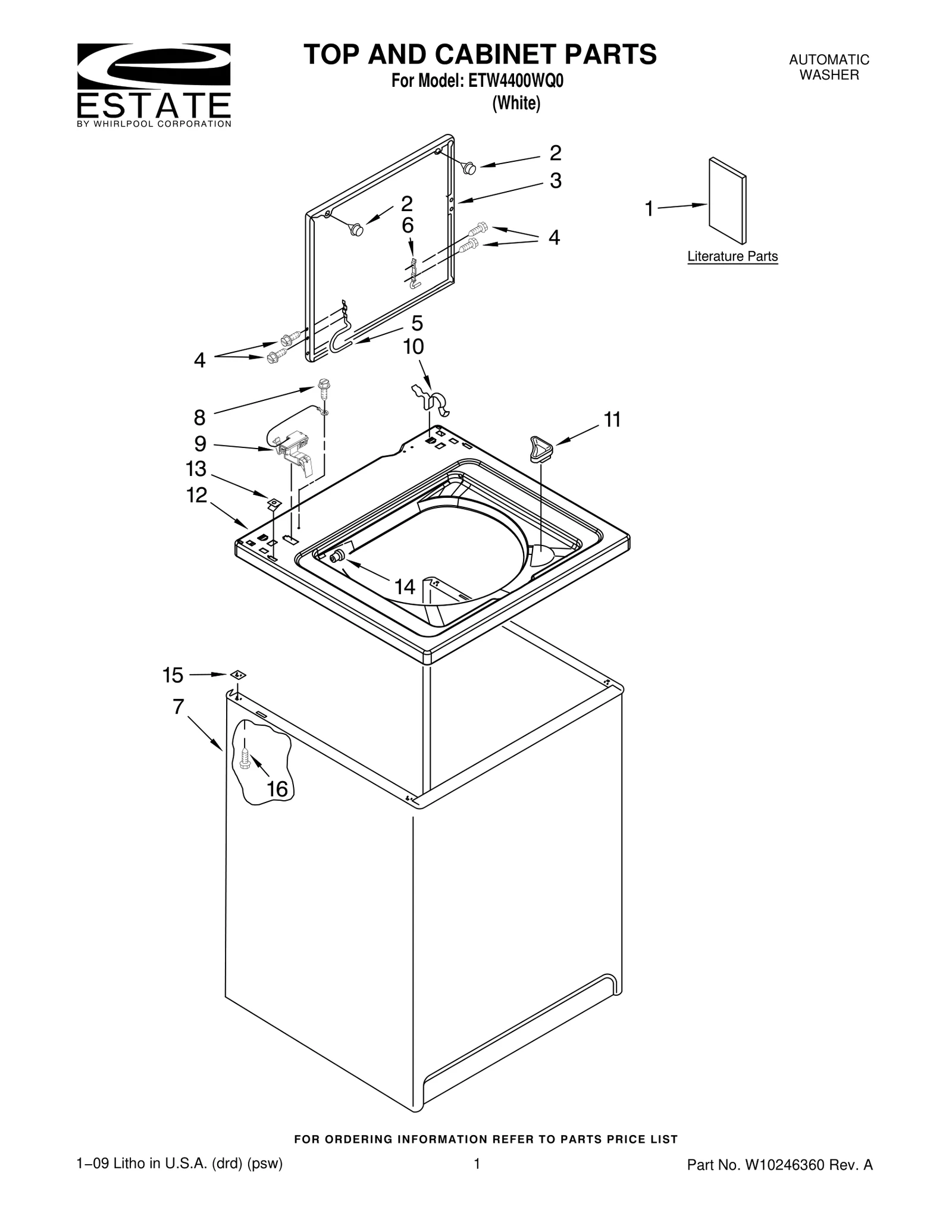

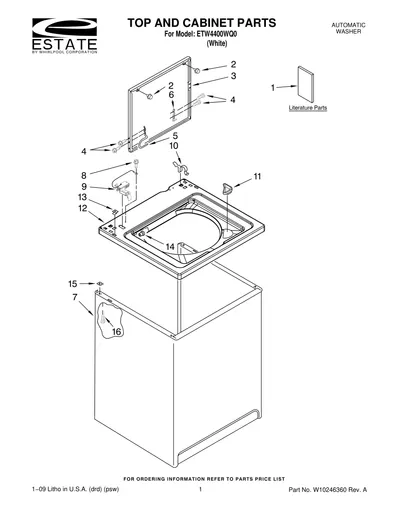

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10200331 Installation Instructions — English/French | - |
| 1 | – | W10200662 Installation Instructions — Spanish | - |
| 1 | – | W10150642 Installation Instructions — English/French | - |
| 1 | – | W10150643 Installation Instructions — Spanish | - |
| 1 | – | W10200843 Installation Instructions — English/French | - |
| 1 | – | W10200844 Installation Instructions — Spanish | - |
| 1 | – | W10062895 Installation Instructions — Energy Guide | - |
| 1 | – | W10199994 Installation Instructions — Wiring Diagram | - |
| 2 |  | WP9724509replaces 9724509 Bumper, Lid (2) | $2.41 Part Advantage |
| 3 |  | WPW10193857replaces 8541774 Lid | $211.09 RepairClinic |
| 4 |  | WPW10119828replaces W10119828 Screw, Lid Hinge Mounting (4) | $2.41 Part Advantage |
| 5 |  | Hinge, Lid (L.H.) | Discontinued |
| 6 |  | WP91770replaces 91770 Hinge, Lid (R.H.) | $8.06 Part Advantage |
| 7 |  | Cabinet | - |
| 8 |  | WP3351614replaces 3351614 Screw, Ground | $3.62 Parts Dr |
| 9 |  | WP8318084replaces 8318084 Switch, Lid | $18.14 Part Advantage |
| 10 |  | WP62780replaces 62780 Clip, Top & Cabinet & Rear Panel (2) | $3.55 Part Advantage |
| 11 |  | WP3362952replaces 3362952 Dispenser, Bleach | $2.93 Part Advantage |
| 12 | | 8318064NLA Top | Discontinued |
| 13 |  | WP357213replaces 357213 Nut, Push−In (2) | $5.95 ApplianceParts Pro |
| 14 |  | WP21258replaces 21258 Bearing, Lid Hinge (2) | $3.18 Part Advantage |
| 15 |  | WP62750replaces 62750 Spacer, Cabinet To Top (4) | $3.38 Part Advantage |
| 16 |  | WP3390631replaces 3390631 Screw 10−16 X 3/8 (4) | $2.30 Part Advantage |
