Model
Whirlpool EV161FZRQ02
Vertical Freezer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
EV161FZRQ02Vertical Freezer
5 diagrams65 parts
Parts Sections (5)
Diagram

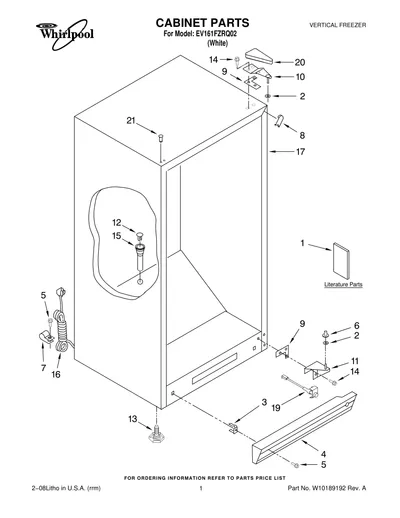

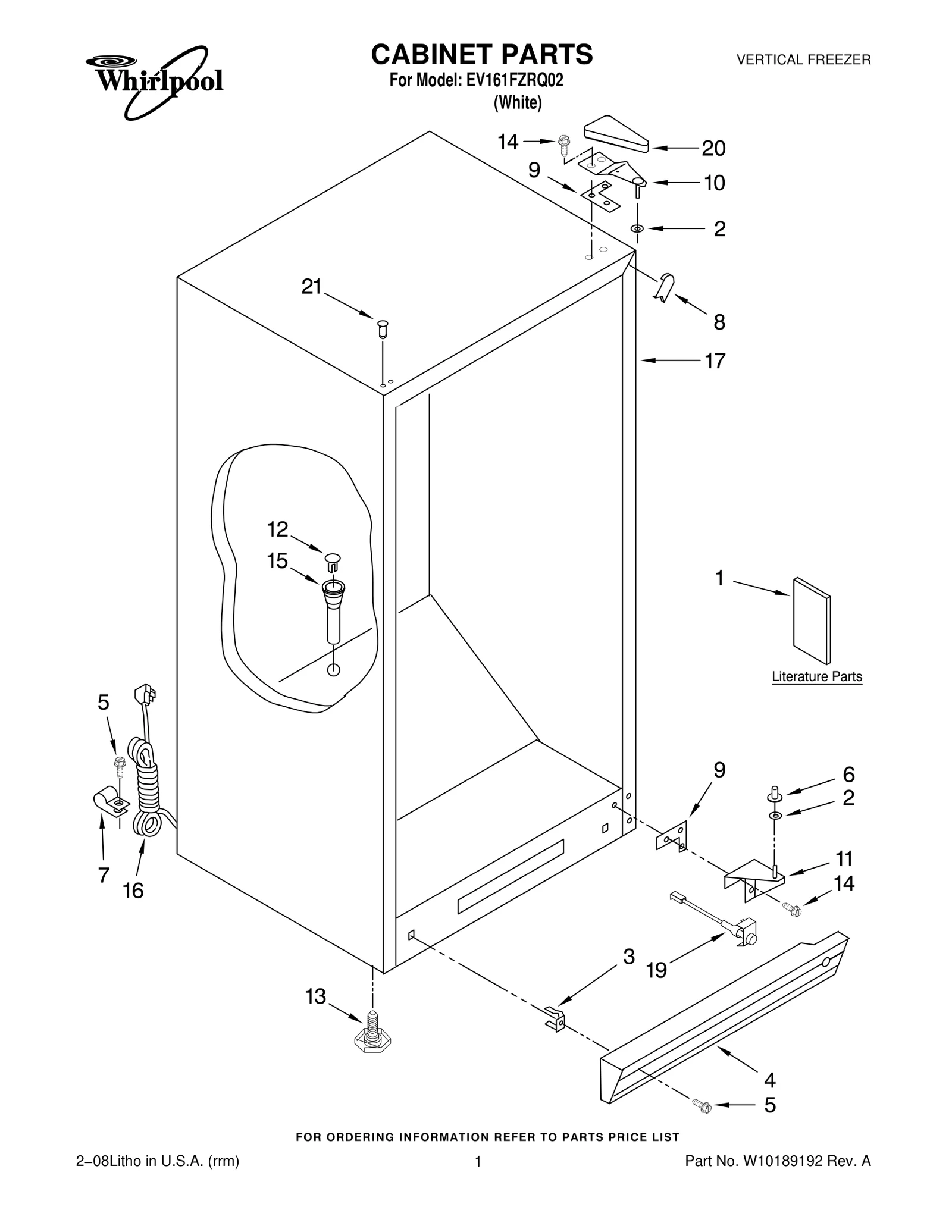

CABINET PARTS
Parts in CABINET PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8210432 Owners Manual | - |
| 1 | – | W10189193 Energy Label/Tag | - |
| 2 |  | W10851331replaces 4390520 Washer, Door Spacer | $2.85 RepairClinic |
| 3 |  | Clip, Grille | - |
| 4 | | Grille | Discontinued |
| 5 | – | 4357139 Screw | - |
| 6 |  | Bushing, Hinge | Discontinued |
| 7 | | Clamp, Tube | - |
| 8 | | Corner Filler (2) | - |
| 9 | | Shim, Bottom | - |
| 10 | | Hinge, Top | - |
| 11 |  | Hinge, Bottom | $28.08 RepairClinic |
| 12 | | 4357019NLA Drain Plug | Discontinued |
| 13 |  | W11117769replaces 4390866 Leg, Leveler | $6.38 Part Advantage |
| 14 |  | WP8204624replaces 4356830 Screw | $8.07 Part Advantage |
| 15 | | 4357269NLA Grommet, Drain | Discontinued |
| 16 | | 8210375NLA Cord, Power | Discontinued |
| 17 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 19 |  | 3-82130-001replaces 4390905 Power Light Assembly | - |
| 20 | | Cover, Hinge | - |
| 21 |  | WP2189000replaces 4390596 Plug, Hole | $4.94 Parts Dr |
