Model
Whirlpool EV187NYRQ04
Vertical Freezer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
EV187NYRQ04Vertical Freezer
5 diagrams112 parts
Parts Sections (5)
Diagram

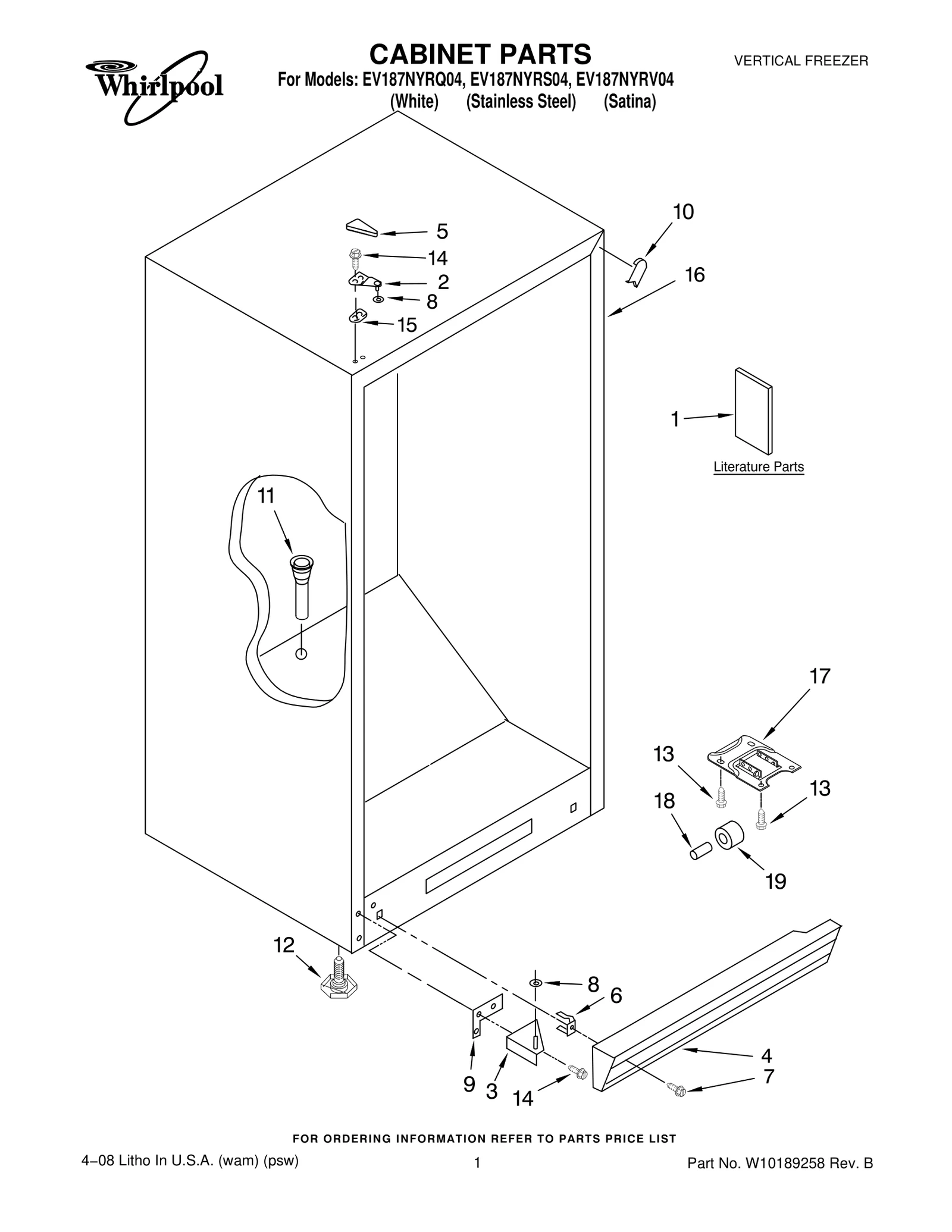

CABINET PARTS
Parts in CABINET PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8210432 Owners Manual | - |
| 1 | – | 8210345 Energy Guide/Tag | - |
| 2 |  | Top Hinge — White | - |
| 2 | | Top Hinge — Black | - |
| 3 | – | 8210223 Bottom Hinge — White | - |
| 3 | | Bottom Hinge — Black | - |
| 4 |  | WP4-60461-005replaces 8210290 Grille — White | - |
| 4 | | 8210294NLA Grille — Black | Discontinued |
| 5 | | Hinge Cover — White | - |
| 5 | | Hinge Cover — Black | - |
| 6 | | Clip, Grille | - |
| 7 |  | WP489478replaces 4357243 Screw | $5.00 RepairClinic |
| 8 |  | W10851331replaces 4390520 Washer | $2.85 RepairClinic |
| 9 | | Shim Bottom | - |
| 10 | | Filler, Corner — White | - |
| 10 | | Filler, Corner — Black | - |
| 11 | | W10164544NLA Grommet, Drain | Discontinued |

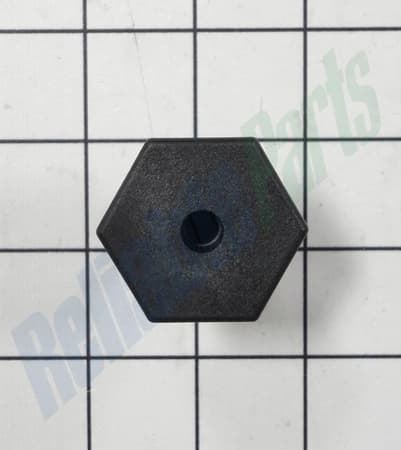

| 12 |  | WP3-82710-001replaces W10177675 Leg, Leveller — White | $6.03 Part Advantage |
| 12 | | WP3-82710-001replaces W10177676 Leg, Leveller — Black | $6.03 Part Advantage |
| 13 |  | WP3-24838-048replaces 4357277 Screw | $7.43 ApplianceParts Pro |
| 14 |  | WP8204624replaces 4356830 Screw | $8.07 Part Advantage |
| 15 | | Shim, Hinge | - |
| 16 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 17 | | Bracket, Roller | - |
| 18 | | Axle | - |
| 19 | | Roller, Front | - |
