Model
Whirlpool EV250NXRQ03
Vertical Freezer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
EV250NXRQ03Vertical Freezer
5 diagrams98 parts
Parts Sections (5)

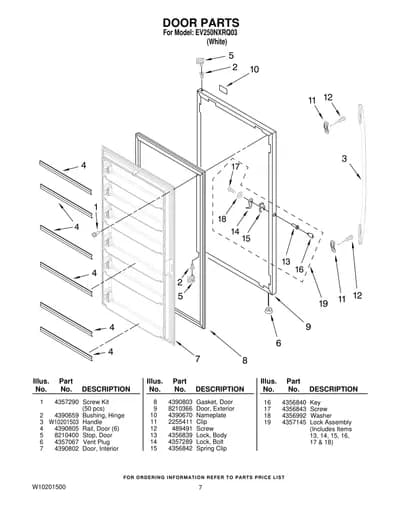

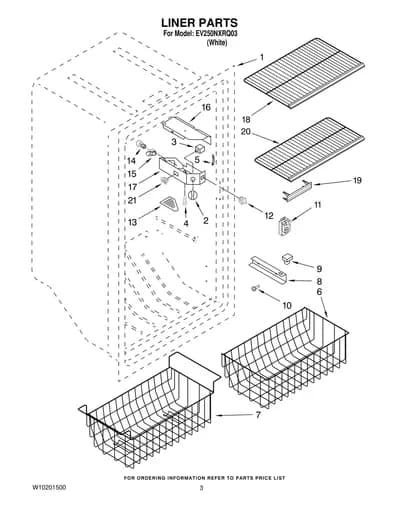

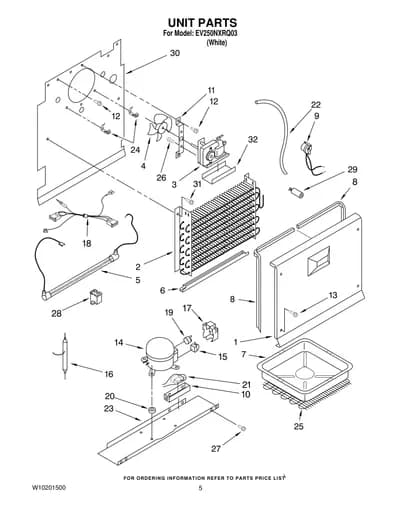

Diagram

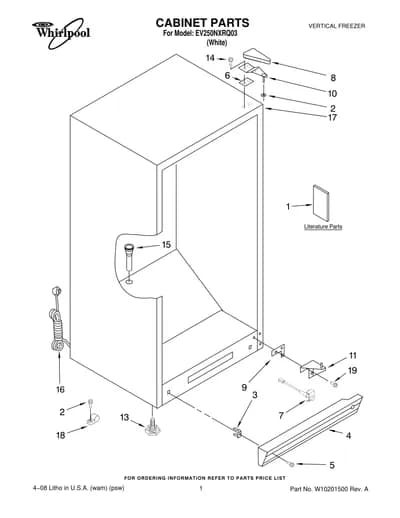

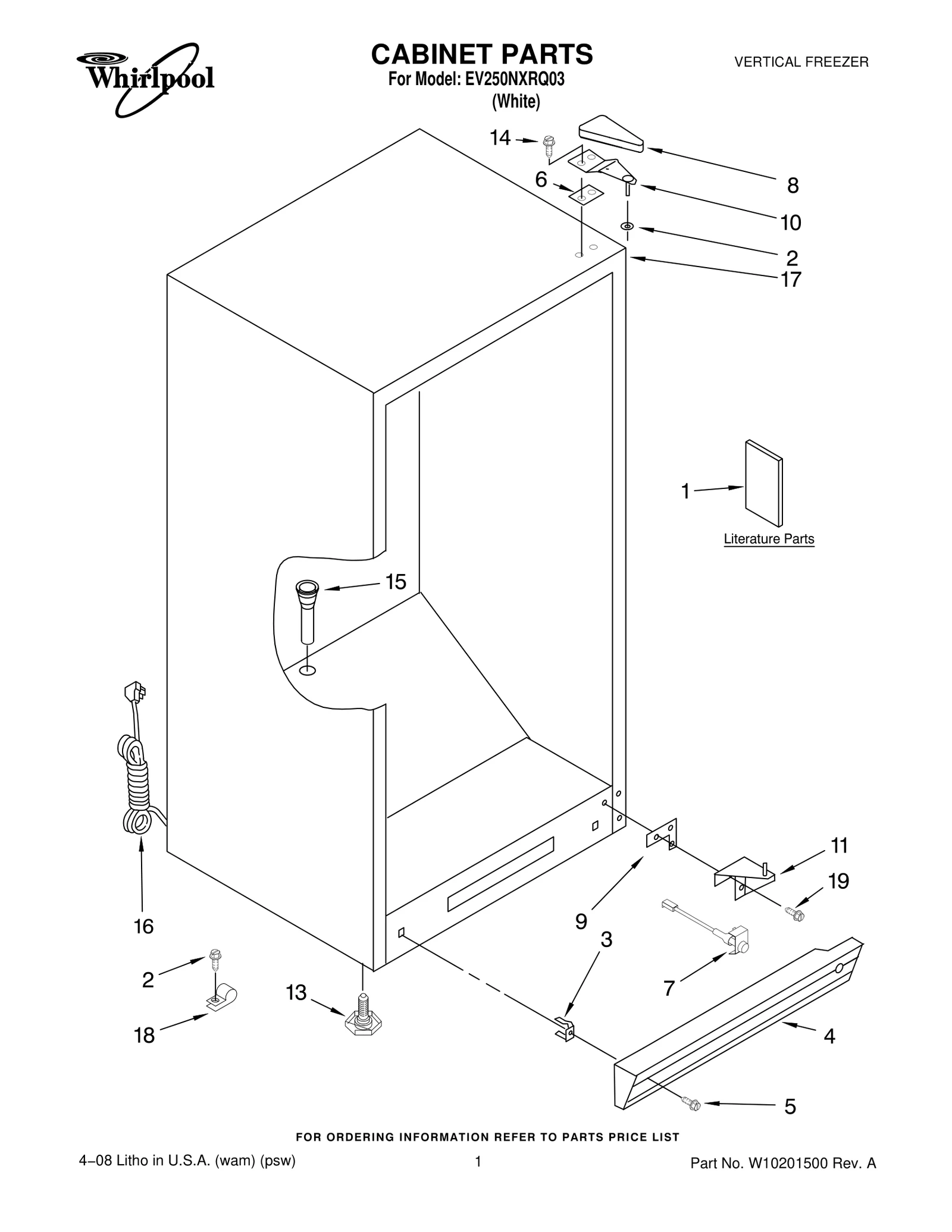

CABINET PARTS
Parts in CABINET PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8210432 Owners Manual | - |
| 1 | – | 4390855 Energy Label/Tag | - |
| 2 | – | 4357139 Screw | - |
| 3 |  | Clip, Grille | - |
| 4 | | Grille | - |
| 5 |  | WP489478replaces 4357243 Screw | $5.00 RepairClinic |
| 6 | | Shim, Hinge | - |
| 7 |  | 3-82130-001replaces 4390905 Power Light Assembly | - |
| 8 | | Cover, Hinge | - |
| 9 | | Shim, Bottom | - |
| 10 | | Hinge, Top | - |
| 11 |  | 8210238replaces W10201501 Hinge, Bottom | $28.08 RepairClinic |
| 13 |  | WP3-82710-001replaces W10177675 Leg, Leveler | $6.03 Part Advantage |
| 14 | – | W10201504 Screw | - |
| 15 | | W10164544NLA Grommet, Drain | Discontinued |
| 16 | | 8210375NLA Cord, Power | Discontinued |
| 17 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 18 | | Clamp, Tube | - |
| 19 |  | WP489491replaces 4390821 Screw | $3.66 Parts Dr |
