Model
Whirlpool EVL165NXRQ04
Refrigerator/Freezer Convertible
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
EVL165NXRQ04Refrigerator/Freezer Convertible
5 diagrams86 parts
Parts Sections (5)
Diagram

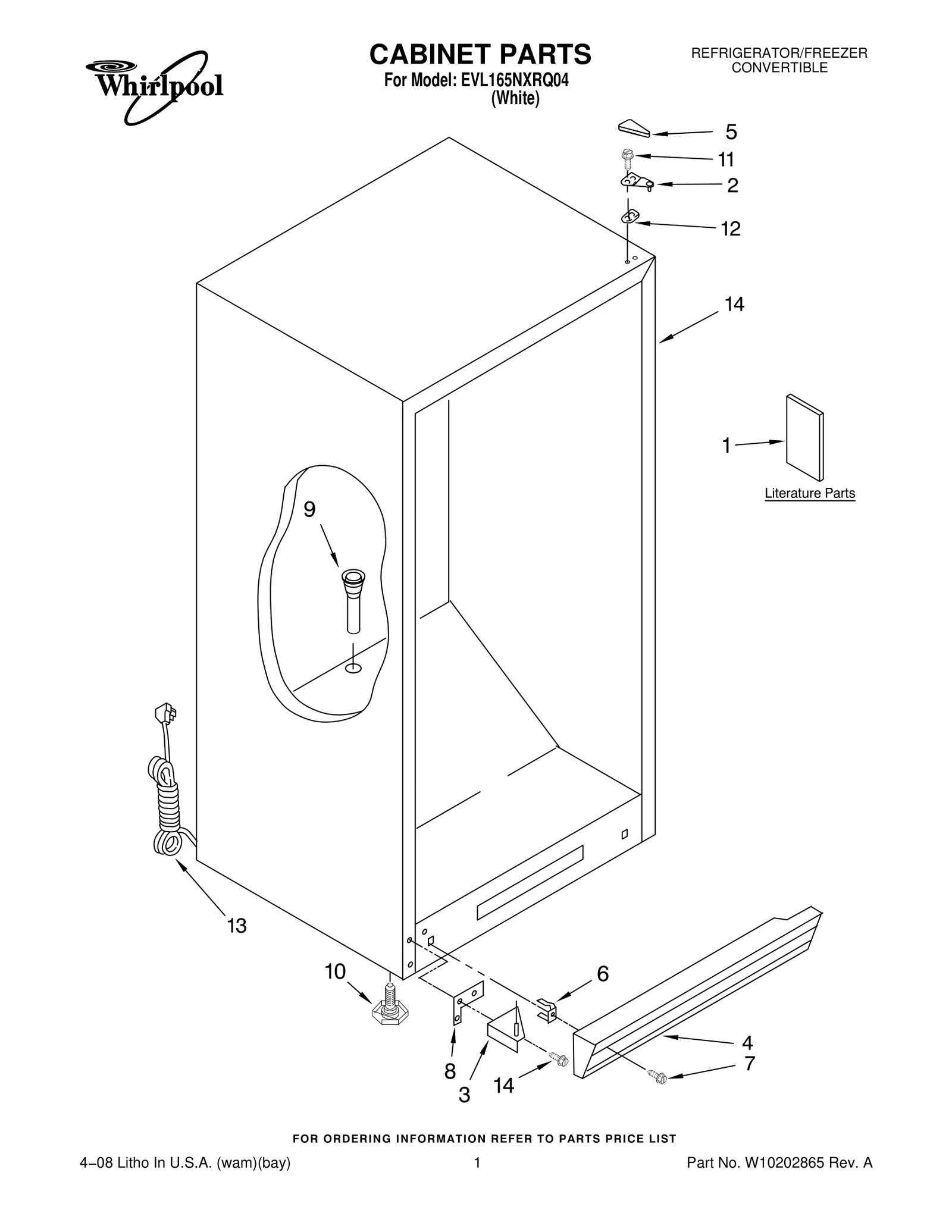

CABINET PARTS
Parts in CABINET PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10128851 Owners Manual | - |
| 1 | – | 8210425 Energy Guide/Tag | - |
| 2 |  | Hinge, Top | - |
| 3 | – | 8210223 Hinge, Bottom | - |
| 4 |  | WP4-60461-005replaces 8210290 Grille — White | - |
| 5 | | Cover, Hinge — White | - |
| 6 | | Clip, Grille | - |
| 7 |  | WP489478replaces 4357243 Screw | $5.00 RepairClinic |
| 8 | | Shim Bottom | - |
| 9 | | W10164544NLA Grommet, Drain | Discontinued |
| 10 |  | W11117769replaces 4390866 Leg, Leveller | $6.38 Part Advantage |
| 11 |  | WP8204624replaces 4356830 Screw | $8.07 Part Advantage |
| 12 | | Shim, Hinge | - |
| 13 | | 8210403NLA Power Cord | Discontinued |
| 14 | – | N/S Cabinet (Not A Serviceable Part) | - |
