Model
Whirlpool EVL181NXTQ00
Vertical Freezer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
EVL181NXTQ00Vertical Freezer
5 diagrams91 parts
Parts Sections (5)
Diagram

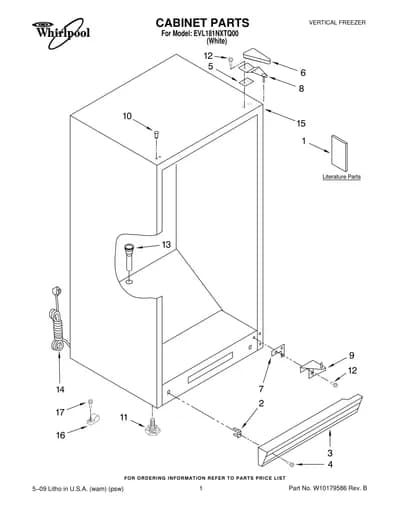

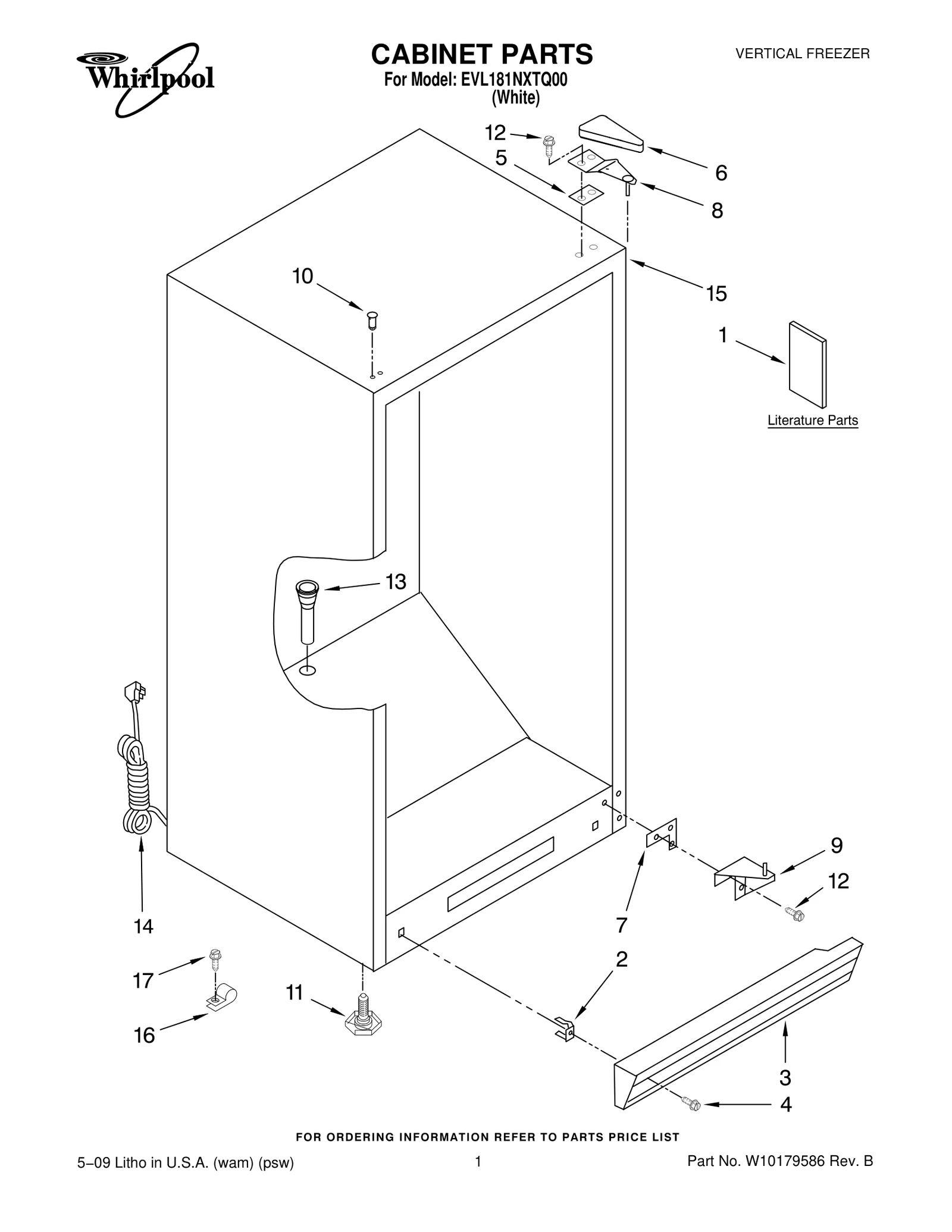

CABINET PARTS
Parts in CABINET PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10180511 Owners Manual — Energy Label/Tag | - |
| 2 |  | Clip, Grille | - |
| 3 | | Grille | Discontinued |
| 4 |  | WP489478replaces 4357243 Screw | $5.00 RepairClinic |
| 5 | | Shim, Hinge | - |
| 6 | | Cover, Hinge | - |
| 7 | | Shim, Bottom | - |
| 8 | | Hinge, Top | - |
| 9 | | Hinge, Bottom | - |
| 10 |  | WP2189000replaces 4390596 Plug (White) | $4.94 Parts Dr |
| 11 |  | WP3-82710-001replaces W10177675 Leveler Leg Kit | $6.03 Part Advantage |
| 12 |  | WP8204624replaces 4356830 Screw | $8.07 Part Advantage |
| 13 | | W10164544NLA Grommet, Drain | Discontinued |
| 14 | | 8210403NLA Cord, Power | Discontinued |
| 15 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 16 | | Clamp, Tube | - |
| 17 | | Screw | - |
| 17 | – | 8210432 - | - |
