Model
Whirlpool EVL201NXRQ05
Vertical Freezer
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
EVL201NXRQ05Vertical Freezer
5 diagrams100 parts
Parts Sections (5)
Diagram

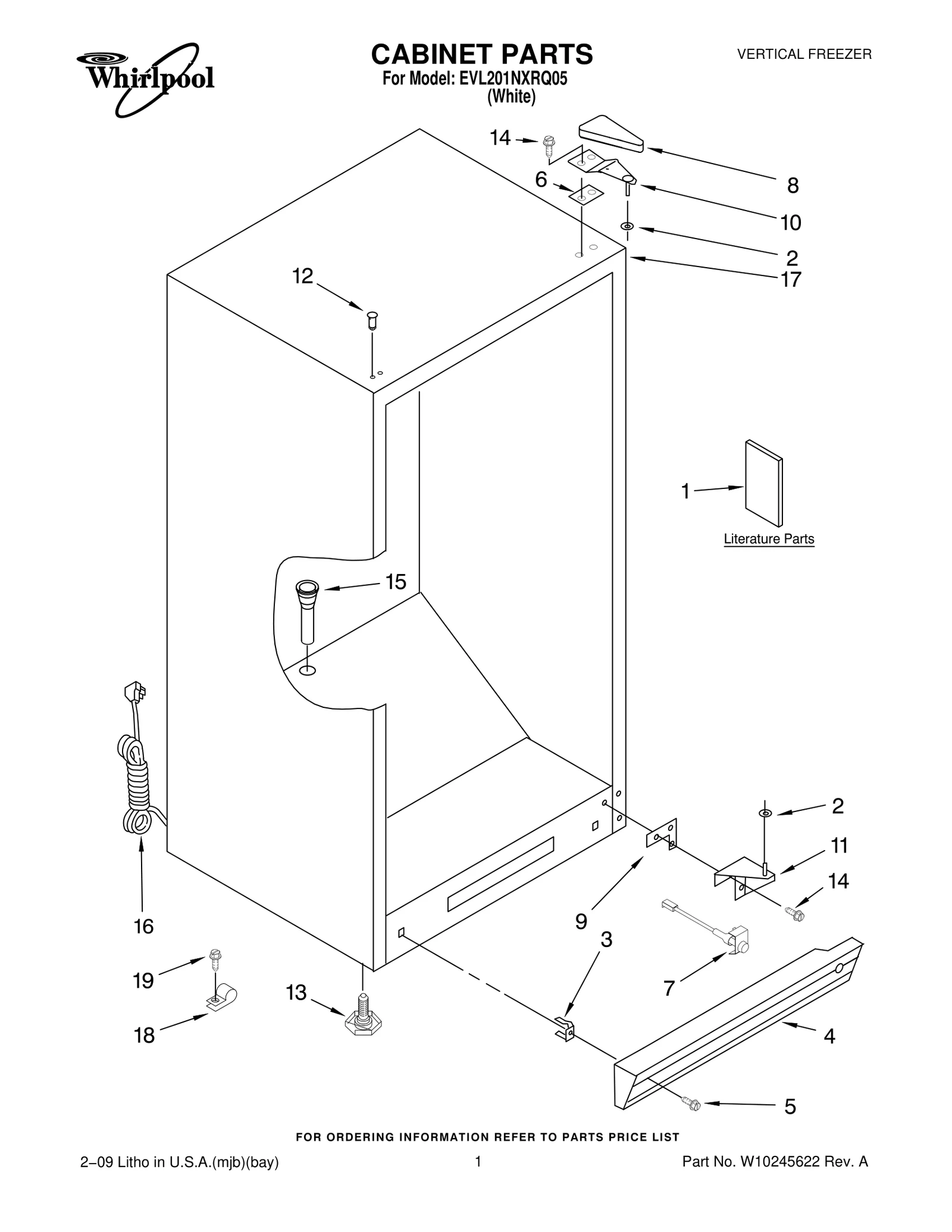

CABINET PARTS
Parts in CABINET PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8210432 Owners Manual | - |
| 1 | – | W10243404 Energy Label/Tag | - |
| 2 |  | W10851331replaces 4390520 Washer, Door Spacer | $2.85 RepairClinic |
| 3 |  | Clip, Grille | - |
| 4 |  | WP4-60461-002replaces 8210310 Grille | - |
| 5 |  | WP489478replaces 4357243 Screw | $5.00 RepairClinic |
| 6 | | Shim, Hinge | - |
| 7 |  | 3-82130-001replaces 4390905 Power Light Assembly | - |
| 8 | | Cover, Hinge | - |
| 9 | | Shim, Bottom | - |
| 10 | | Hinge, Top | - |
| 11 | – | 8210223 Hinge, Bottom | - |
| 12 |  | WP2189000replaces 4390596 Plug (White) | $4.94 Parts Dr |
| 13 |  | WP3-82710-001replaces W10177675 Leg, Leveler | $6.03 Part Advantage |
| 14 |  | WP8204624replaces 4356830 Screw | $8.07 Part Advantage |
| 15 | | W10164544NLA Grommet, Drain | Discontinued |
| 16 | | W10243406NLA Cord, Power | Discontinued |
| 17 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 18 | | Clamp, Tube | - |
| 19 | | Screw | - |
