ModelGladiator
GAGB27PLVG00Pro−Line Garageworks
1 diagram28 parts
Parts Sections (1)
Diagram

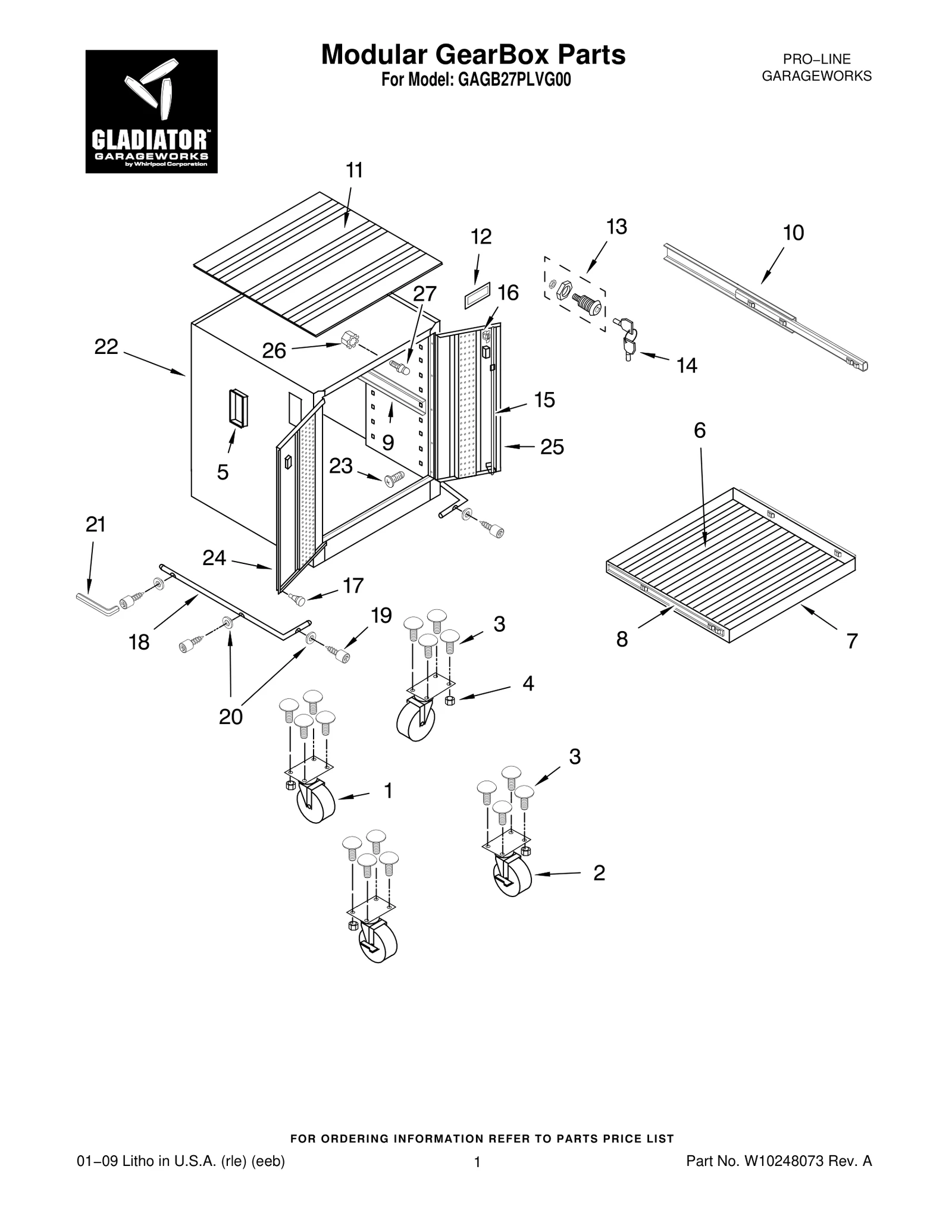

Modular GearBox Parts
Parts in Modular GearBox Parts
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP8204601replaces 8204601 Caster, Swivel 5" | $54.95 ApplianceParts Pro |
| 2 |  | 8211250replaces 8204602 Caster, Rigid w/Break 5" | $24.71 Part Advantage |
| 3 | | WP8204609replaces 8204609 Bolt,Carriage Head | - |
| 4 | | WP8204610replaces 8204610 Nut, Nylon | - |
| 5 | | W10914558replaces 8204603 Handle, Plastic | - |
| 6 | | WP8204604replaces 8204604 Liner, Drawer | - |
| 7 | | 8204635replaces 8211210 Tray | $80.95 ApplianceParts Pro |
| 8 | | 8204635replaces 8211211 Guide | $80.95 ApplianceParts Pro |
| 9 | | 8204635replaces 8211212 Slide, Cabinet Tray & Guide Assy | $80.95 ApplianceParts Pro |
| 10 | – | 8204606 Slide, Ball Bearing 21" | - |
| 11 | | Mat, Top | - |
| 12 | | W10238956replaces W10238957 Nameplate Gladiator | - |
| 13 | – | 8204615 Lock, 90 Degree w/2 Keys | - |
| 14 |  | W11383363replaces 8204608 Keys (2) | $6.41 ApplianceParts Pro |
| 15 | – | 8211213 Cam Flat w/Door Rods | - |
| 16 | | W11369680replaces 8204648 Catch, Door | - |
| 17 | – | 8204636 Grommet, Rubber | - |
| 18 | | Bumper | - |
| 19 | – | 8204611 Screw | - |
| 20 | | WP8211254replaces 8204612 Washer | $5.46 ApplianceParts Pro |
| 21 | – | 8204613 Key−Hex | - |
| 22 | – | 8211214 Cabinet Assy | - |
| 23 | – | 8211202 Screw | - |
| 24 | – | 8211215 Door & Handle Assembly (Left) | - |
| 25 | – | 8211216 Door & Handle Assembly (Right) | - |
| 26 | – | 8204650 Nut, Keps | - |
| 27 | | W11369680replaces 8204649 Stud Miscellaneous | - |
| 27 | – | 8204614 Miscellaneous Parts Bag (Includes 2 Bolts, 2 Nuts, 2 Screws, 2 Washers, 1 Hex−Key, 2 Screws, 2 Keps Nuts, 2 Grommets) | - |
