Model
Gladiator GAGD27PLVG00
Pro−Line Garageworks
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGladiator
GAGD27PLVG00Pro−Line Garageworks
1 diagram23 parts
Parts Sections (1)
Diagram

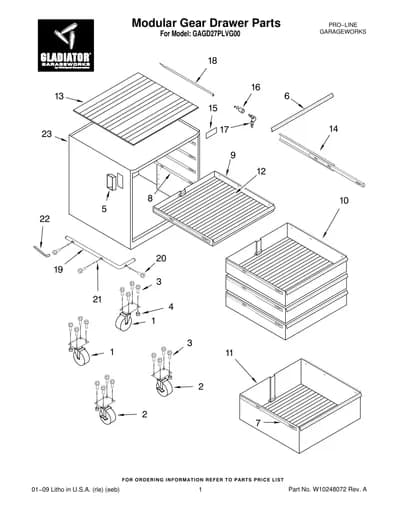

Modular Gear Drawer Parts
Parts in Modular Gear Drawer Parts
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP8204601replaces 8204601 Caster, Swivel, 5" | $54.95 ApplianceParts Pro |
| 2 |  | 8211250replaces 8204602 Caster, Rigid w/Brake 5" | $24.71 Part Advantage |
| 3 | | WP8204609replaces 8204609 Bolt, Carriage Head | - |
| 4 | | WP8204610replaces 8204610 Nut, Nylon | - |
| 5 | | W10914558replaces 8204603 Handle, Plastic | - |
| 6 | – | W10238949 Trim, Drawer | - |
| 7 | | 8204635replaces 8211211 Guide, Drawer | $80.95 ApplianceParts Pro |
| 8 | | 8204635replaces 8211212 Slide, Cabinet | $80.95 ApplianceParts Pro |
| 9 | – | 8204630 Drawer, 2" w/Trim & Guide | - |
| 10 | – | 8204631 Drawer, 4" w/Trim & Guide | - |
| 11 | – | 8204632 Drawer, 8" w/Trim & Guide | - |
| 12 | | WP8204604replaces 8204604 Liner, Drawer | - |
| 13 | | Mat, Top | - |
| 14 | – | 8204606 Slide, Ball Bearing 21" | - |
| 15 | | W10238956replaces W10238957 Nameplate, Gladiator | - |
| 16 | | W11557659replaces 8204607 Lock, 180 Degree w/2 Keys | $24.75 ApplianceParts Pro |
| 17 |  | W11383363replaces 8204608 Keys (2) | $6.41 ApplianceParts Pro |
| 18 | | Keybar | - |
| 19 | – | 8204632 Bumper | - |
| 20 | – | 8204611 Screw | - |
| 21 | | WP8211254replaces 8204612 Washer | $5.46 ApplianceParts Pro |
| 22 | – | 8204613 Key−Hex | - |
| 23 | – | 8211227 Cabinet Assy (Includes Items 5 & 15) Miscellaneous | - |
| 23 | – | 8204614 Miscellanious Parts Bag (Includes 2 Bolts, 2 Nuts, 2 Screws, 2 Washers, 1 Hexkey, 2 Screws, 2 Keps Nuts, 2 Grommets) | - |
