Model
Gladiator GARF19XXVK01
Refrigerator
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGladiator
GARF19XXVK01Refrigerator
7 diagrams179 parts
Parts Sections (7)

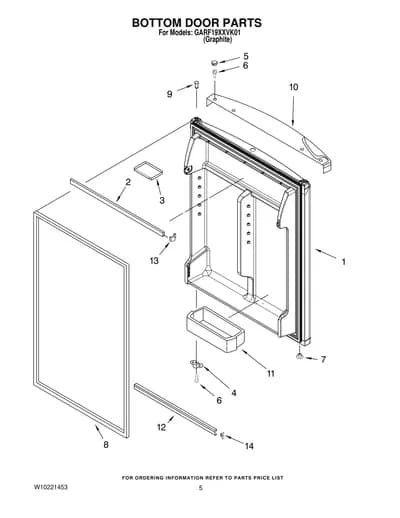

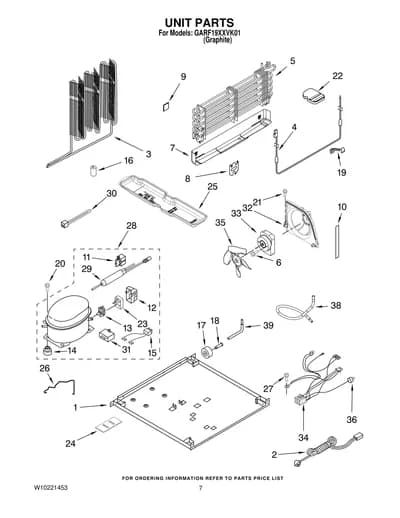

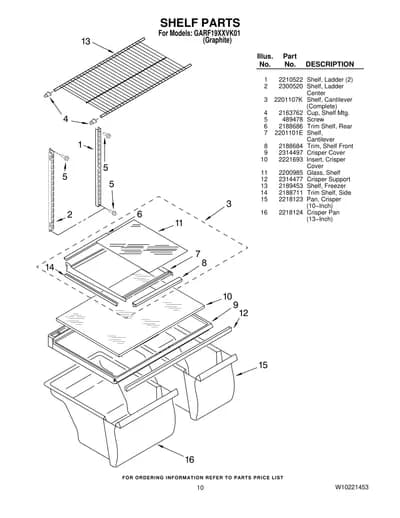

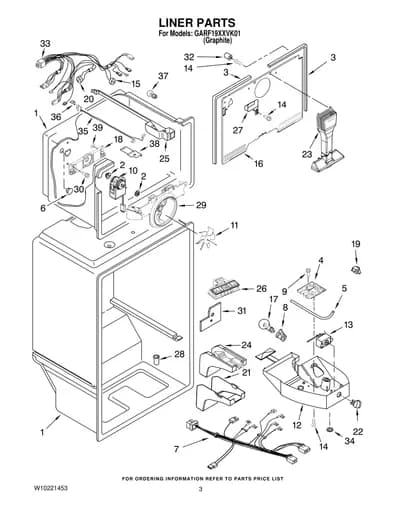

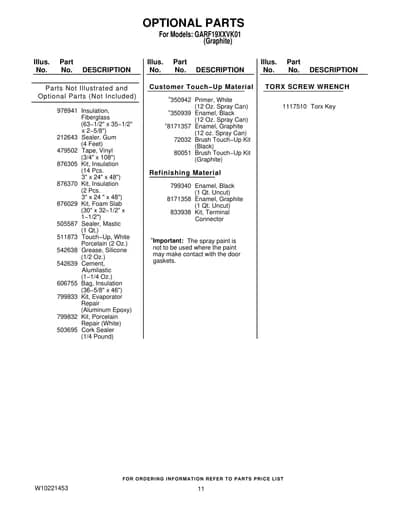

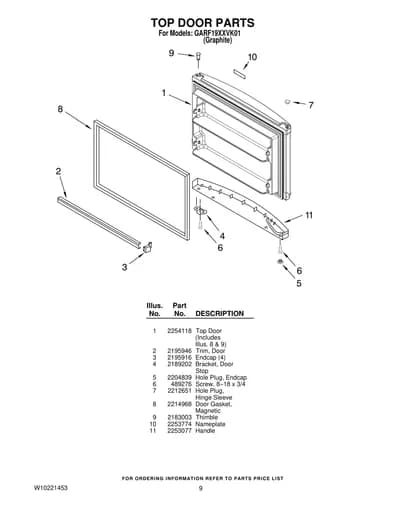

Diagram

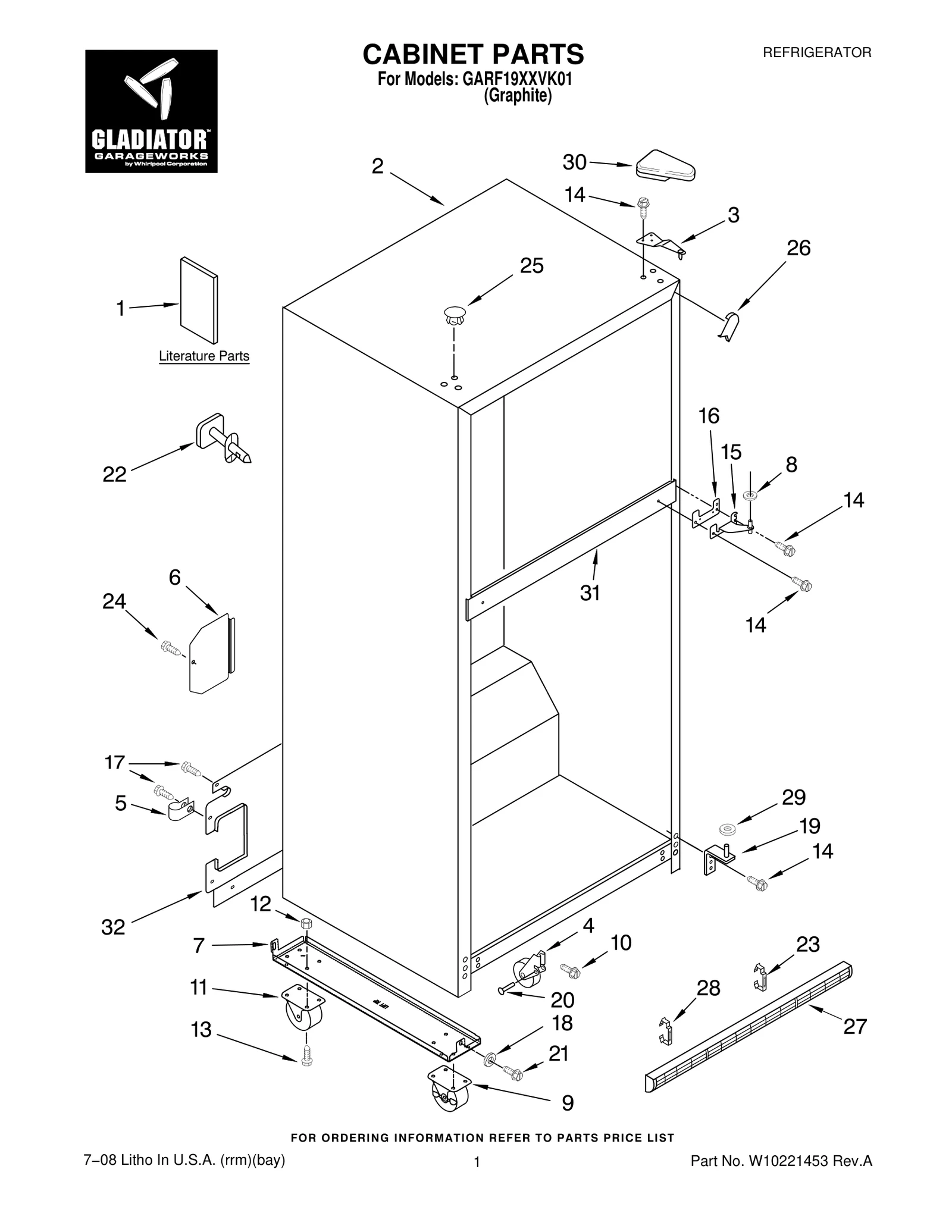

CABINET PARTS
Parts in CABINET PARTS
38 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10142147 Service & Wiring Sheet (English) Energy Label | - |
| 1 | – | W10206575 (English) | - |
| 1 | – | W10190893 (Spanish) Use & Care Guide | - |
| 1 | – | W10131408 Bilingual | - |
| 1 | – | W10131416 Trilingual | - |
| 1 | – | 2254107 Customer Quick Tips | - |
| 2 | – | N/S Cabinet (Not A Serviceable Part) | - |
| 3 |  | WP2261963replaces 2189410 Hinge (Top) | $41.83 Part Advantage |
| 4 |  | WP2166108replaces 2166108 Roller, Front (2) | $12.38 Part Advantage |
| 5 |  | Clamp, Tube | - |
| 6 | – | 2166251 Cover, Water Valve | - |
| 7 | – | 2253155 (Left) | - |
| 7 | – | 2253156 (Right) | - |
| 8 |  | WP489467replaces 489341 Washer | $4.20 Part Advantage |
| 9 | | WP2253168replaces 2253168 Caster, Fixed | - |

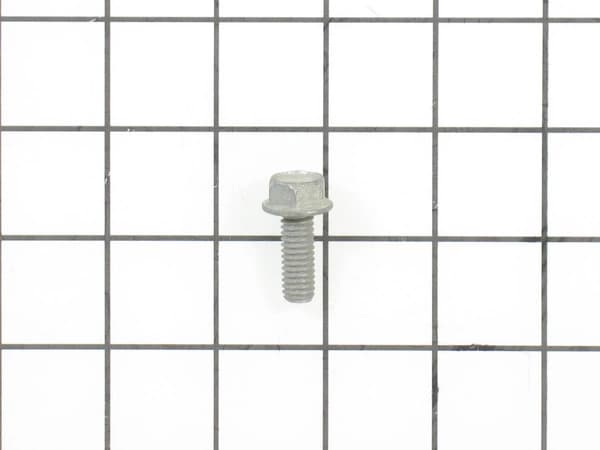

| 10 |  | WP3400504replaces 3400504 Screw | $5.00 RepairClinic |

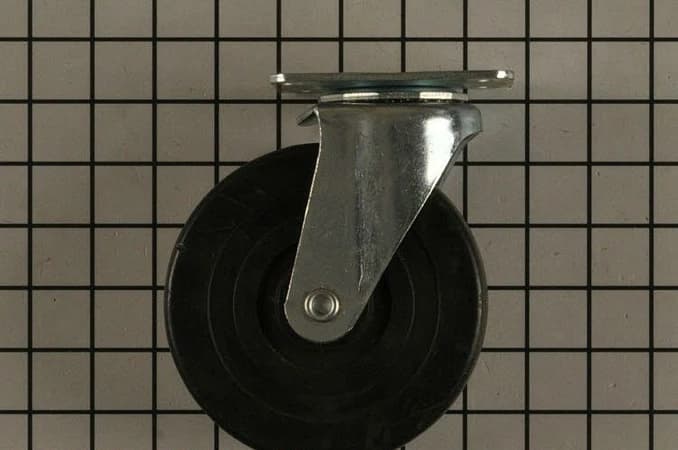

| 11 |  | WP2253169replaces 2253169 Caster, Swivel | $75.06 RepairClinic |
| 12 |  | WP8533952replaces 8533952 Nut | - |
| 13 |  | WP3400527replaces 3400527 Screw | $3.38 Part Advantage |
| 14 |  | WP489497replaces 489497 Screw | $4.19 Part Advantage |
| 15 |  | WP2254618replaces 2254618 Hinge, Center | $25.53 Part Advantage |
| 16 |  | WP2183852replaces 2183852 Shim, Hinge Center | $5.91 Parts Dr |
| 17 |  | WP489427replaces 489427 Screw | $5.00 RepairClinic |
| 18 | – | 8533956 Lock Washer | - |
| 19 |  | WP2254473replaces 2254473 Hinge Butt | $3.38 Part Advantage |
| 20 |  | W11594405replaces 2221797 Rivet | $6.31 Part Advantage |
| 21 |  | Screw | - |
| 22 | – | N/S Fitting, Water Tube | - |

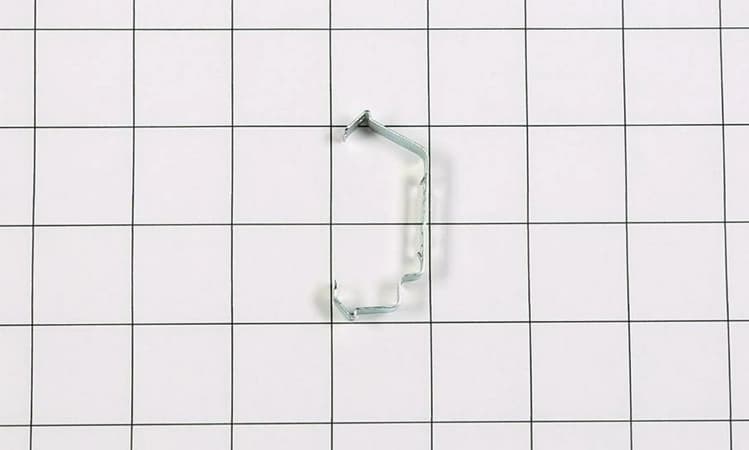

| 23 |  | Clip, Grille | $23.28 RepairClinic |
| 24 |  | WP489464replaces 489464 Screw | $9.62 PartSelect |
| 25 | – | 2204835 Hole Plug (6) | - |
| 26 | – | 2204843 Corner Filler (2) | - |
| 27 | – | 2254390 Grille (Includes | - |
| 28 | | 2189356NLA Clip, Grille | Discontinued |
| 29 |  | WP487576replaces 487576 Washer | $4.19 Part Advantage |
| 30 | | Cover, Hinge | - |
| 31 | – | N/S Rail, Center | - |
| 32 | | 2254582replaces 2302357 Cover, Unit | - |
