Model
Gladiator GATB30PLVG00
Pro−Line Garageworks
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGladiator
GATB30PLVG00Pro−Line Garageworks
1 diagram19 parts
Parts Sections (1)
Diagram

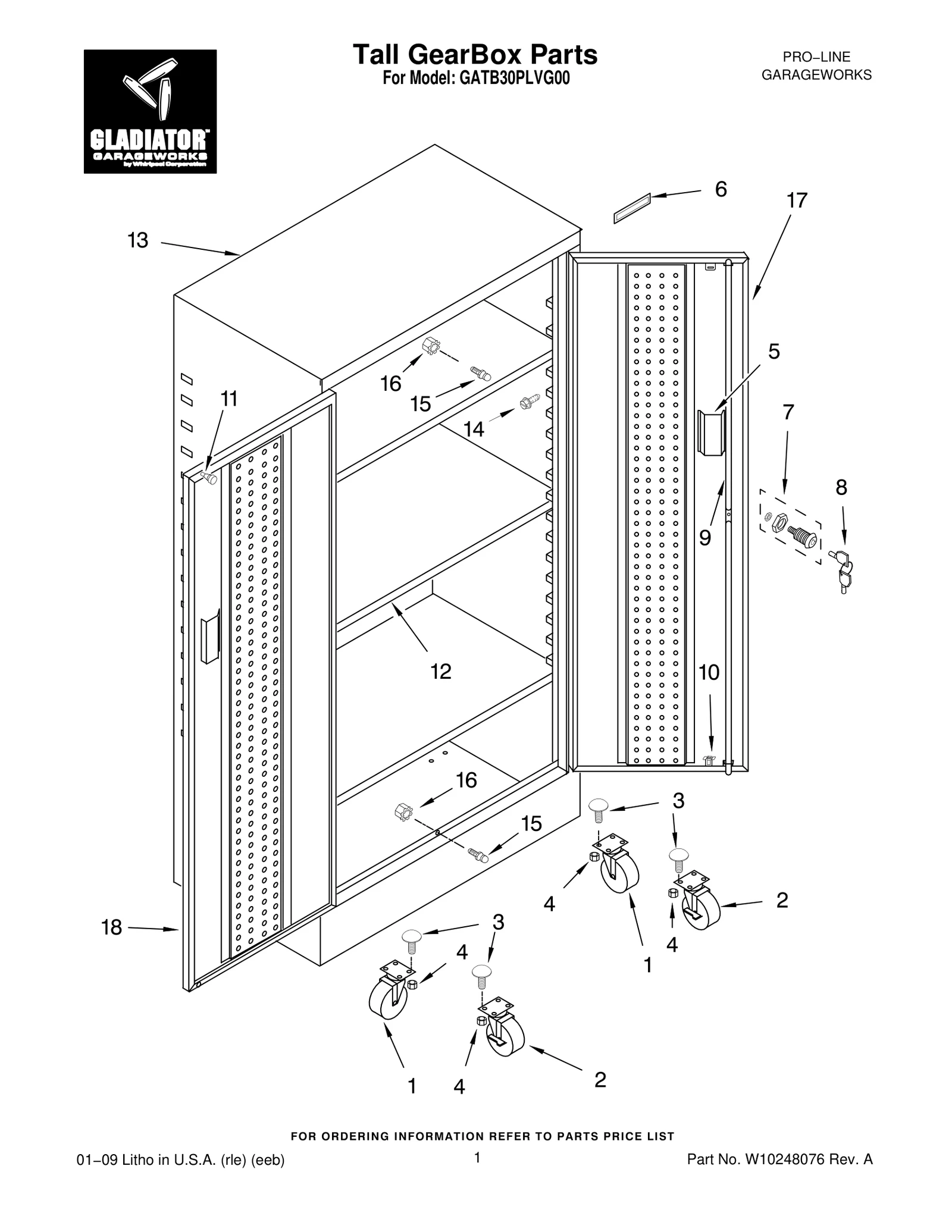

Tall GearBox Parts
Parts in Tall GearBox Parts
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WP8204601replaces 8204601 Caster, Swivel 5" | $54.95 ApplianceParts Pro |
| 2 |  | 8211250replaces 8204602 Caster, Rigid w/Brake 5" | $24.71 Part Advantage |
| 3 | | WP8204609replaces 8204609 Bolt | - |
| 4 | | WP8204610replaces 8204610 Nut, Nylon | - |
| 5 | – | W10238968 Handle | - |
| 6 | | W10238956replaces W10238957 Nameplate, Gladiator | - |
| 7 | – | 8204615 Lock, 90 Degree w/2 Keys | - |
| 8 |  | W11383363replaces 8204608 Keys (2) | $6.41 ApplianceParts Pro |
| 9 | – | 8211217 Cam, Flat w/Door Rods | - |
| 10 | | W11369680replaces 8204648 Catch, Door | - |
| 11 | – | 8204636 Grommet, Rubber | - |
| 12 | – | 8204639 Shelf, Full 18" | - |
| 13 | – | 8211221 Cabinet Assembly | - |
| 14 | – | 8211202 Screw | - |
| 15 | | W11369680replaces 8204649 Stud | - |
| 16 | – | 8204650 Nut, Keps | - |
| 17 | – | 8211219 Door & Handle Assembly (Right) (Includes Items 5 & 10) | - |
| 18 | – | 8211220 Door & Handle Assembly (Left) (Includes Items 5 & 11) Miscellaneous | - |
| 18 | – | 8204614 Miscellanious Parts Bag (Includes 2 Bolts, 2 Nylon Nuts, 2 Screws, 2 Washers, 1 Hex−Key, 2 Screws, 2 Keps Nuts, 2 Grommets) | - |
