Model
Gladiator GAWG30PLVG00
Pro−Line Garageworks
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGladiator
GAWG30PLVG00Pro−Line Garageworks
1 diagram21 parts
Parts Sections (1)
Diagram

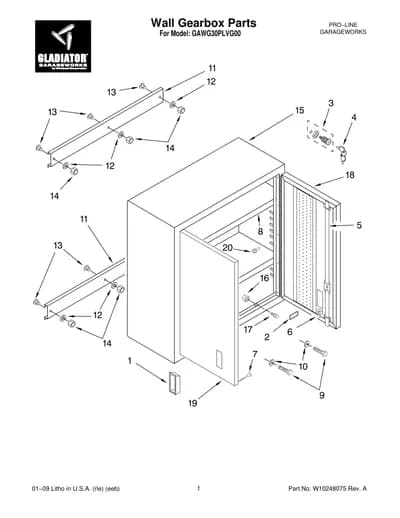

Wall Gearbox Parts
Parts in Wall Gearbox Parts
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10238968 Handle, Plastic | - |
| 2 |  | W10238956replaces W10238957 Nameplate Gladiator | - |
| 3 | – | 8204615 Lock, 90 Degree w/2 Keys | - |

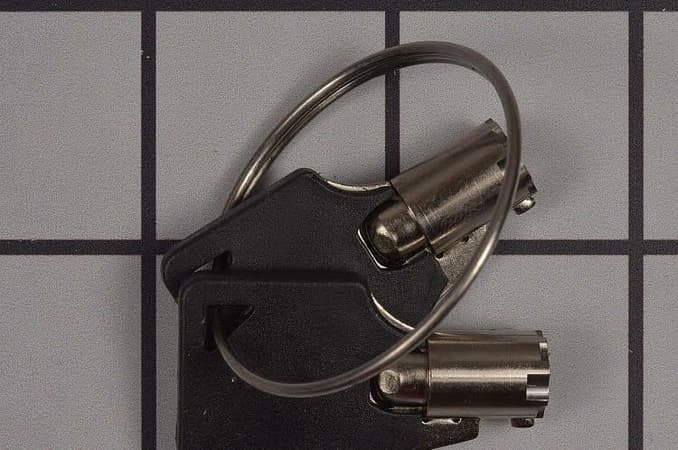

| 4 |  | W11383363replaces 8204608 Keys (2) | $6.41 ApplianceParts Pro |
| 5 | – | 8211233 Cam, Flat w/Door Rods | - |
| 6 | | W11369680replaces 8204648 Catch, Door | - |
| 7 | – | 8204636 Grommet, Rubber | - |
| 8 | – | 8204640 Shelf, Full 12" | - |
| 9 | – | 8204618 Bolt, Lag | - |
| 10 | – | 8204619 Washer | - |
| 11 | – | 8211209 Bracket, Wall | - |
| 12 | | W11549441replaces 8204620 Washer, Flat | - |
| 13 | | W11753795replaces 8204621 Bolt, Carriage | - |
| 14 | | WP8204622replaces 8204622 Nut | - |
| 15 | – | 8211222 Cabinet | - |
| 16 | – | 8204650 Nut, Keps | - |
| 17 | | W11369680replaces 8204649 Stud | - |
| 18 | – | 8211223 Door & Handle Assembly (Right) (Includes Items 1 & 6) | - |
| 19 | – | 8211224 Door & Handle Assembly (Left) (Includes Items 1 & 7) | - |
| 20 | – | 8211202 Screw Miscellaneous | - |
| 20 | – | 8204637 Miscellaneous Parts Bag (Includes 2 Hex Bolts, 2 Washers, 2 Flat Washers, 2 Carriage Bolts, 2 Nylon Nuts) | - |
