Model
Amana GB2026PEKW12
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelAmana
GB2026PEKW12Refrigerator
8 diagrams205 parts
Parts Sections (8)
Diagram

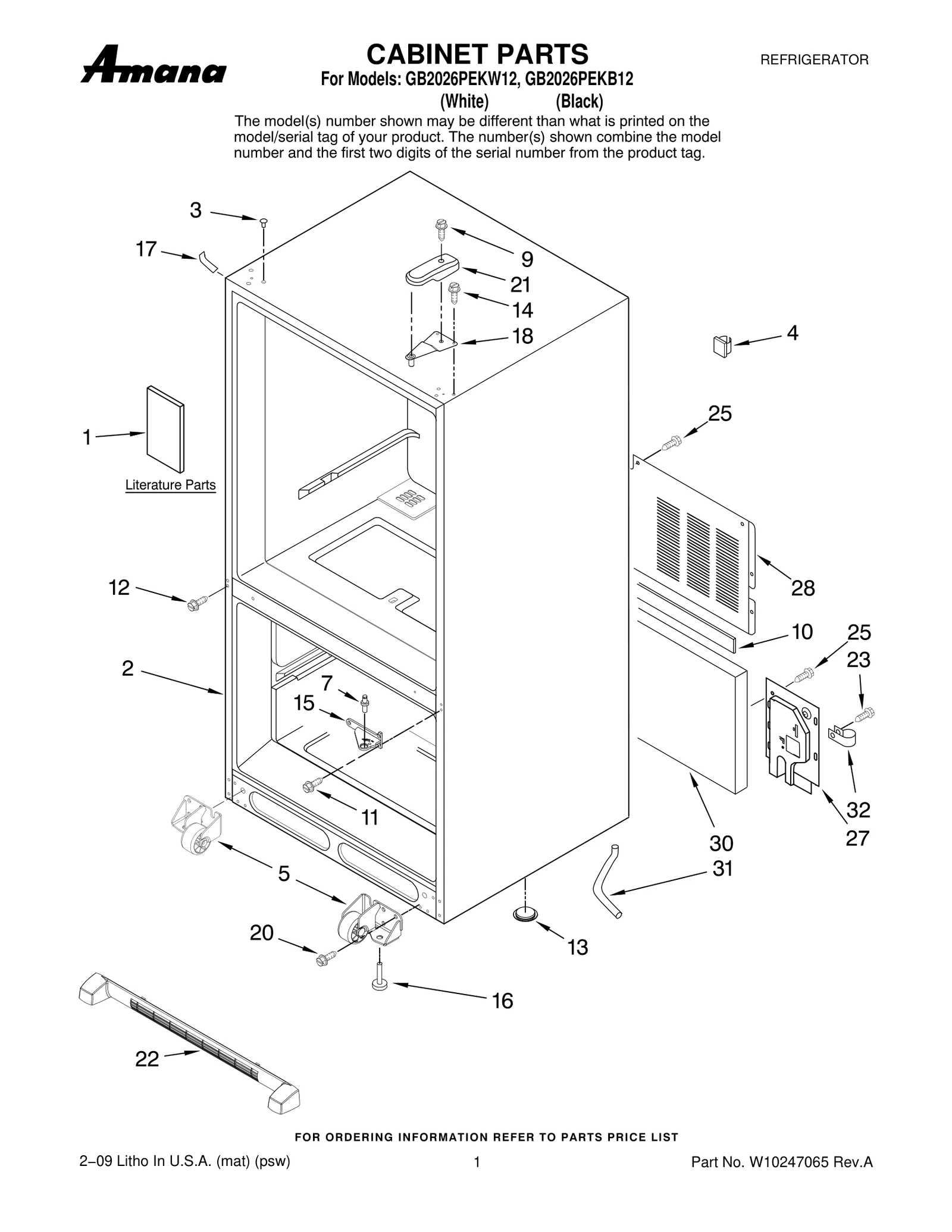

CABINET PARTS
Parts in CABINET PARTS
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 12828189 Owners Manual | - |
| 1 | – | 12827958 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 3 |  | WP67001130replaces M0310729 Plug, Button (3) — White | $5.00 RepairClinic |
| 3 |  | WP12246608replaces M0310731 Plug, Button (3) — Black | $3.38 Part Advantage |
| 4 |  | Clip, Water Line | - |
| 5 |  | WPW10515763replaces W10130460 Roller Assembly — Left | $36.59 Part Advantage |
| 5 |  | WPW10515762replaces W10130459 Roller Assembly — Right | $36.26 Part Advantage |
| 7 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 9 |  | WP8281196replaces 67006521 Screw | $9.62 PartSelect |
| 10 | – | B5759649 Gasket | - |
| 11 |  | WP67006380replaces 67006380 Screw (3) | $21.46 ApplianceParts Pro |
| 12 |  | WP98165replaces 67006473 Screw | $7.47 PartSelect |
| 13 |  | Plug, Button | - |
| 14 |  | WP489349replaces 67006303 Screw | $2.30 Part Advantage |
| 15 |  | 12655102APreplaces 12655102WD Hinge, Center — White | - |
| 15 |  | Hinge, Center — Black | - |
| 16 |  | WPW10141622replaces W10141622 Foot Brake | $3.55 Part Advantage |
| 17 |  | Cover, Corner — White | - |
| 17 |  | Cover, Corner — Black | - |
| 18 | – | 12626909WD Hinge, Top — Left Hand | - |
| 18 | – | 12626907WD Hinge, Top — Right Hand | - |
| 20 |  | Screw (8) | $3.74 Parts Dr |
| 21 |  | Cover, Hinge — White | - |
| 21 |  | Cover, Hinge — Black | - |
| 22 | | W10131133NLA Grille Assembly — White | Discontinued |
| 22 |  | Grille Assembly — Black | Discontinued |
| 23 |  | WP33001882replaces 67006737 Screw | $27.07 ApplianceParts Pro |
| 25 |  | Screw (10) | $2.30 Part Advantage |
| 27 | – | 12479808 Cover, Water Valve | - |
| 28 | – | 67002230 Cover, Unit | - |
| 30 |  | Insulation, Sound | $11.89 Parts Dr |
| 31 | | 67001066NLA Tube, Drain | Discontinued |
| 32 | | Clip, Drain Tube | $6.95 ApplianceParts Pro |
