Model
Whirlpool GB2026REKS13
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GB2026REKS13Refrigerator
8 diagrams192 parts
Parts Sections (8)
Diagram

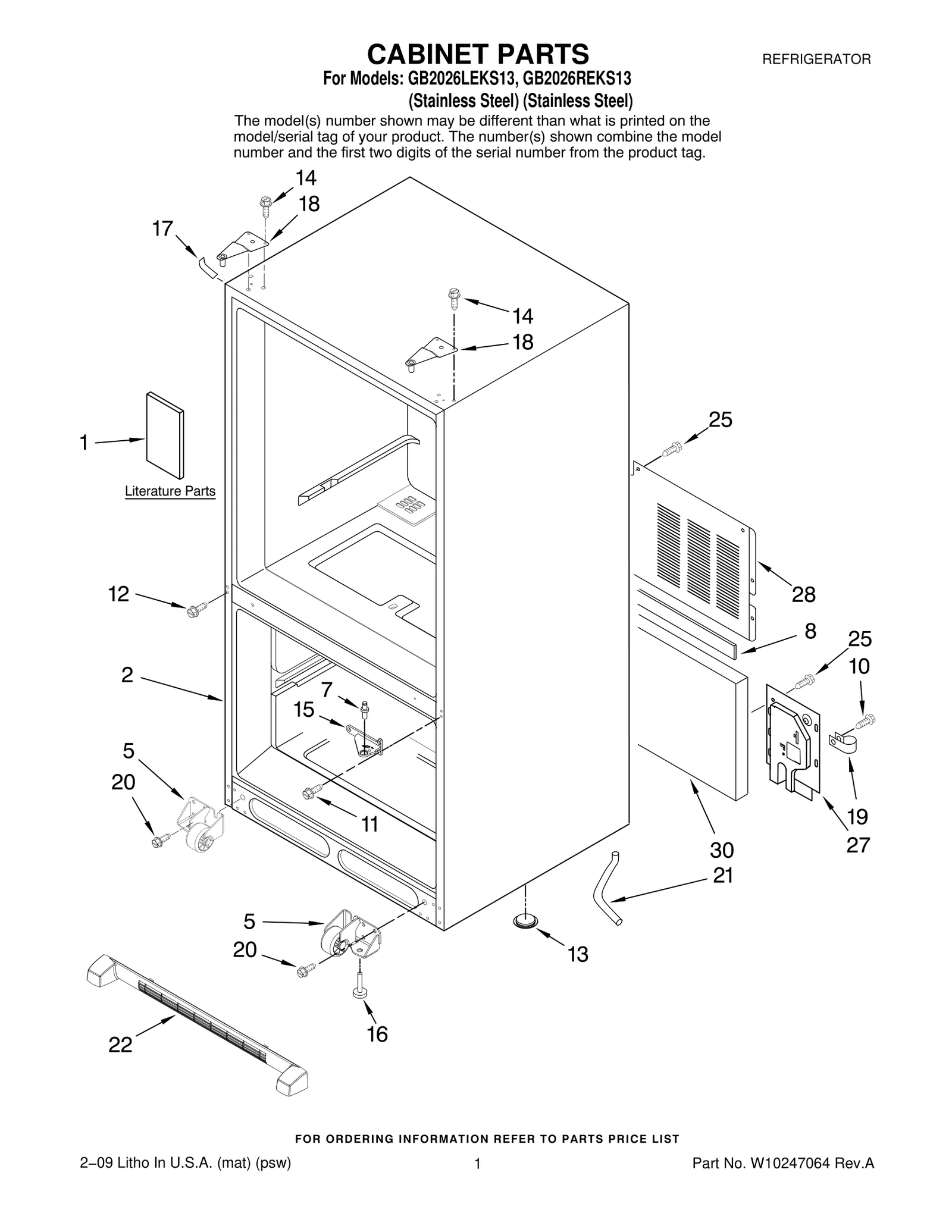

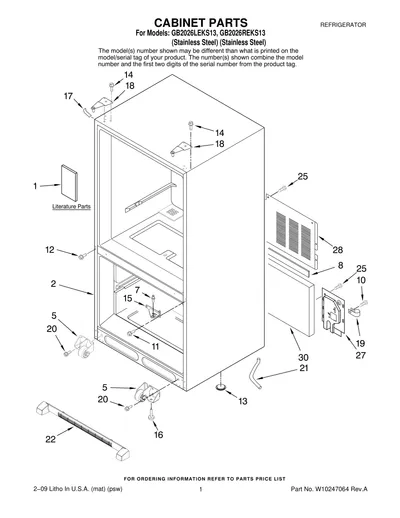

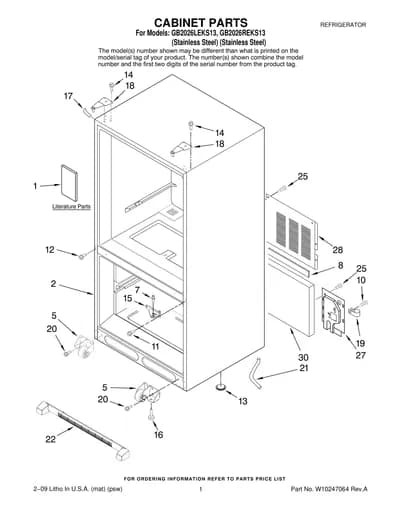

CABINET PARTS
Parts in CABINET PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 12828189 Owners Manual | - |
| 1 | – | 12827958 Tech Sheet | - |
| 2 | – | N/S Cabinet (Not a Servicable Part) | - |
| 5 |  | WPW10515763replaces W10130460 Roller Foot Assembly — Left | $36.59 Part Advantage |
| 5 |  | WPW10515762replaces W10130459 Roller Foot Assembly — Right | $36.26 Part Advantage |
| 7 |  | WP67006642replaces 67006642 Pin, Center Hinge | $5.00 RepairClinic |
| 8 | – | B5759649 Gasket | - |
| 10 |  | WP33001882replaces 67006737 Screw | $27.07 ApplianceParts Pro |
| 11 |  | WP67006380replaces 67006380 Screw (3) | $21.46 ApplianceParts Pro |
| 12 |  | WP98165replaces 67006473 Screw | $7.47 PartSelect |
| 13 |  | Plug, Button | - |
| 14 |  | WP489349replaces 67006303 Screw | $2.30 Part Advantage |
| 15 |  | WP12607104EDreplaces 12607103ED Hinge, Center — Black | $53.11 Parts Dr |
| 16 |  | WPW10141622replaces W10141622 Foot Brake | $3.55 Part Advantage |
| 17 |  | Cover, Corner — Black | - |
| 18 |  | WP12566606EDreplaces 12566604ED Hinge, Top — Left | $18.97 Parts Dr |
| 19 |  | Clip, Drain Tube | $6.95 ApplianceParts Pro |
| 20 |  | Screw | $3.74 Parts Dr |
| 21 | | 67001066NLA Tube, Drain | Discontinued |
| 22 |  | Grille Assembly — Black | Discontinued |
| 25 |  | Screw (10) | $2.30 Part Advantage |
| 27 | – | W10131907 Cover, Water Valve | - |
| 28 | – | 67002230 Cover, Unit | - |
| 30 |  | Insulation, Sound | $11.89 Parts Dr |
