Model
Whirlpool GBD277PRS02
27" Built−In Electric Double Oven Convection − Upper Oven Self−Clean (Gold Line)
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GBD277PRS0227" Built−In Electric Double Oven Convection − Upper Oven Self−Clean (Gold Line)
6 diagrams134 parts
Parts Sections (6)

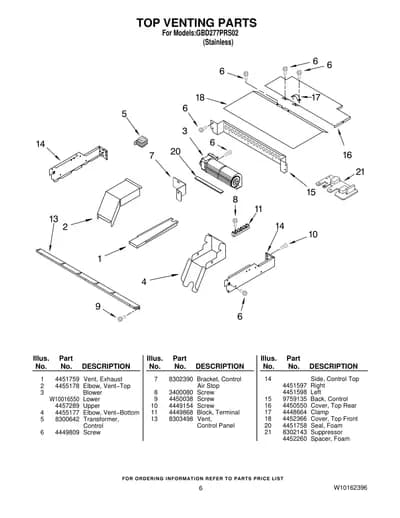

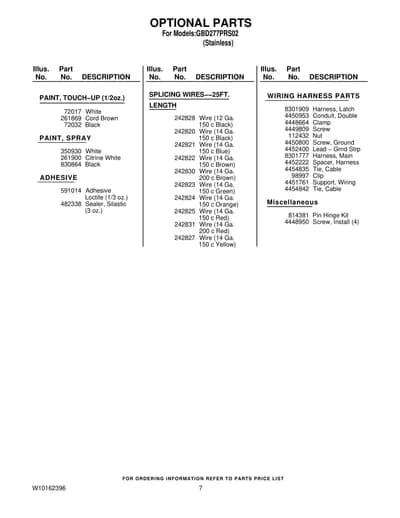

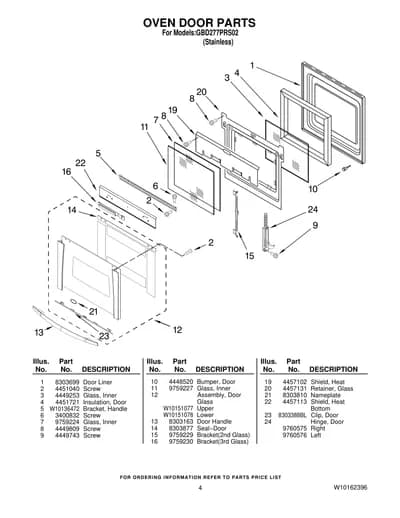

Diagram

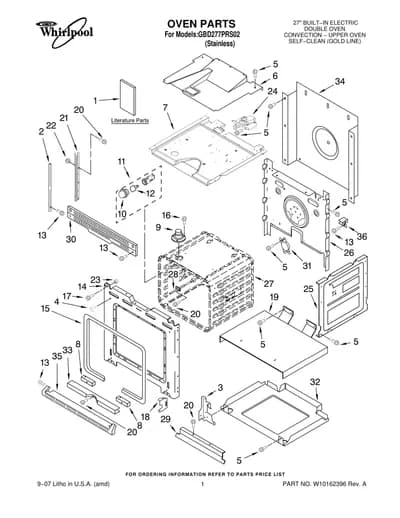

OVEN PARTS
Parts in OVEN PARTS
47 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8303648 Installation Instructions Owners Manual | - |
| 1 | – | 8304075 English | - |
| 1 | – | 8304076 French | - |
| 1 | – | 8302068 Tech Sheet (Oven) Safer Cooking Tips | - |
| 1 |  | 3191638NLA English | Discontinued |
| 1 | – | 9759133 French | - |
| 2 | | Trim, Side — Right | Discontinued |
| 2 | | W10136338NLA Trim, Side — Left | Discontinued |
| 3 |  | WP4455605replaces 4455605 Receiver, Hinge — Left | $54.41 Part Advantage |
| 3 |  | WP4455606replaces 4455606 Receiver, Hinge — Right | $54.41 Part Advantage |
| 4 |  | Bumper, Door | $4.44 Part Advantage |
| 5 |  | WP4449809replaces 4449809 Screw | $2.41 Part Advantage |
| 6 | – | 8302348 Divider, Vent | - |
| 7 | | Top Chassis | - |
| 8 | | Spacer, Foam | - |
| 9 |  | W10861715replaces 4452158 Tube, Vent | - |
| 10 | | Lens, Light | - |
| 11 |  | WPW10734065replaces W10009930 Assembly, Light | - |
| 12 |  | WP4173175replaces 4452166 Bulb, Light | $27.68 Part Advantage |
| 13 |  | WP3400832replaces 3400832 Screw | $2.30 Part Advantage |
| 14 | – | W10130370 Frame, Front | - |

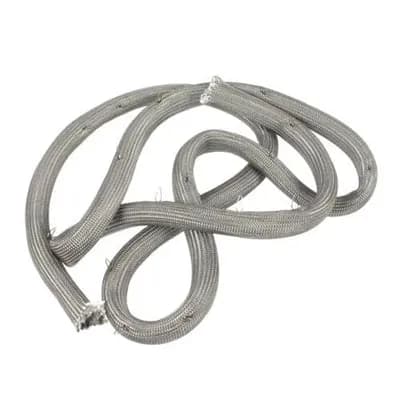

| 15 |  | WP4455381replaces 4455381 Gasket, Door | $85.95 ApplianceParts Pro |
| 16 |  | W11233072replaces 3196176 Screw | $8.78 Part Advantage |
| 17 |  | WPW10650400replaces 4449040 Screw | - |
| 18 |  | Bracket, Mounting | - |
| 19 | | Support, Insulation | - |
| 20 |  | WP4449154replaces 4449154 Screw | $3.72 Parts Dr |
| 21 | | WP8302793replaces 8302793 Rail, Side — Right | - |
| 21 | | Rail, Side — Left | - |
| 22 |  | WP4448444replaces 4448444 Grommet | $4.32 Parts Dr |
| 23 | | WP4450118replaces 4450118 Nut | $5.46 ApplianceParts Pro |
| 24 |  | WPW10195934replaces 9760888 Latch, Motorized | $107.77 Part Advantage |
| 25 | | W10782197replaces 4455641 Side, Chassis | $40.60 RepairClinic |
| 26 | | Back, Chassis | - |
| 27 | – | N/S Liner, Oven | - |
| 28 |  | WPW10131825replaces 4455636 Sensor | $50.18 Part Advantage |
| 29 | | Deflector, Vent | $27.38 RepairClinic |
| 30 | | Vent, Center | - |
| 31 |  | WP9759242replaces 9759242 Safety (TOD) Swtch Thermostat (temp) — Upper | $35.11 Part Advantage |
| 31 |  | WP9759243replaces 9759243 Safety (TOD) Swtch Thermostat (temp) — Lower | $28.11 Part Advantage |
| 32 | | Base, Chassis | - |
| 33 |  | WP4448933replaces 4448933 Retainer, Gasket | $5.00 RepairClinic |
| 34 |  | WP4451747replaces 4451747 Cover, Back | $36.75 RepairClinic |
| 35 | | 8302940NLA Trim, Bottom | Discontinued |
| 36 | | Support, Bracket NOT ILLUSTRATED INSULATION | - |
| 36 | | Insulation, Wrap | - |
| 36 | | 4450364NLA Insulation, Back | Discontinued |
