Whirlpool GBD307PRS02
30" Built−In Electric Double Oven Convection−Upper Self−Clean (Gold Line)

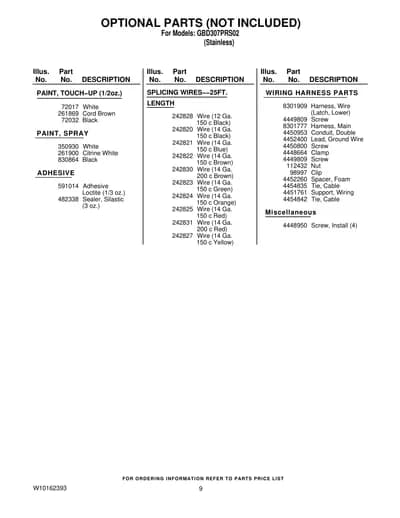

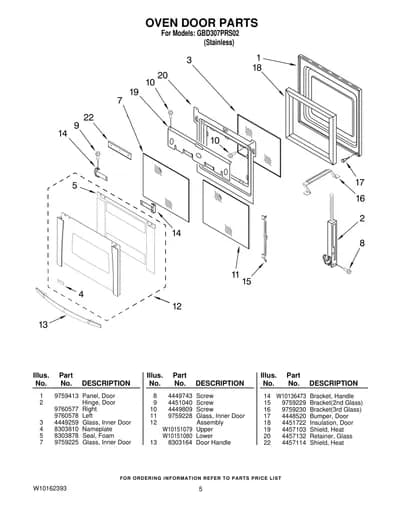

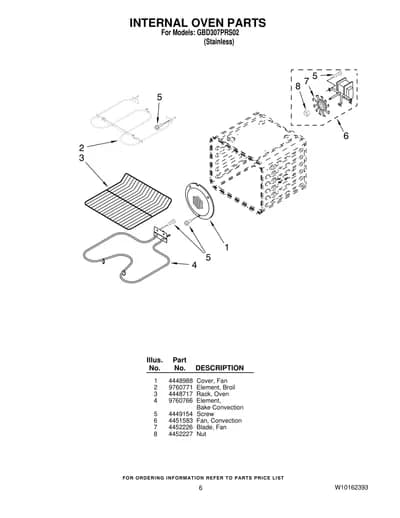

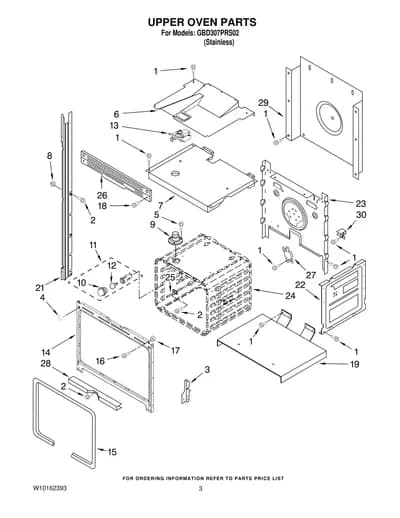

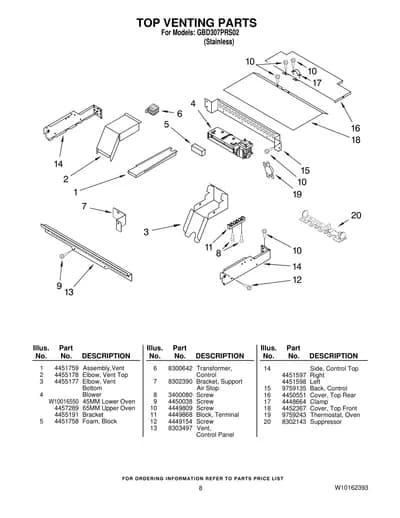

Parts Sections (7)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GBD307PRS0230" Built−In Electric Double Oven Convection−Upper Self−Clean (Gold Line)
7 diagrams132 parts
Parts Sections (7)
Diagram

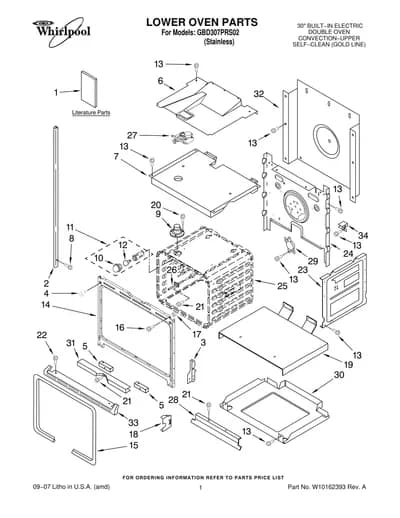

LOWER OVEN PARTS

Parts in LOWER OVEN PARTS
43 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8303647 Installation Instructions Owners Manual | - |
| 1 | – | 8304075 English | - |
| 1 | – | 8304076 French | - |
| 1 | – | 8302068 Tech Sheet (Oven) Safer Cooking Tips | - |
| 1 | 3191638NLA English | Discontinued | |
| 1 | – | 9759133 French | - |
| 2 | W10145003NLA Trim, Side — Right | Discontinued | |
| 2 | Trim, Side — Left | - | |
| 3 | WP4455606replaces 4455606 Hinge Receiver — Right | $54.41 Part Advantage | |
| 3 | WP4455605replaces 4455605 Hinge Receiver — Left | $54.41 Part Advantage | |
| 4 | ![]() | Bumper, Door | $4.44 Part Advantage |
| 5 | Spacer, Foam | - | |
| 6 | Divider, Vent | - | |
| 7 | 8303099NLA Top, Chassis | Discontinued | |
| 8 | – | N/S Screw | - |
| 9 | ![]() | W10861715replaces 4452158 Tube, Vent | - |
| 10 | Lens, Light | - | |
| 11 | WPW10734065replaces W10009930 Assembly, Oven Light | - | |
| 12 | WP4173175replaces 4452166 Bulb, Light | $27.68 Part Advantage | |
| 13 | WP4449809replaces 4449809 Screw | $2.41 Part Advantage | |
| 14 | WPW10115831replaces W10130368 Frame, Front | - | |
| 15 | W11675844replaces 4455382 Gasket, Door | $25.91 Part Advantage | |
| 16 | WPW10650400replaces 4449040 Screw | - | |
| 17 | WP4450118replaces 4450118 Nut | $5.46 ApplianceParts Pro | |
| 18 | ![]() | Bracket, Mounting | - |
| 19 | – | 4451478 Support, Insulation | - |
| 20 | W11233072replaces 3196176 Screw | $8.78 Part Advantage | |
| 21 | WP4449154replaces 4449154 Screw | $3.72 Parts Dr | |
| 22 | WP3400832replaces 3400832 Screw | $2.30 Part Advantage | |
| 23 | W10782197replaces 4455641 Side, Chassis | $40.60 RepairClinic | |
| 24 | Back, Chassis | - | |
| 25 | – | N/S Liner, Oven | - |
| 26 | WPW10131825replaces 4455636 Sensor | $50.18 Part Advantage | |
| 27 | WPW10195934replaces 9760888 Latch, Motorized | $107.77 Part Advantage | |
| 28 | ![]() | Deflector, Bottom | $43.73 RepairClinic |
| 29 | WP9759242replaces 9759242 Thermostat | $35.11 Part Advantage | |
| 30 | 9759713NLA Base, Chassis | Discontinued | |
| 31 | WP4448933replaces 4448933 Retainer, Gasket | $5.00 RepairClinic | |
| 32 | WP4451747replaces 4451747 Cover, Back | $36.75 RepairClinic | |
| 33 | W10145001NLA Trim, Bottom Vent | Discontinued | |
| 34 | Support, Bracket NOT ILLUSTRATED INSULATION | - | |
| 34 | WPW10708464replaces 4449316 Insulation, Wrap | $326.47 ApplianceParts Pro | |
| 34 | 4450365NLA Insulation, Back | Discontinued |
