Model
Whirlpool GFE461LVS0
30" Electric Ceran
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GFE461LVS030" Electric Ceran
6 diagrams165 parts
Parts Sections (6)
Diagram

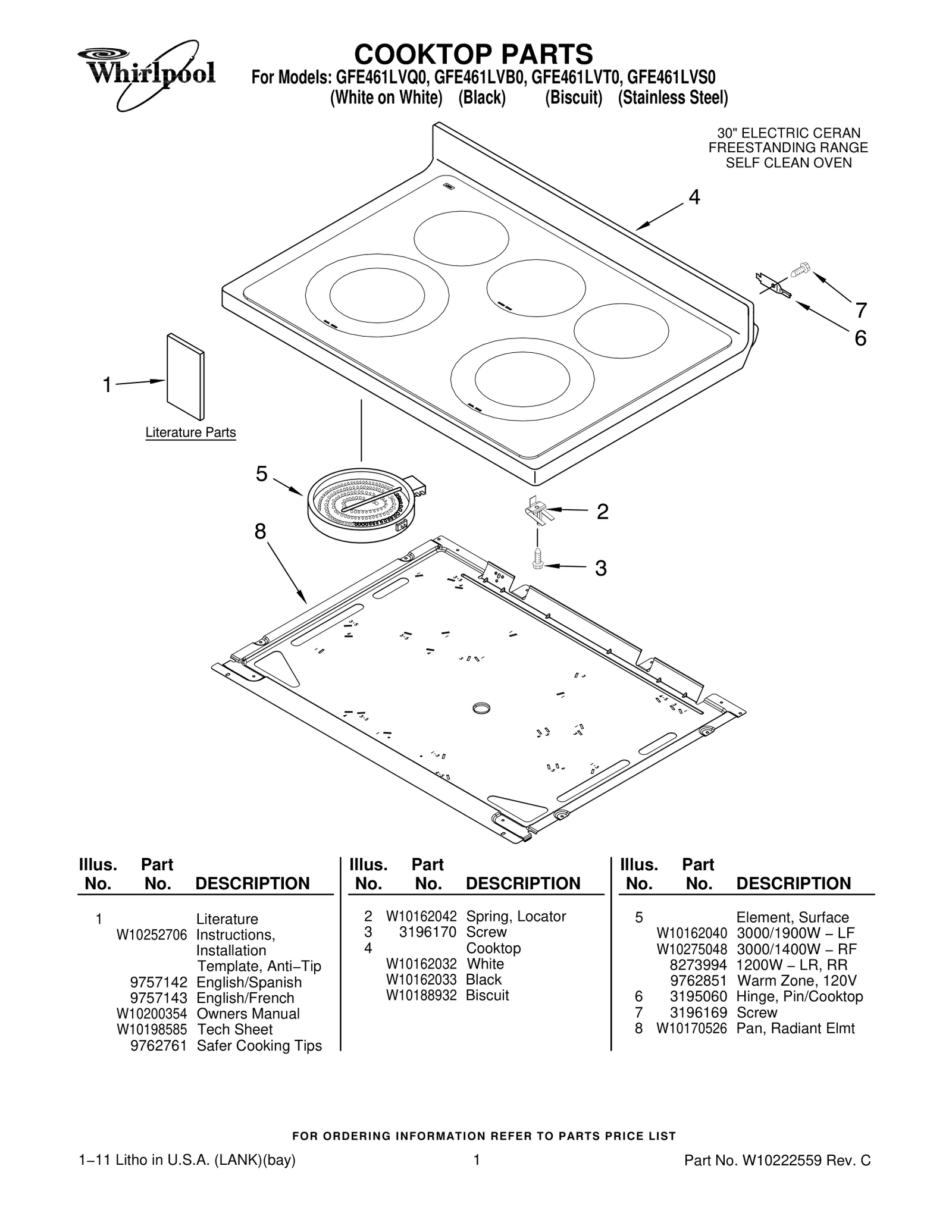

COOKTOP PARTS
Parts in COOKTOP PARTS
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10252706 Instructions, | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10200354 Owners Manual | - |
| 1 | – | W10198585 Tech Sheet | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | WPW10225448replaces W10162042 Spring, Locator | $4.75 Part Advantage |
| 3 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 4 |  | W10651914replaces W10162032 Cooktop — White | $327.25 Parts Dr |
| 4 |  | W10651915replaces W10162033 Cooktop — Black | $320.24 Parts Dr |
| 4 |  | W10238009replaces W10188932 Cooktop — Biscuit | - |

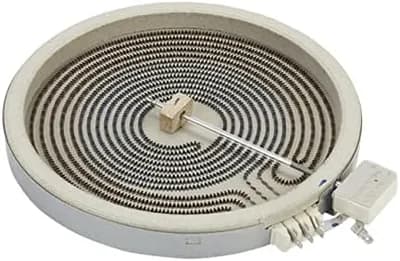

| 5 |  | W10823727replaces W10162040 Element, Surface — 3000/1900W − LF | $92.89 Part Advantage |
| 5 |  | W11517959replaces W10275048 Element, Surface — 3000/1400W − RF | $68.23 Part Advantage |
| 5 |  | W11171119replaces 8273994 1200W − LR, RR | $85.73 Part Advantage |
| 5 |  | WP9762851replaces 9762851 Warm Zone, 120V | - |
| 6 |  | WP3195060replaces 3195060 Hinge, Pin/Cooktop | $3.87 Part Advantage |
| 7 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
| 8 |  | Pan, Radiant Elmt | - |
