Model
Whirlpool GFG464LVB1
30" Gas Freestanding Self Clean Range Sealed Burner
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GFG464LVB130" Gas Freestanding Self Clean Range Sealed Burner
7 diagrams207 parts
Parts Sections (7)
Diagram

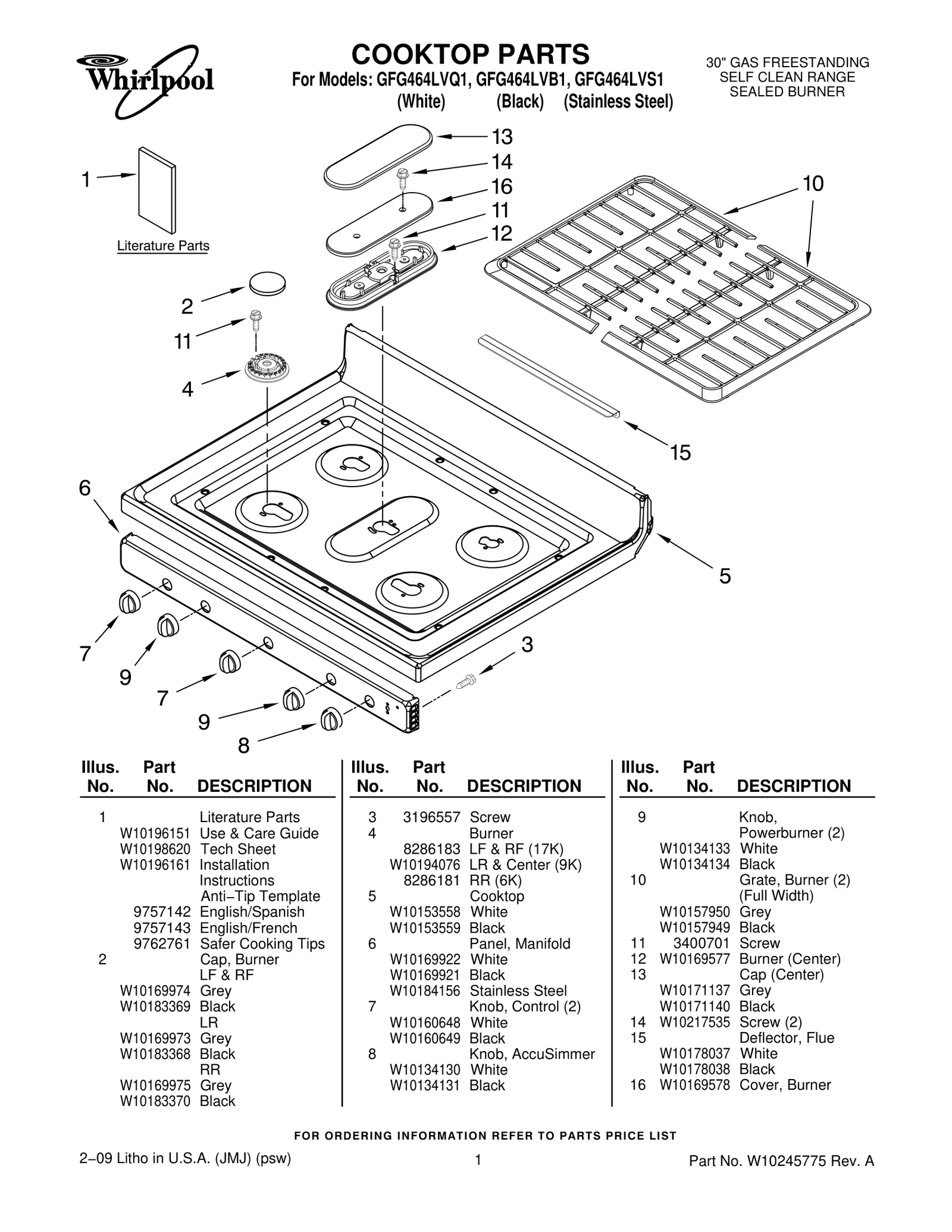

COOKTOP PARTS
Parts in COOKTOP PARTS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10196151 Use & Care Guide | - |
| 1 | – | W10198620 Tech Sheet | - |
| 1 | – | W10196161 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 |  | WPW10169974replaces W10169974 Cap, Burner LF & RF — Grey | $43.95 ApplianceParts Pro |
| 2 |  | WPW10183369replaces W10183369 Cap, Burner LF & RF — Black | $33.42 Part Advantage |
| 2 |  | Cap, Burner LF & RF — Grey | $53.82 Parts Dr |
| 2 |  | WPW10183368replaces W10183368 Cap, Burner LF & RF — Black | $43.72 Part Advantage |
| 2 |  | WPW10169975replaces W10169975 Cap, Burner LF & RF — Grey | - |
| 2 |  | WPW10183370replaces W10183370 Cap, Burner LF & RF — Black | $31.99 Part Advantage |
| 3 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
| 4 |  | WPW10406878replaces 8286183 LF & RF (17K) | $38.07 Part Advantage |
| 4 |  | WPW10406283replaces W10194076 LR & Center (9K) | $37.32 Part Advantage |
| 4 |  | WPW10406243replaces 8286181 RR (6K) | $12.98 Part Advantage |
| 5 | – | W10153558 Cooktop — White | - |
| 5 | – | W10153559 Cooktop — Black | - |
| 6 | – | W10169922 Panel, Manifold — White | - |
| 6 | | Panel, Manifold — Black | - |
| 6 | – | W10184156 Panel, Manifold — Stainless Steel | - |
| 7 |  | WPW10160648replaces W10160648 Knob, Control (2) — White | $14.64 Parts Dr |
| 7 |  | WPW10160649replaces W10160649 Knob, Control (2) — Black | $13.26 Parts Dr |
| 8 |  | WPW10134130replaces W10134130 Knob, AccuSimmer — White | $27.37 ApplianceParts Pro |
| 8 |  | WPW10134131replaces W10134131 Knob, AccuSimmer — Black | $11.27 Part Advantage |
| 9 | | W10134133NLA Knob, Powerburner (2) — White | Discontinued |
| 9 |  | WPW10134134replaces W10134134 Knob, Powerburner (2) — Black | $11.43 Part Advantage |
| 10 | | W10157950NLA Grate, Burner (2) — Grey | Discontinued |
| 10 | | Grate, Burner (2) — Black | - |
| 11 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 12 |  | WPW10336094replaces W10169577 Burner (Center) | $95.90 Parts Dr |
| 13 |  | Cap (Center) — Grey | $42.37 RepairClinic |
| 13 |  | WPW10171140replaces W10171140 Cap (Center) — Black | $79.46 Parts Dr |
| 14 |  | Screw (2) | $22.57 ApplianceParts Pro |
| 15 | | Deflector, Flue — White | - |
| 15 | – | W10178038 Deflector, Flue — Black | - |
| 16 |  | WPW10333445replaces W10169578 Cover, Burner | $60.41 Parts Dr |
