Model
Whirlpool GH7208XRB2
Microwave Hood Combination
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GH7208XRB2Microwave Hood Combination
7 diagrams180 parts

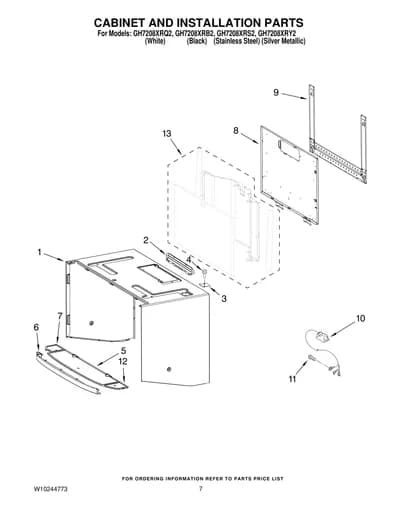

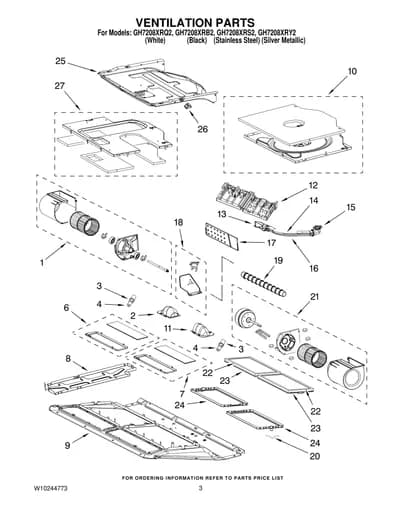

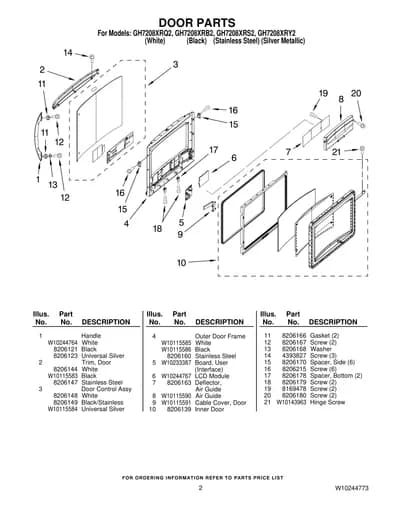

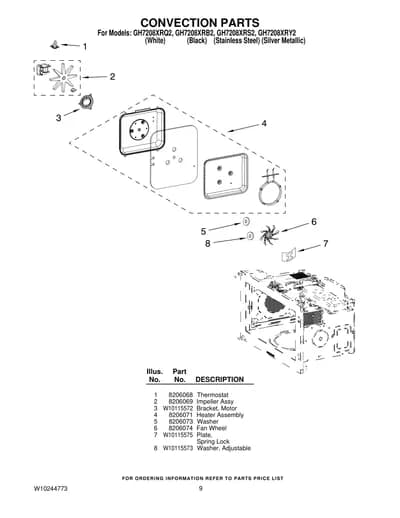

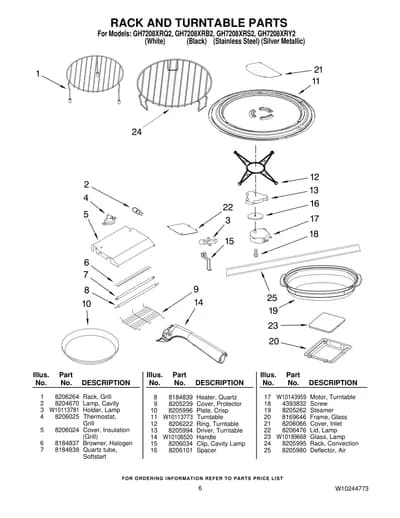

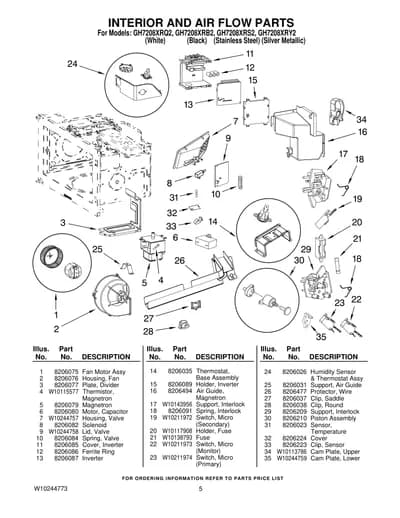

Parts Sections (7)
Diagram

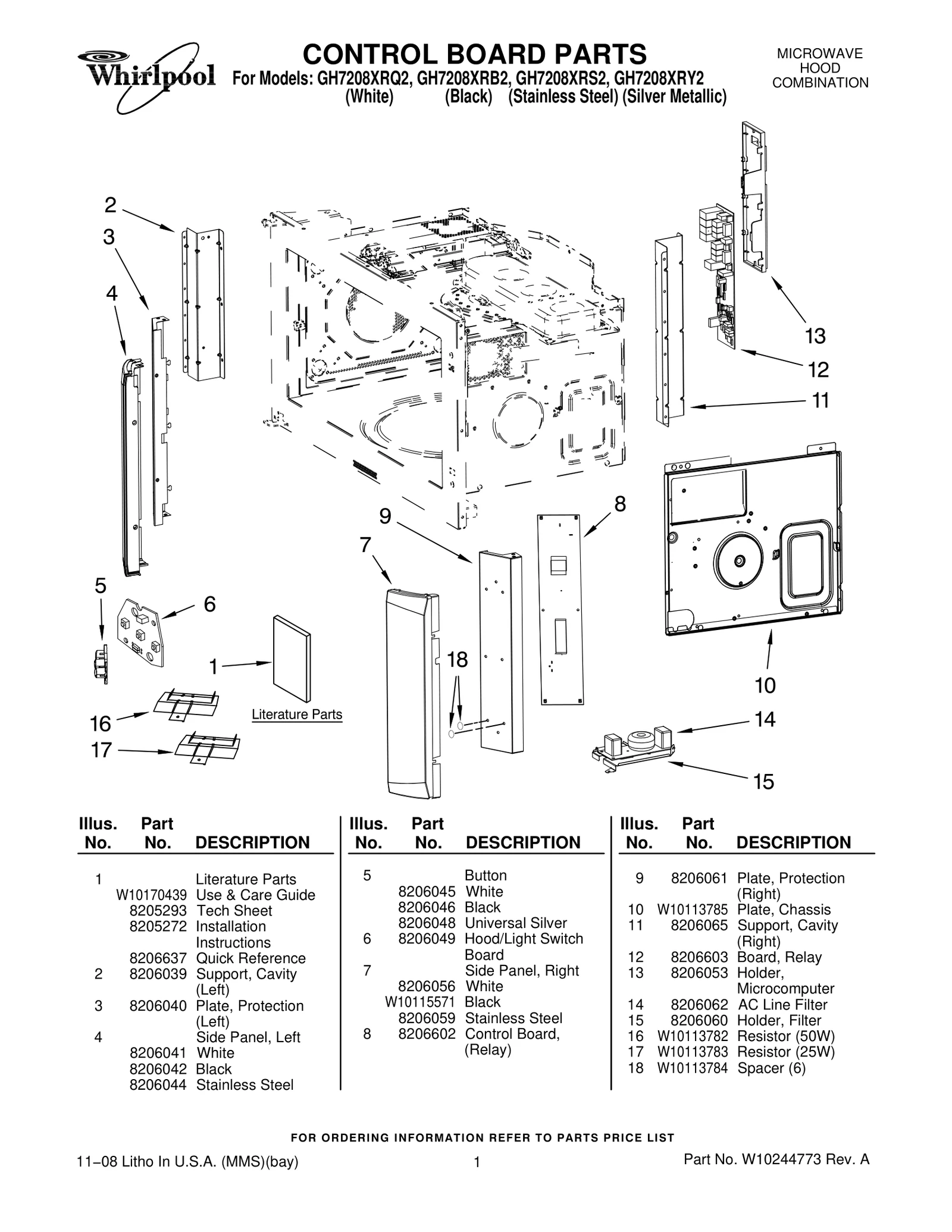

CONTROL BOARD PARTS
Parts in CONTROL BOARD PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10170439 Use & Care Guide | - |
| 1 | – | 8205293 Tech Sheet | - |
| 1 | – | 8205272 Installation Instructions | - |
| 1 | – | 8206637 Quick Reference | - |
| 2 |  | Support, Cavity | - |
| 3 | | W10527358replaces 8206040 Plate, Protection | $14.95 ApplianceParts Pro |
| 4 | – | 8206041 Side Panel, Left — White | - |
| 4 | – | 8206042 Side Panel, Left — Black | - |
| 4 | | 8206044NLA Side Panel, Left — Stainless Steel | Discontinued |
| 5 | – | 8206045 Button — White | - |
| 5 | | 8206046NLA Button — Black | Discontinued |
| 5 | | Button — Universal Silver | - |
| 6 | | 8206049NLA Hood/Light Switch Board | Discontinued |
| 7 | | Side Panel, Right — White | - |
| 7 | | Side Panel, Right — Black | - |
| 7 | | 8206059NLA Side Panel, Right — Stainless Steel | Discontinued |
| 8 | | 8206602NLA Control Board, | Discontinued |
| 9 | | Plate, Protection | - |
| 10 | | Plate, Chassis | - |
| 11 | | Support, Cavity | - |
| 12 |  | Board, Relay | - |
| 13 | | Holder, Microcomputer | - |
| 14 | | 8206062NLA AC Line Filter | Discontinued |
| 15 | | Holder, Filter | - |
| 16 | | Resistor (50W) | - |
| 17 |  | Resistor (25W) | - |
| 18 | | Spacer (6) | - |
