Model
Whirlpool GJC3054RB03
30" Electric Ceran Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GJC3054RB0330" Electric Ceran Cooktop
2 diagrams53 parts
Parts Sections (2)
Diagram

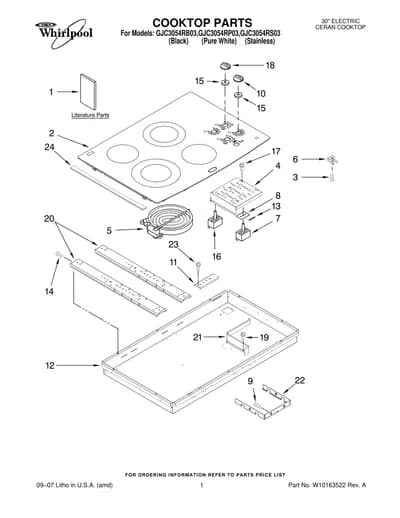

COOKTOP PARTS
Parts in COOKTOP PARTS
42 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 8286066NLA Installation Instructions — Cooktop | Discontinued |
| 1 | – | 8304571 Installation Instructions — Undercounter Oven | - |
| 1 | – | 8286614 Installation Instructions — Use & Care Guide | - |
| 1 | – | 8286339 Installation Instructions — Wiring Diagram | - |
| 1 | | 3191638NLA Installation Instructions — English | Discontinued |
| 1 | – | 9759133 Installation Instructions — French | - |
| 2 | | 8286941NLA Cooktop & Bracket Assembly — Black | Discontinued |
| 2 | | 8286953NLA Cooktop & Bracket Assembly — White | Discontinued |
| 3 |  | WP486754replaces 246119 Screw (8) | $5.95 ApplianceParts Pro |
| 4 | – | 8285928 Bracket, Switch Mounting | - |
| 5 |  | W10823711replaces 8523698 Element, Surface — 1200W − LR | $92.55 Part Advantage |
| 5 |  | W10823699replaces 8523697 Element, Surface — 1500W − RF | $92.39 Parts Dr |
| 5 | | 8285937NLA Element, Surface — 2000/1000W − RR | Discontinued |
| 5 |  | W10823692replaces 4453909 Element, Surface — 2500/1200W − LF | $119.42 Parts Dr |
| 6 |  | Spring,Locator (8) | $7.15 ApplianceParts Pro |
| 7 |  | WP9759474replaces 9759474 Dual (2) | $66.64 Part Advantage |
| 7 |  | WP3191049replaces 3191049 Switch, Infinite — Silver | $66.87 Part Advantage |
| 7 |  | WP3191050replaces 3191050 Switch, Infinite — Yellow | $70.13 Part Advantage |
| 8 |  | Seal, Switch Cover | $27.77 Part Advantage |
| 9 |  | W10491985replaces 3196160 Screw | $5.00 RepairClinic |
| 10 |  | Knob, Control (4) — White | - |
| 10 |  | WP8286043BLreplaces 8286043BL Knob, Control (4) — Black | $10.83 Part Advantage |
| 11 |  | 8186533replaces 4455917 Bracket, Mounting | $33.49 Parts Dr |
| 12 | | Box, Burner | - |
| 13 |  | W10491984replaces 3192439 Seal, Limiter (4) | $6.20 Parts Dr |
| 14 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 15 |  | Seal, Infinite Switch (5) | $28.85 Part Advantage |
| 16 |  | WP9762441replaces 9762441 Switch, Rotary Accusimer | $57.53 Part Advantage |
| 17 |  | WP486579replaces 311865 Screw | $4.95 ApplianceParts Pro |
| 18 |  | 8286044BLreplaces 8286044WH Knob, Accusimer — White | $9.47 Parts Dr |
| 18 | | Knob, Accusimer — Black | $9.47 Parts Dr |
| 19 | | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 20 | | Rail, Element | - |
| 21 | – | 8285949 Shield, Heat Control | - |
| 21 | | 3191839NLA Seal | Discontinued |
| 21 | | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 22 | – | 9760762 Shield, Heat | - |
| 22 | | Seal | - |
| 23 |  | WP3400093replaces 3400093 Screw | $3.72 Parts Dr |
| 24 |  | WPW10142238replaces W10142238 Trim, Cooktop — Right | - |
| 24 | | W10142237NLA Trim, Cooktop — Left | Discontinued |
| 24 |  | WP8286642replaces 8286642 Tape, Foam | $60.68 Parts Dr |
