Model
Whirlpool GJD3044RB03
30" Electric Built−In Downdrdaft Cooktop
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GJD3044RB0330" Electric Built−In Downdrdaft Cooktop
3 diagrams62 parts
Parts Sections (3)

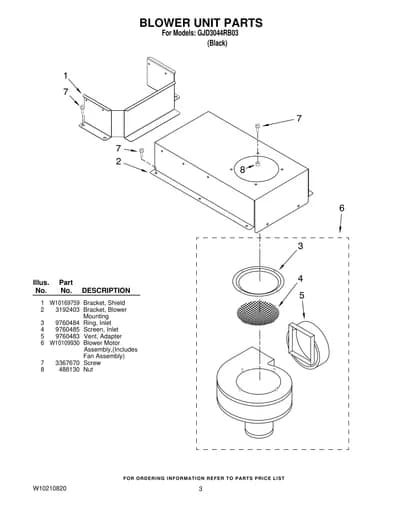

Diagram

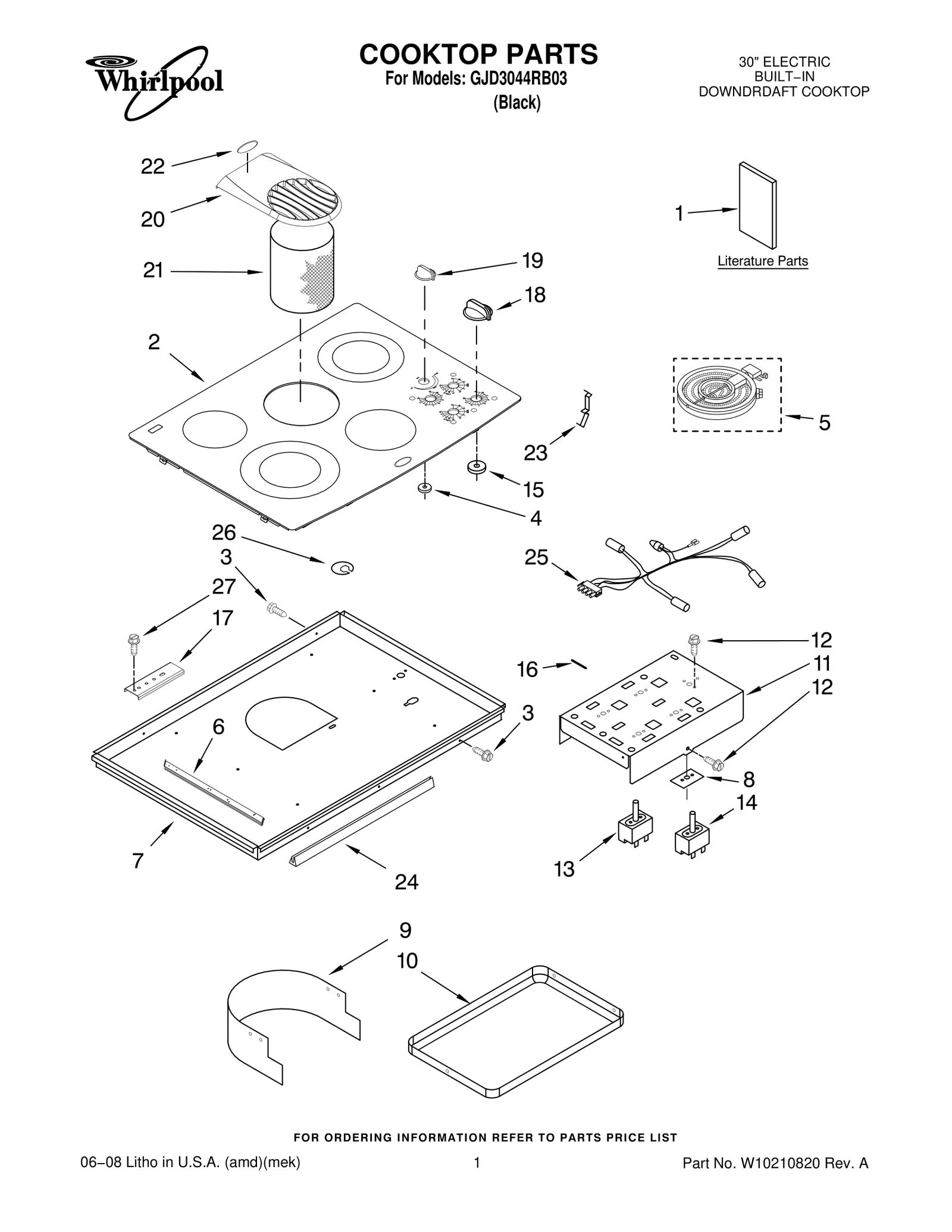

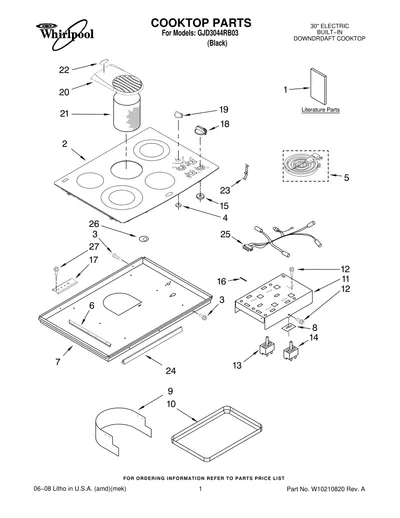

COOKTOP PARTS
Parts in COOKTOP PARTS
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8286240 Installation Instructions | - |
| 1 | – | 8286343 Wiring Diagram | - |
| 1 | – | W10162166 Owners Manual Safe Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |

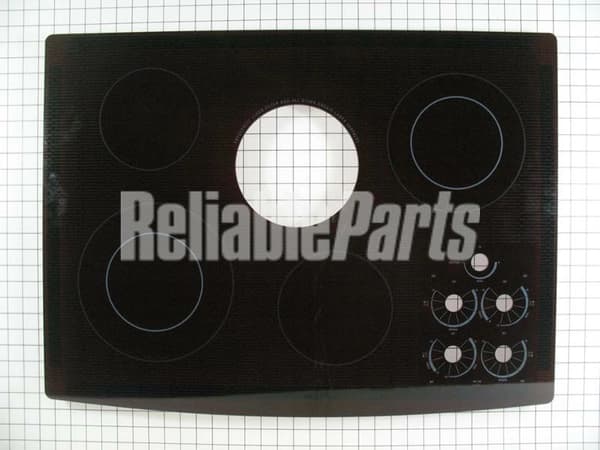

| 2 |  | W10239873replaces W10141010 Cooktop, Glass & Bracket Assembly | $261.47 Parts Dr |
| 3 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 4 |  | WP3188425replaces 3191387 Seal, Switch 2" | $29.33 Part Advantage |
| 5 |  | W10823711replaces 8523698 Element, Surface — LR 1200W | $92.55 Part Advantage |
| 5 |  | W10823692replaces 4453909 Element, Surface — LF 2500/1200W | $119.42 Parts Dr |
| 5 |  | 8285937NLA Element, Surface — RR 2000/1000W | Discontinued |
| 5 |  | W10823699replaces 8523697 Element, Surface — RF 1500W | $92.39 Parts Dr |
| 6 | – | 8285933 Rail, Element — Right | - |
| 6 | – | 8286054 Rail, Element — Left | - |
| 7 | – | 8285809 Box, Burner | - |
| 8 |  | Seal Switch Cover | $27.77 Part Advantage |
| 9 | – | W10169758 Shield, Vent | - |
| 9 |  | WP3177991replaces 3177991 Screw | $3.74 Parts Dr |
| 10 | – | 3190656 Drip Bowl | - |
| 11 | – | 4455354 Bracket, Control Mounting | - |
| 12 |  | WP486579replaces 311865 Screw | $4.95 ApplianceParts Pro |
| 13 |  | WP4456836replaces 4456836 Switch, Speed Control | $98.20 Part Advantage |
| 14 |  | WP3191049replaces 3191049 LR,RF | $66.87 Part Advantage |
| 14 |  | WP9759474replaces 9759474 RR,LF | $66.64 Part Advantage |
| 15 |  | Seal, Switch | $28.85 Part Advantage |
| 16 |  | W10491984replaces 3192439 Seal, Limiter | $6.20 Parts Dr |
| 17 |  | 8186533replaces 4455917 Bracket, Mounting | $33.49 Parts Dr |

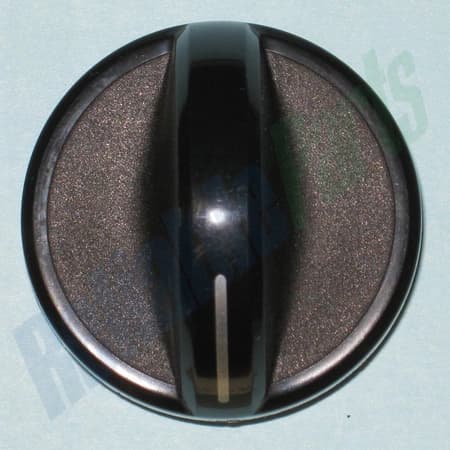

| 18 |  | WP8286043BLreplaces 8286043BL Knob, Control | $10.83 Part Advantage |
| 19 |  | Knob, Downdraft | $56.71 RepairClinic |
| 20 | | 8285115NLA Grille, Air | Discontinued |
| 21 | | Filter, Grease | - |
| 22 | | Badge | - |
| 23 |  | Spring, Locator | $7.15 ApplianceParts Pro |
| 24 | – | W10137040 Gasket, Vent Shield | - |
| 25 | | Light, Hot Surface Indicator | - |
| 26 | – | 3193094 Plate, Cover | - |
| 27 |  | WP3400093replaces 3400093 Screw | $3.72 Parts Dr |
