Model
Whirlpool GLS3074VS01
30" Gas Cooktop

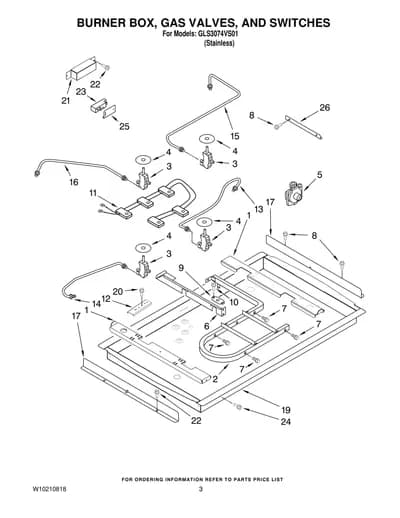

Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GLS3074VS0130" Gas Cooktop
3 diagrams63 parts
Parts Sections (3)
Diagram

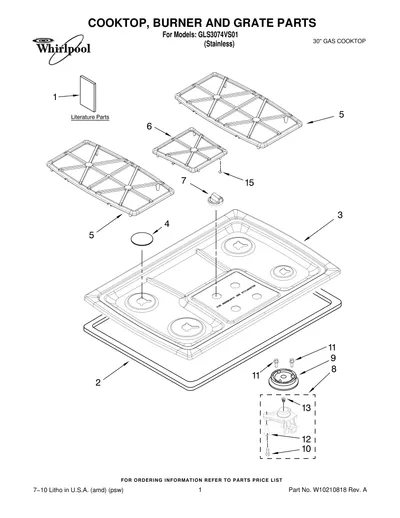

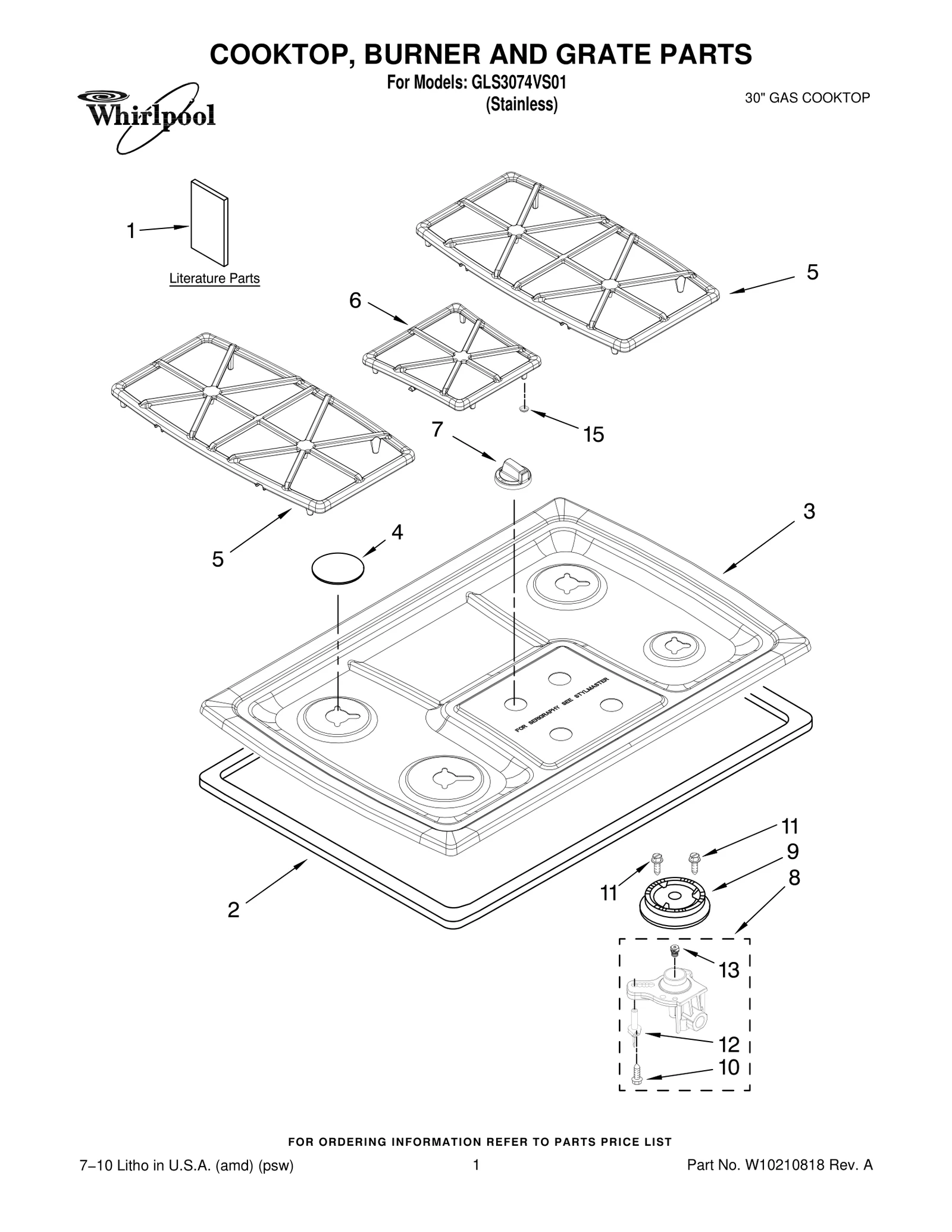

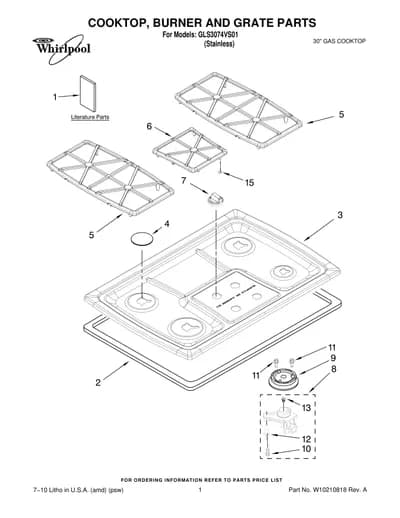

COOKTOP, BURNER AND GRATE PARTS
Parts in COOKTOP, BURNER AND GRATE PARTS
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10131955 Installation Instructions | - |
| 1 | – | 8304571 Undercounter Installation | - |
| 1 |  | W10169218NLA Converstion Instructions | Discontinued |
| 1 | – | W10203459 Use & Care Guide Safe Cooking Tips | - |
| 1 | | 3191638NLA English | Discontinued |
| 1 | – | 9759133 French | - |
| 2 | | Seal, Foam | - |
| 3 | | Cooktop | - |
| 4 |  | WP8286153CBreplaces 8286153CB Burner Caps — RF | $54.24 PartSelect |
| 4 |  | WP8286154CBreplaces 8286154CB Burner Caps — LR | $64.69 PartSelect |
| 4 |  | WP8286155CBreplaces 8286155CB Burner Caps — RR | $77.75 PartSelect |
| 4 |  | WP8286156CBreplaces 8286156CB Burner Caps — LF | $62.12 Part Advantage |
| 5 |  | WP9759505replaces 9759505 Grate, Burner | $134.95 ApplianceParts Pro |
| 6 | | 9759509NLA Grate, Center | Discontinued |
| 7 |  | WPW10180180replaces W10180180 Knob, Control | $16.54 Part Advantage |
| 8 |  | WPW10128448replaces W10128448 Holder, Orifice — RF | $62.08 Part Advantage |
| 8 |  | WPW10128450replaces W10128450 Holder, Orifice — LR | $43.59 Part Advantage |
| 8 |  | WPW10128451replaces W10128451 Holder, Orifice — RR | $33.36 Part Advantage |
| 8 | | 8287043NLA Holder, Orifice — LF | Discontinued |
| 9 |  | WPW10406243replaces 8286181 Head, Burner — RF | $12.98 Part Advantage |
| 9 |  | WPW10406283replaces 8286184 Head, Burner — LR | $37.32 Part Advantage |
| 9 |  | WPW10406797replaces 8286182 Head, Burner — RR | $33.54 Part Advantage |
| 9 |  | WPW10406878replaces 8286183 Head, Burner — LF | $38.07 Part Advantage |
| 10 |  | WP8273062replaces 8273062 Screw | $2.30 Part Advantage |
| 11 |  | WP3368921replaces 3368921 Screw | $1.48 Part Advantage |
| 12 |  | WP9782116replaces 9782116 Electrode | $29.47 Part Advantage |

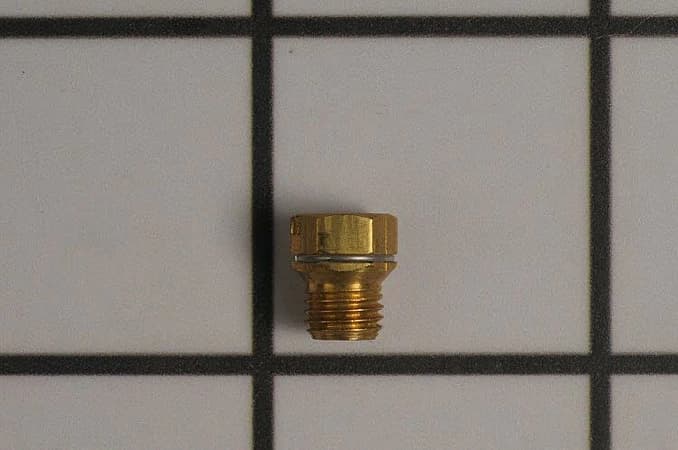

| 13 |  | WP3192529replaces 3192529 Orifice — RF | - |
| 13 |  | WP3192523replaces 3192523 Orifice — LR | $56.33 PartSelect |
| 13 |  | Orifice — RR | - |
| 13 | | Orifice — LF | - |
| 15 |  | 814323replaces 3186678 Grommet, Grate | $4.94 Part Advantage |
