Model
Whirlpool GLT3057RB03
30" Sealed Gas Cooktop

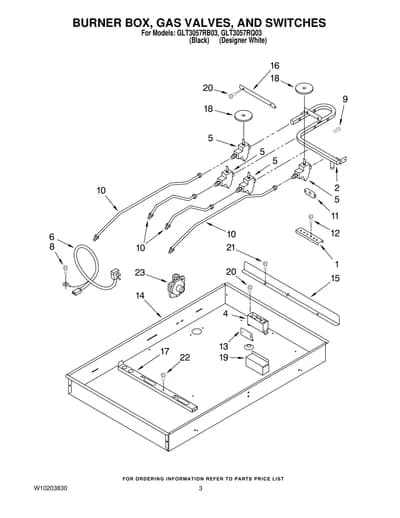

Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GLT3057RB0330" Sealed Gas Cooktop
2 diagrams73 parts
Parts Sections (2)
Diagram

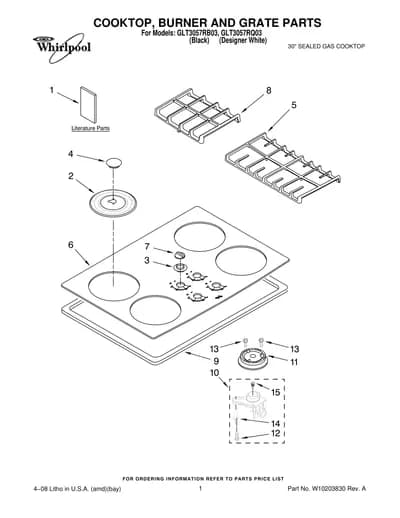

COOKTOP, BURNER AND GRATE PARTS
Parts in COOKTOP, BURNER AND GRATE PARTS
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8286304 Installation Instructions | - |
| 1 | – | 8304571 Undercounter, Installation Instructions | - |
| 1 | – | W10162190 Use & Care Guide Safe Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 1 |  | 8286620NLA L.P. Conversion Instructions | Discontinued |
| 2 | | 3191307NLA Bowl, Burner 6K (RR) — Black | Discontinued |
| 2 | | 3191308NLA Bowl, Burner 6K (RR) — White | Discontinued |
| 2 | | WP3424F031-09replaces 3191302 Bowl, Burner 6K (RR) — Black | - |
| 2 | | WP3424F031-81replaces 3191303 Bowl, Burner 6K (RR) — White | $138.10 RepairClinic |
| 3 |  | W10854242replaces 3180079 Grommet, Glass — Black | $3.58 Part Advantage |
| 3 |  | WP3180081replaces 3180081 Grommet, Glass — White | $3.47 Part Advantage |
| 4 |  | WP8286153CBreplaces 8286153CB Cap, Burner 6K (RR) — Coal Matte Black | $54.24 PartSelect |
| 4 |  | WP8286153CGreplaces 8286153CG Cap, Burner 6K (RR) — Cumberland Gray | - |
| 4 |  | WP8286154CBreplaces 8286154CB Cap, Burner 6K (RR) — Coal Matte Black | $64.69 PartSelect |
| 4 |  | WP8286154CGreplaces 8286154CG Cap, Burner 6K (RR) — Cumberland Gray | - |
| 4 |  | WP8286155CBreplaces 8286155CB Cap, Burner 6K (RR) — Coal Matte Black | $77.75 PartSelect |
| 4 |  | WP8286155CGreplaces 8286155CG Cap, Burner 6K (RR) — Cumberland Gray | $33.97 RepairClinic |
| 5 | | 8285892CBNLA Grate Left — Coal Matte Black | Discontinued |
| 5 | | 8285892CGNLA Grate Left — Cumberland Gray | Discontinued |
| 5 | | 8285894CBNLA Grate Left — Coal Matte Black | Discontinued |
| 5 | | 8285894CGNLA Grate Left — Cumberland Gray | Discontinued |
| 6 |  | W11399418replaces 8286102 Cooktop — Black | - |
| 6 | | 8286103NLA Cooktop — White | Discontinued |
| 7 |  | WP8286058BLreplaces 8286058BL Knob, Control (4) — Black | $12.29 Part Advantage |
| 7 |  | Knob, Control (4) — White | $16.31 RepairClinic |
| 8 | | Grate, Center — Coal Matte Black | - |
| 8 | – | 8285893CG Grate, Center — Cumberland Gray | - |
| 9 | | 3191932NLA Seal, Foam | Discontinued |
| 10 |  | WPW10128448replaces W10128448 6K (RR) | $62.08 Part Advantage |
| 10 |  | WPW10128451replaces W10128451 12K (LF,RF) | $33.36 Part Advantage |
| 10 |  | WPW10128450replaces W10128450 9K (LR) | $43.59 Part Advantage |
| 11 |  | WPW10406243replaces 8286181 Head, Burner — RF | $12.98 Part Advantage |
| 11 |  | WPW10406797replaces 8286182 LF, RF | $33.54 Part Advantage |
| 11 |  | WPW10406283replaces 8286184 Head, Burner — LR | $37.32 Part Advantage |
| 12 |  | WP8273062replaces 8273062 Screw | $2.30 Part Advantage |
| 13 |  | WP3368921replaces 3368921 Screw | $1.48 Part Advantage |
| 14 |  | WP9782116replaces 9782116 Electrode | $29.47 Part Advantage |
| 15 |  | WP3192529replaces 3192529 Orifice — RR | - |
| 15 |  | WP3192523replaces 3192523 Orifice — LR | $56.33 PartSelect |
| 15 |  | LF, RF Following Parts Not Illustrated Harness, Wire Ignitor | - |
| 15 |  | Orifice — 15" | $29.10 Part Advantage |
| 15 |  | Orifice — 28" | $35.03 RepairClinic |
| 15 |  | WP4449809replaces 4449809 Screw (4) | $2.41 Part Advantage |
| 15 |  | WP3400806replaces 3400806 Screw (2) | $2.30 Part Advantage |
