Whirlpool GMC305PRS02
30" Built−In Electric Combo Sensor/Sc (Gold Line)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GMC305PRS0230" Built−In Electric Combo Sensor/Sc (Gold Line)
10 diagrams204 parts

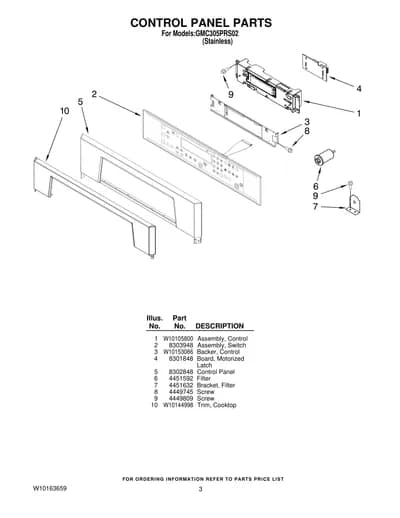

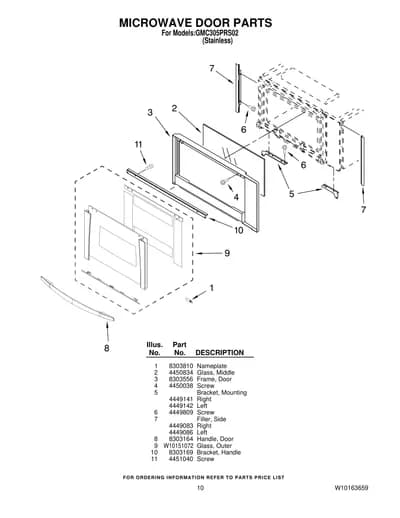

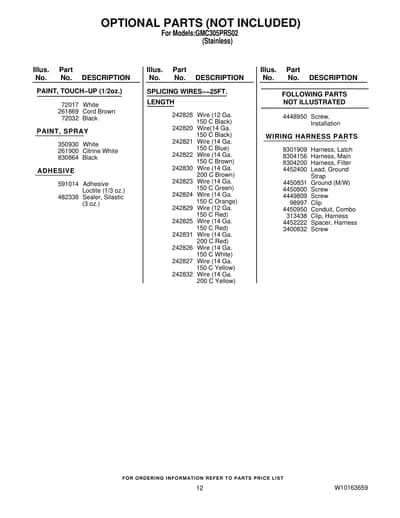

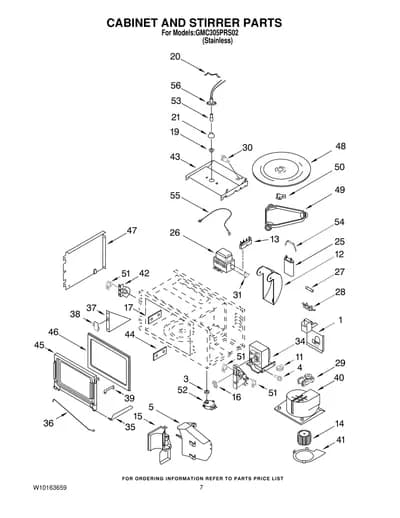

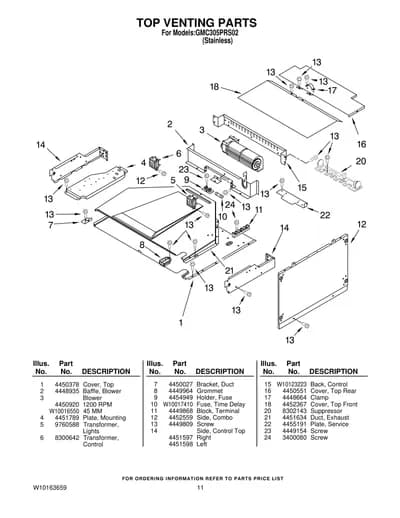

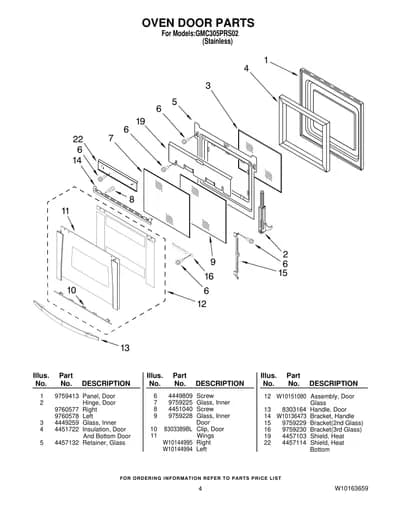

Parts Sections (10)
Diagram

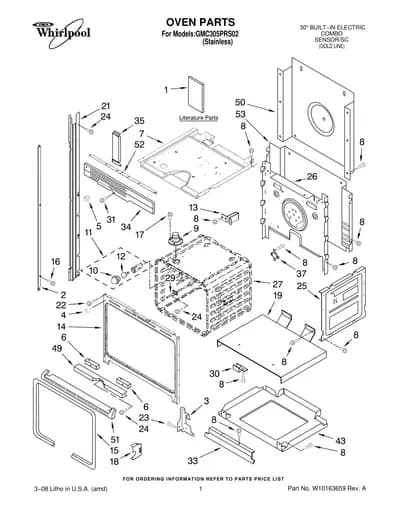

OVEN PARTS
Parts in OVEN PARTS
52 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8303655 Installation Instructions — English | - |
| 1 | – | 8303780 Installation Instructions — French | - |
| 1 | – | 8304078 Installation Instructions — English | - |
| 1 | – | 8304082 Installation Instructions — French | - |
| 1 | – | 8304077 Installation Instructions — English | - |
| 1 | – | 8304081 Installation Instructions — French | - |
| 1 | – | 8304173 Tech Sheet (Oven) Safer Cooking Tips | - |
| 1 |  | 3191638NLA Installation Instructions — English | Discontinued |
| 1 | – | 9759133 Installation Instructions — French | - |
| 2 | | W10145006NLA Trim, Side — Right | Discontinued |
| 2 | | W10145007NLA Trim, Side — Left | Discontinued |
| 3 |  | WP4455606replaces 4455606 Hinge, Receiver — Right | $54.41 Part Advantage |
| 3 |  | WP4455605replaces 4455605 Hinge, Receiver — Left | $54.41 Part Advantage |
| 4 |  | Bumper, Door | $4.44 Part Advantage |
| 5 |  | WP4448444replaces 4448444 Grommet, Mounting Rail | $4.32 Parts Dr |
| 6 | | Spacer, Foam | - |
| 7 | | 8303099NLA Top, Chassis | Discontinued |
| 8 |  | WP4449809replaces 4449809 Screw | $2.41 Part Advantage |
| 9 |  | W10861715replaces 4452158 Tube, Vent | - |
| 10 | | Lens, Light | - |
| 11 |  | WPW10734065replaces W10009930 Assembly, Oven Light | - |
| 12 |  | WP4173175replaces 4452166 Bulb, Light | $27.68 Part Advantage |
| 13 | – | 8300791 Bracket, Combo | - |
| 14 | | WPW10115831replaces W10130368 Frame, Front | - |
| 15 |  | W11675844replaces 4455382 Gasket, Door | $25.91 Part Advantage |
| 16 |  | WP3400832replaces 3400832 Screw | $2.30 Part Advantage |
| 17 |  | W11233072replaces 3196176 Screw | $8.78 Part Advantage |

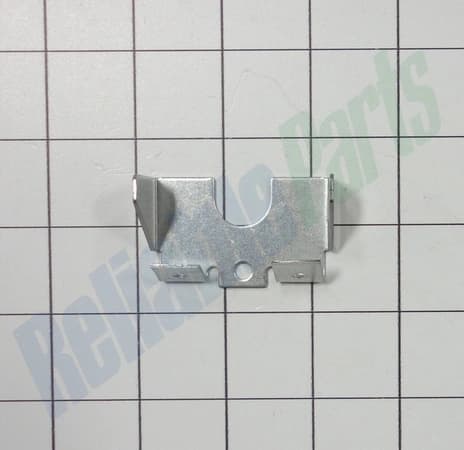

| 18 |  | Bracket, Mounting | - |
| 19 | – | 4451478 Support, Insulation | - |
| 21 | | Rail, Side — Right | - |
| 21 | | 8303118NLA Rail, Side — Left | Discontinued |
| 22 |  | WPW10650400replaces 4449040 Screw | - |
| 23 |  | WP4449743replaces 4449743 Screw | $5.00 RepairClinic |
| 24 |  | WP4449154replaces 4449154 Screw | $3.72 Parts Dr |
| 25 | | W10782197replaces 4455641 Side, Chassis | $40.60 RepairClinic |
| 26 | | Back, Chassis | - |
| 27 | – | N/S Liner, Oven | - |
| 29 |  | WPW10131825replaces 4455636 Sensor | $50.18 Part Advantage |
| 30 | | Bracket, Support | - |
| 31 |  | WP4450038replaces 4450038 Screw | $2.30 Part Advantage |

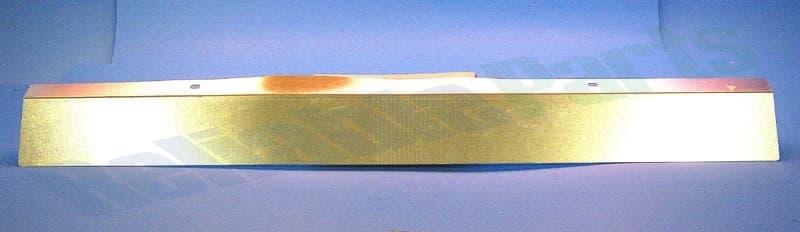

| 33 |  | Deflector, Vent | $43.73 RepairClinic |
| 34 | | 8302592NLA Vent, Center | Discontinued |
| 35 | – | 4449906 Ext−Filler | - |
| 37 |  | WP9759243replaces 9759243 Thermostat (TOD) | $28.11 Part Advantage |
| 43 | | 9759713NLA Base, Chassis | Discontinued |
| 49 |  | WP4448933replaces 4448933 Retainer, Gasket | $5.00 RepairClinic |
| 50 |  | WP4451747replaces 4451747 Cover, Back | $36.75 RepairClinic |
| 51 | | W10145001NLA Trim, Vent Bottom | Discontinued |
| 52 | | Vent, Control | - |
| 53 | – | 4451756 Chassis, Back NOT ILLUSTRATED INSULATION | - |
| 53 |  | WPW10708464replaces 4449316 Insulation, Wrap | $326.47 ApplianceParts Pro |
| 53 | | 4450365NLA Insulation, Back | Discontinued |
