Model
Whirlpool GR563LXST2
30" Electric Ceran
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GR563LXST230" Electric Ceran
6 diagrams197 parts

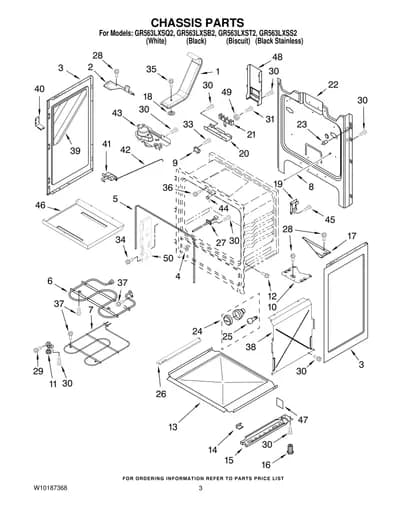

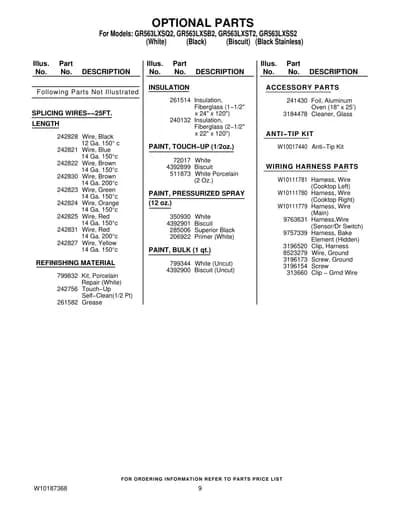

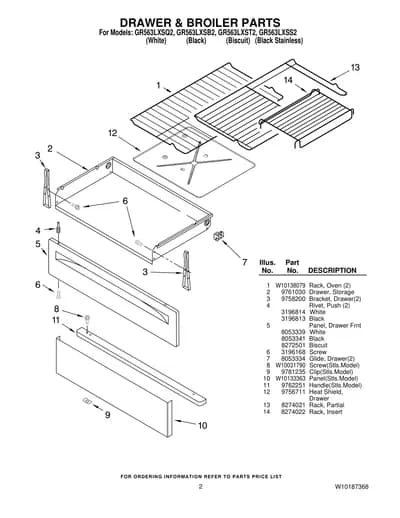

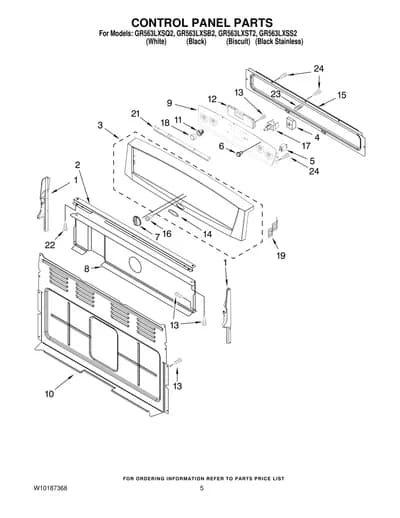

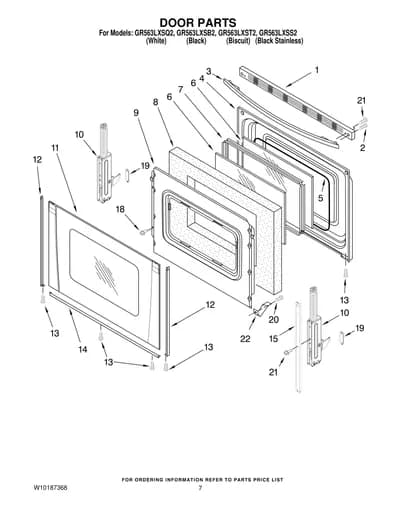

Parts Sections (6)
Diagram

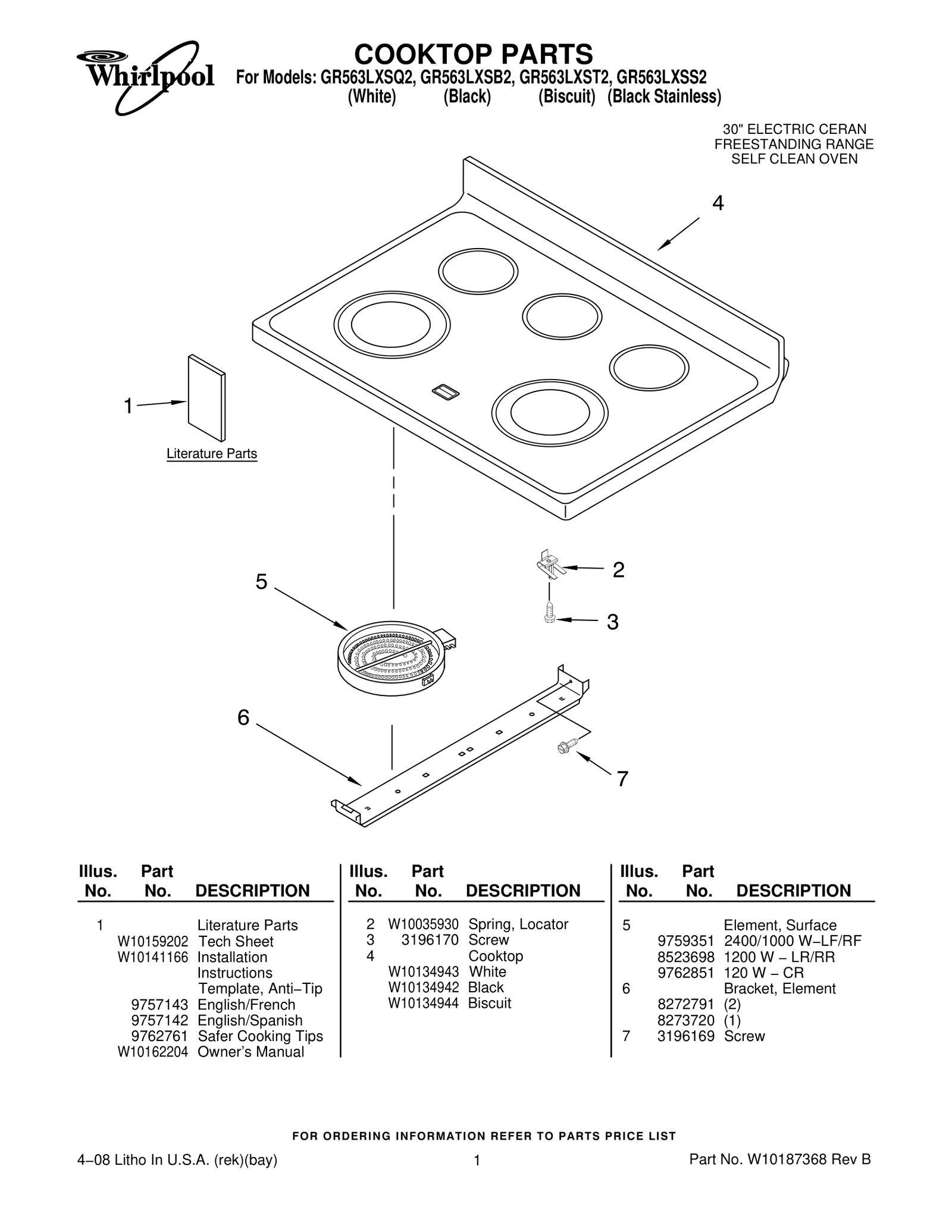

COOKTOP PARTS
Parts in COOKTOP PARTS
17 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10159202 Tech Sheet | - |
| 1 | – | W10141166 Installation Instructions Template, Anti−Tip | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 1 | – | W10162204 Owner’s Manual | - |
| 2 |  | 3149191replaces W10035930 Spring, Locator | $6.29 Parts Dr |
| 3 |  | WP3196170replaces 3196170 Screw | $5.00 RepairClinic |
| 4 | – | W10134943 Cooktop — White | - |
| 4 | – | W10134942 Cooktop — Black | - |
| 4 | – | W10134944 Cooktop — Biscuit | - |
| 5 |  | W10823692replaces 9759351 Element, Surface — 2400/1000 W−LF/RF | $119.42 Parts Dr |
| 5 |  | W10823711replaces 8523698 Element, Surface — 1200 W − LR/RR | $92.55 Part Advantage |
| 5 |  | WP9762851replaces 9762851 Element, Surface — 120 W − CR | - |
| 6 | | (2) | - |
| 6 | – | 8273720 (1) | - |
| 7 |  | WP3196557replaces 3196169 Screw | $2.30 Part Advantage |
