Model
Whirlpool GS773LXSQ1
30" Gas Freestanding Self Clean Range Sealed Burner Gold Line
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GS773LXSQ130" Gas Freestanding Self Clean Range Sealed Burner Gold Line
7 diagrams233 parts
Parts Sections (7)
Diagram

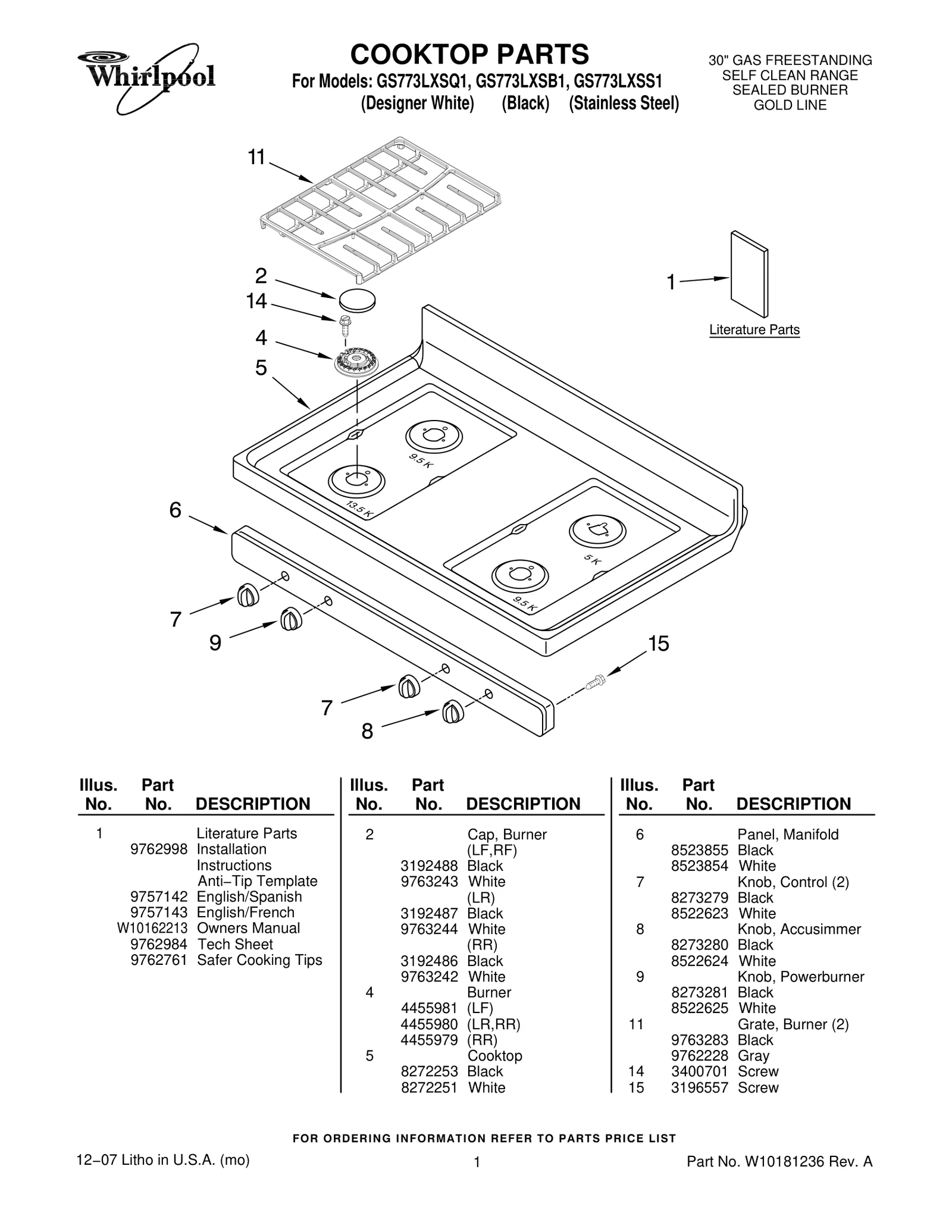

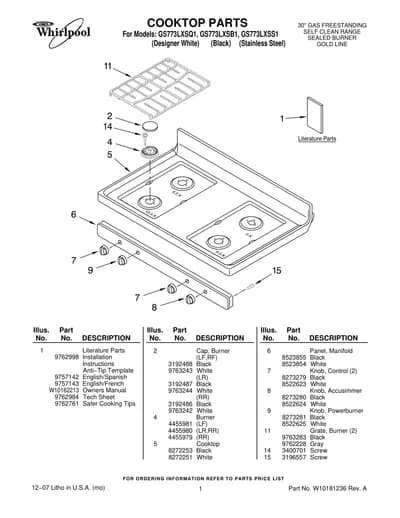

COOKTOP PARTS
Parts in COOKTOP PARTS
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9762998 Installation Instructions Anti−Tip Template | - |
| 1 | – | 9757142 English/Spanish | - |
| 1 | – | 9757143 English/French | - |
| 1 | – | W10162213 Owners Manual | - |
| 1 |  | 9762984NLA Tech Sheet | Discontinued |
| 1 | – | 9762761 Safer Cooking Tips | - |
| 2 | | 3192488NLA Cap, Burner — Black | Discontinued |
| 2 | | 9763243NLA Cap, Burner — White | Discontinued |
| 2 | | 3192487NLA Cap, Burner — Black | Discontinued |
| 2 | | Cap, Burner — White | - |
| 2 |  | WP3192486replaces 3192486 Cap, Burner — Black | - |
| 2 | | 9763242NLA Cap, Burner — White | Discontinued |
| 4 |  | WP4455981replaces 4455981 (LF) | $75.95 ApplianceParts Pro |
| 4 |  | WP4455980replaces 4455980 (LR,RR) | $38.12 Part Advantage |
| 4 |  | W10888931replaces 4455979 (RR) | - |
| 5 |  | W11213958replaces 8272253 Cooktop — Black | - |
| 5 |  | W11213959replaces 8272251 Cooktop — White | - |
| 6 |  | Panel, Manifold — Black | - |
| 6 |  | WP8523854replaces 8523854 Panel, Manifold — White | $137.95 ApplianceParts Pro |
| 7 |  | 8273279NLA Knob, Control (2) — Black | Discontinued |
| 7 |  | W11242931replaces 8522623 Knob, Control (2) — White | - |
| 8 | | 8273280NLA Knob, Accusimmer — Black | Discontinued |
| 8 | | W11242931replaces 8522624 Knob, Accusimmer — White | - |
| 9 | | 8273281NLA Knob, Powerburner — Black | Discontinued |
| 9 | | W11242931replaces 8522625 Knob, Powerburner — White | - |
| 11 |  | 9763283NLA Grate, Burner (2) — Black | Discontinued |
| 11 | | Grate, Burner (2) — Gray | - |
| 14 |  | WP3368921replaces 3400701 Screw | $1.48 Part Advantage |
| 15 |  | WP3196557replaces 3196557 Screw | $2.30 Part Advantage |
