Model
Whirlpool GU2200XTSB2
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GU2200XTSB2Undercounter Dishwasher
12 diagrams167 parts
Parts Sections (12)

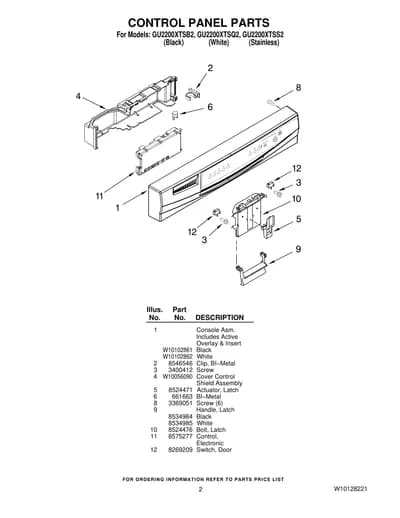

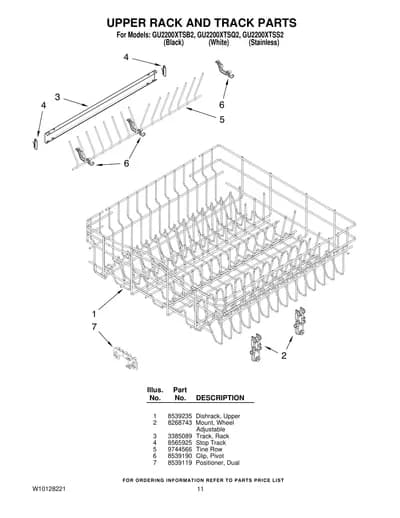

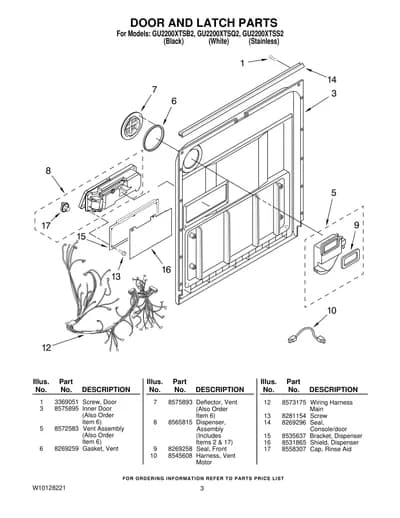

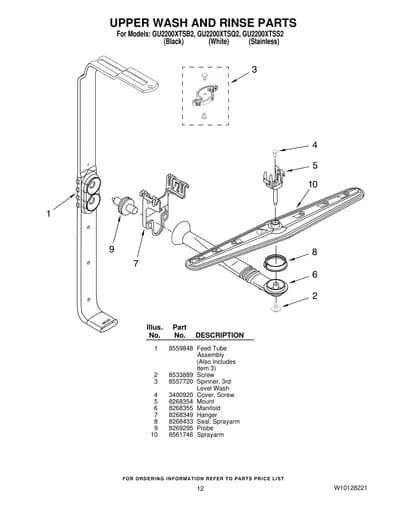

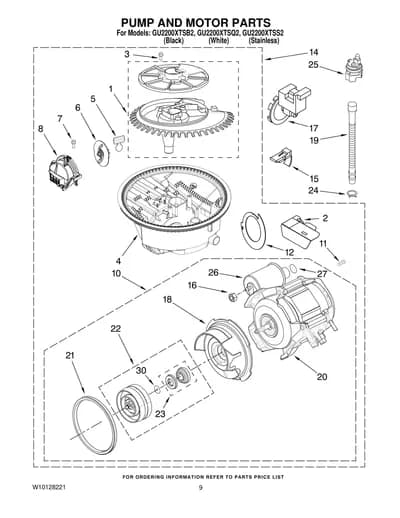

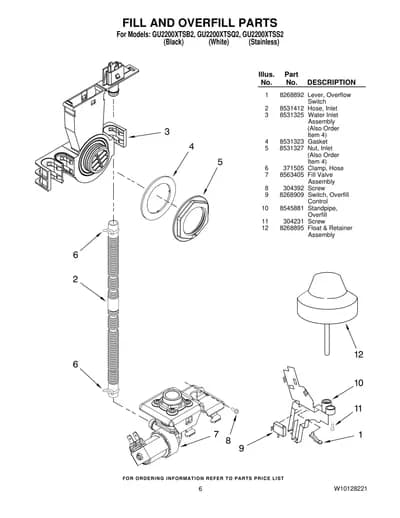

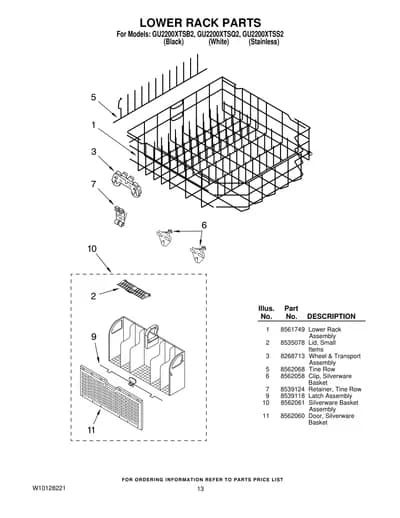

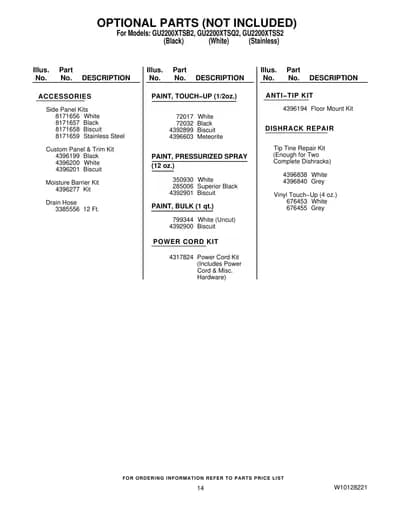

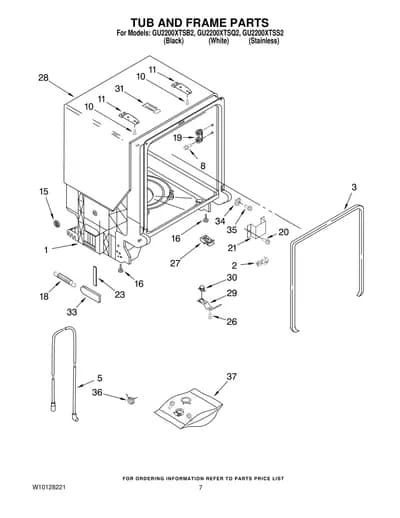

Diagram

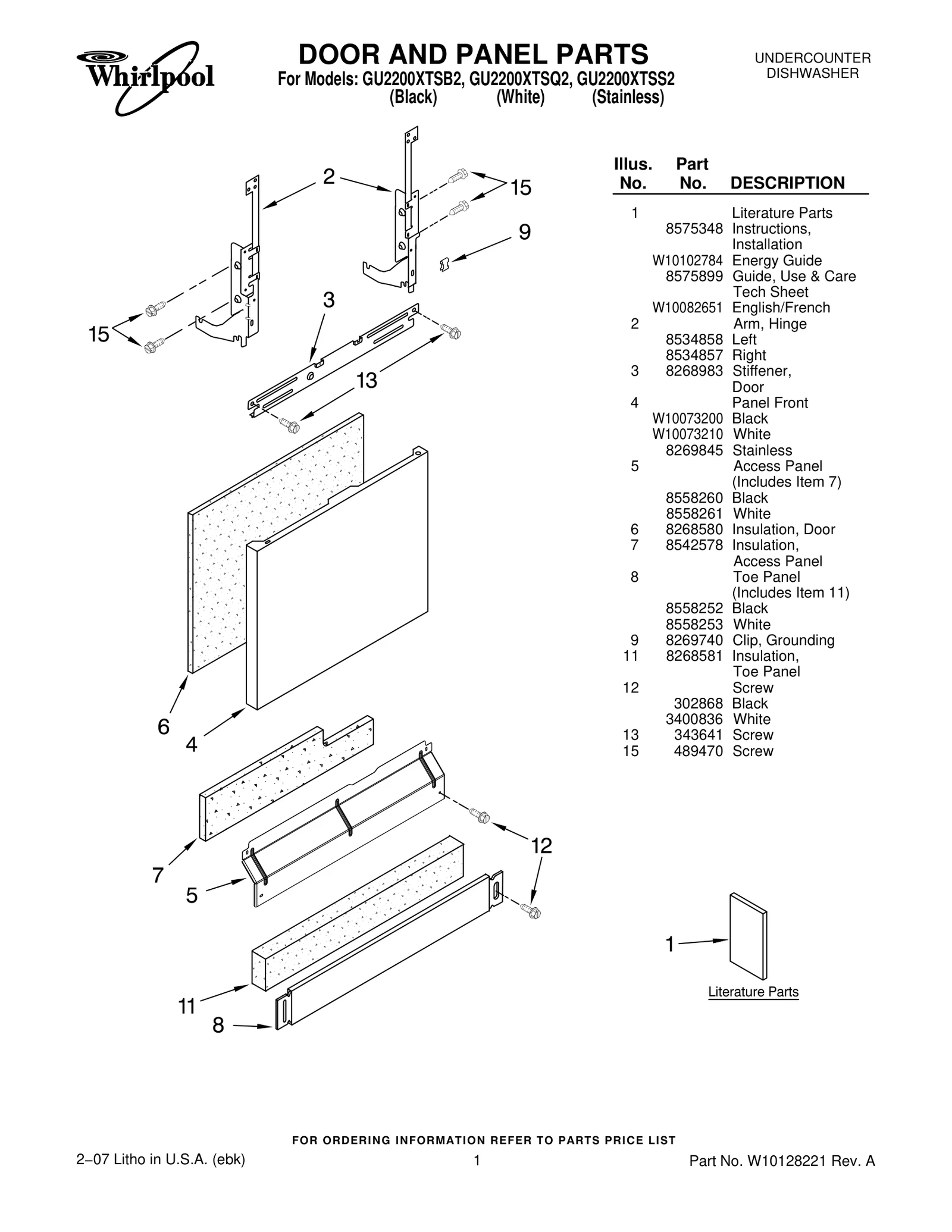

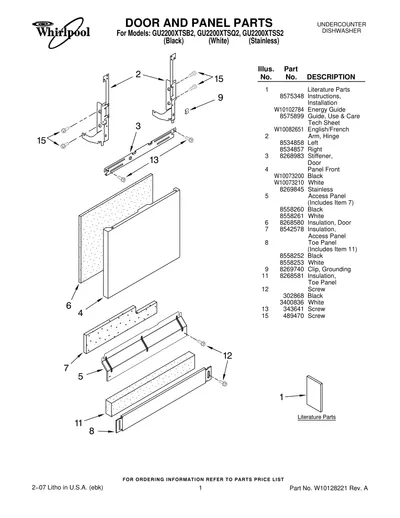

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8575348 Instructions, Installation | - |
| 1 | – | W10102784 Energy Guide | - |
| 1 | – | 8575899 Guide, Use & Care Tech Sheet | - |
| 1 | – | W10082651 English/French | - |
| 2 |  | W11613573replaces 8534858 Arm, Hinge — Left | $41.95 ApplianceParts Pro |
| 2 |  | W11613572replaces 8534857 Arm, Hinge — Right | $33.01 Parts Dr |
| 3 |  | 8268983NLA Stiffener, Door | Discontinued |
| 4 |  | W10301571replaces W10073200 Panel Front — Black | $158.95 ApplianceParts Pro |
| 4 | | W10073210NLA Panel Front — White | Discontinued |
| 4 |  | W10301577replaces 8269845 Panel Front — Stainless | - |
| 5 |  | W11763736replaces 8558260 Access Panel — Black | $16.47 Part Advantage |
| 5 | | Access Panel — White | - |
| 6 |  | WPW10073520replaces 8268580 Insulation, Door | $50.57 ApplianceParts Pro |
| 7 |  | W10831329replaces 8542578 Insulation, Access Panel | $15.72 Part Advantage |
| 8 |  | W10871196replaces 8558252 Toe Panel — Black | $66.43 Amazon |
| 8 |  | WPW10586591replaces 8558253 Toe Panel — White | $154.38 RepairClinic |
| 9 | | Clip, Grounding | - |
| 11 | | W10831329replaces 8268581 Insulation, Toe Panel | $15.72 Part Advantage |
| 12 |  | WP302868replaces 302868 Screw — Black | $2.30 Part Advantage |
| 12 |  | WP3400836replaces 3400836 Screw — White | $2.30 Part Advantage |
| 13 |  | WP681414replaces 343641 Screw | $2.30 Part Advantage |
| 15 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
