Model
Whirlpool GU2275XTVB0
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GU2275XTVB0Undercounter Dishwasher
12 diagrams175 parts

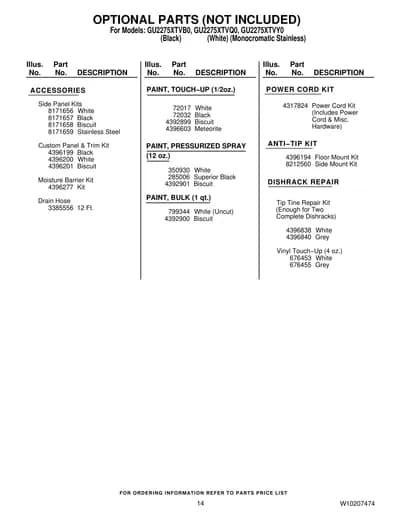

Parts Sections (12)

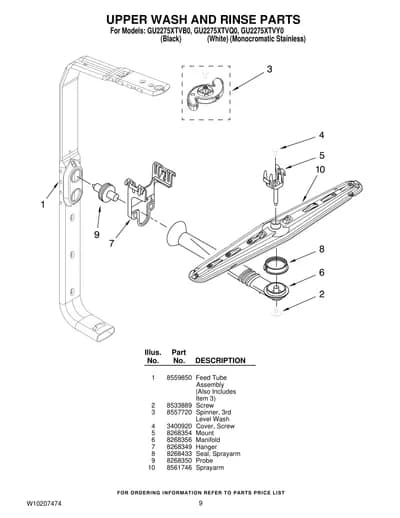

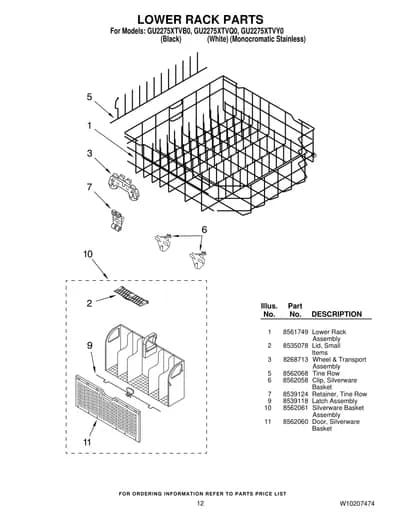

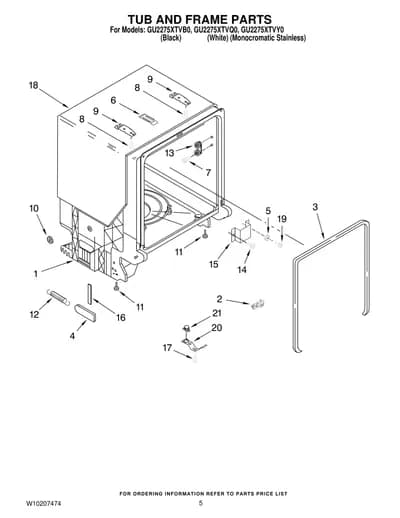

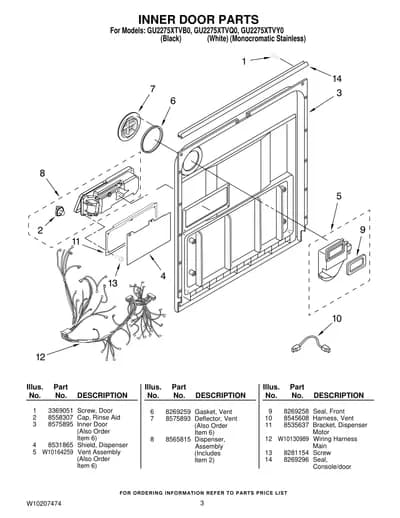

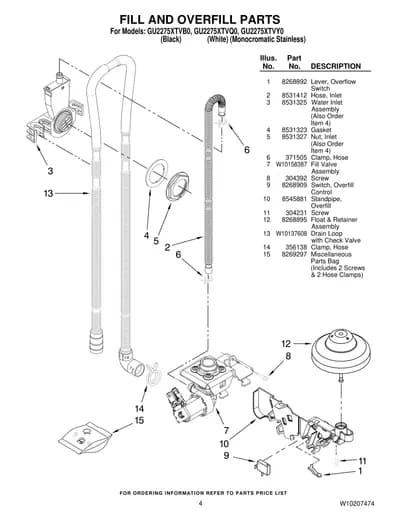

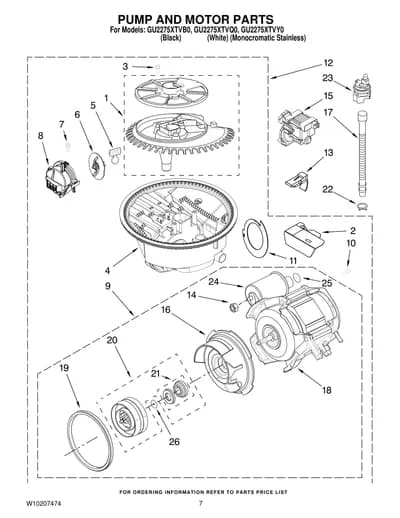

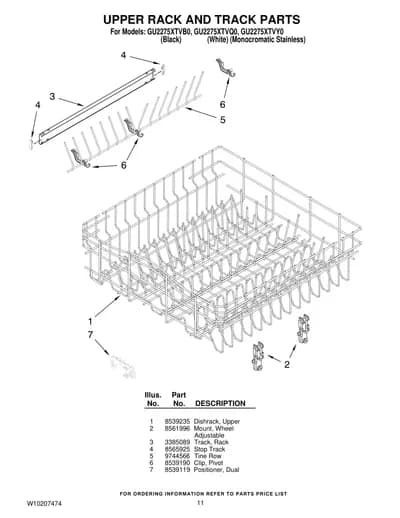

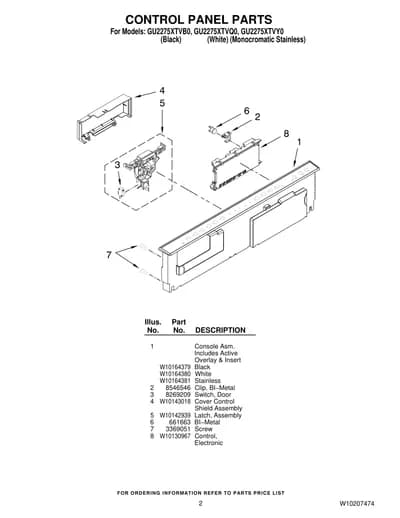

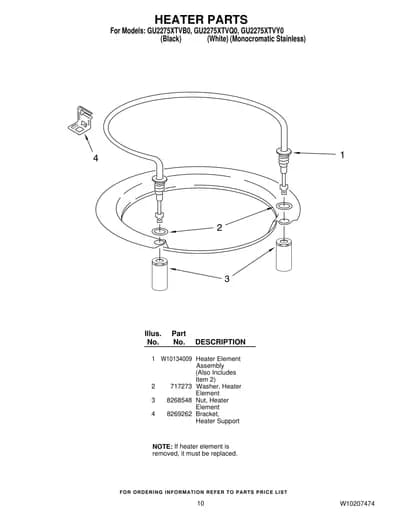

Diagram

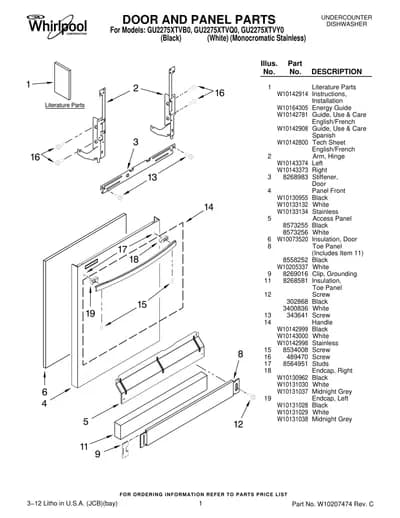

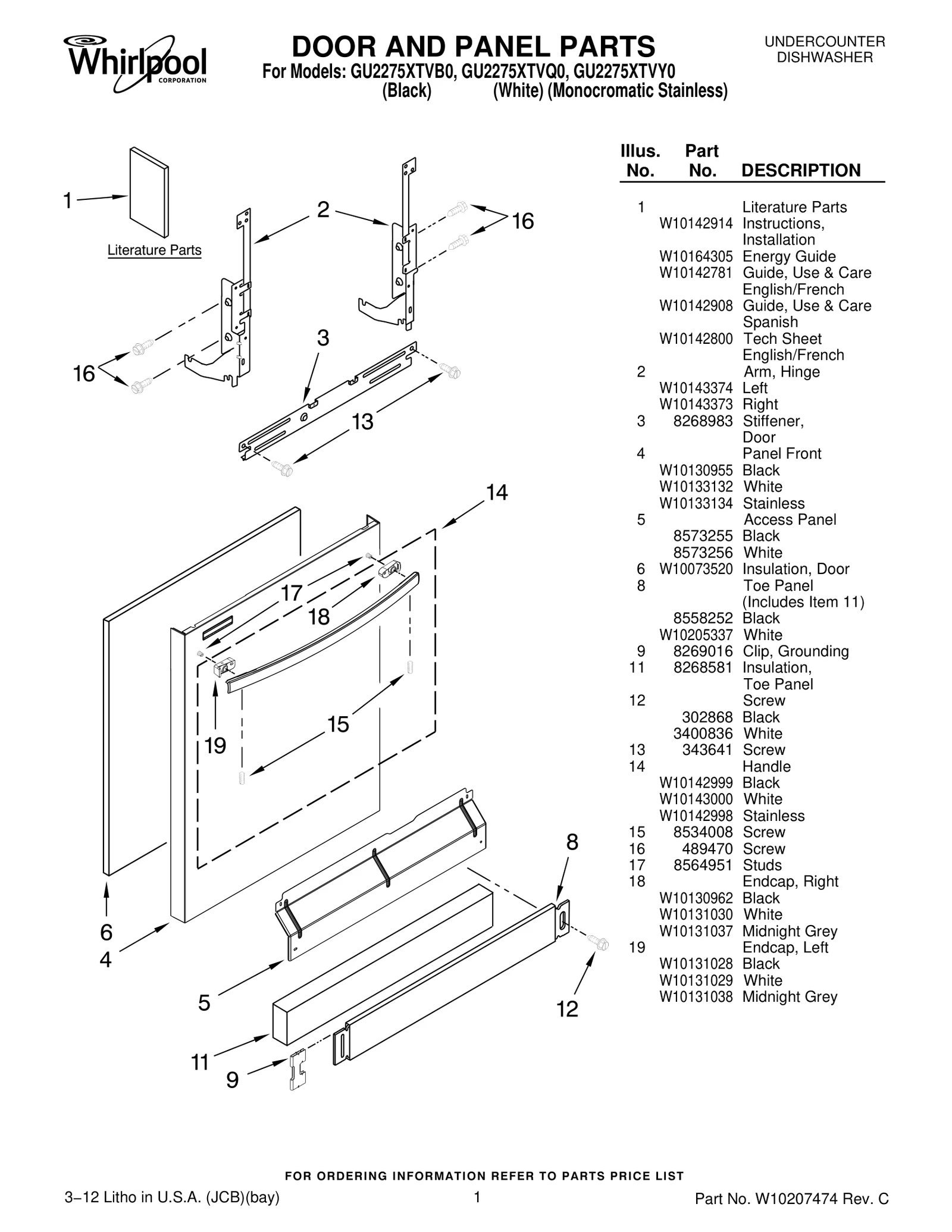

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
33 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10142914 Instructions, Installation | - |
| 1 | – | W10164305 Energy Guide | - |
| 1 | – | W10142781 Guide, Use & Care English/French | - |
| 1 | – | W10142908 Guide, Use & Care Spanish | - |
| 1 | – | W10142800 Tech Sheet English/French | - |
| 2 |  | W11613573replaces W10143374 Arm, Hinge — Left | $41.95 ApplianceParts Pro |
| 2 |  | W11613572replaces W10143373 Arm, Hinge — Right | $33.01 Parts Dr |
| 3 |  | 8268983NLA Stiffener, Door | Discontinued |
| 4 | | W10130955NLA Panel Front — Black | Discontinued |
| 4 | | W10133132NLA Panel Front — White | Discontinued |
| 4 | | W10133134NLA Panel Front — Stainless | Discontinued |
| 5 |  | W11763736replaces 8573255 Access Panel — Black | $16.47 Part Advantage |
| 5 | | Access Panel — White | - |
| 6 |  | WPW10073520replaces W10073520 Insulation, Door | $50.57 ApplianceParts Pro |
| 8 |  | W10871196replaces 8558252 Toe Panel — Black | $66.43 Amazon |
| 8 |  | W10799406replaces W10205337 Toe Panel — White | - |
| 9 |  | WP8269016replaces 8269016 Clip, Grounding | $6.90 RepairClinic |
| 11 |  | W10831329replaces 8268581 Insulation, Toe Panel | $15.72 Part Advantage |
| 12 |  | WP302868replaces 302868 Screw — Black | $2.30 Part Advantage |
| 12 |  | WP3400836replaces 3400836 Screw — White | $2.30 Part Advantage |
| 13 |  | WP681414replaces 343641 Screw | $2.30 Part Advantage |
| 14 | | W10142999NLA Handle — Black | Discontinued |
| 14 | | Handle — White | - |
| 14 | | Handle — Stainless | - |
| 15 |  | WP8534008replaces 8534008 Screw | $2.20 Part Advantage |
| 16 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
| 17 |  | WP8564951replaces 8564951 Studs | $8.70 Parts Dr |
| 18 | | W10130962NLA Endcap, Right — Black | Discontinued |
| 18 | | W10131030NLA Endcap, Right — White | Discontinued |
| 18 | – | W10131037 Endcap, Right — Midnight Grey | - |
| 19 | | W10131028NLA Endcap, Left — Black | Discontinued |
| 19 | | W10131029NLA Endcap, Left — White | Discontinued |
| 19 | | W10131038NLA Endcap, Left — Midnight Grey | Discontinued |
