Model
Whirlpool GU3200XTVQ1
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GU3200XTVQ1Undercounter Dishwasher
12 diagrams187 parts

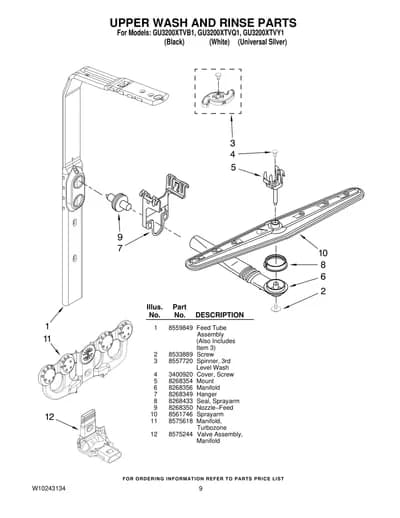

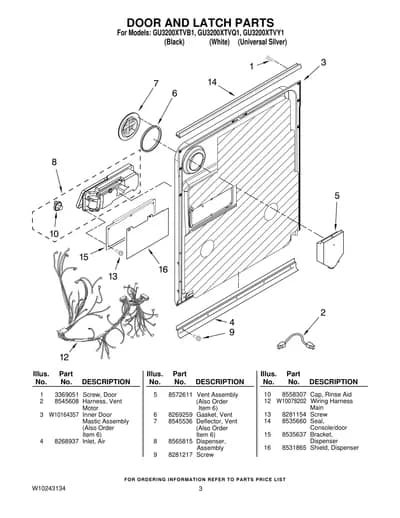

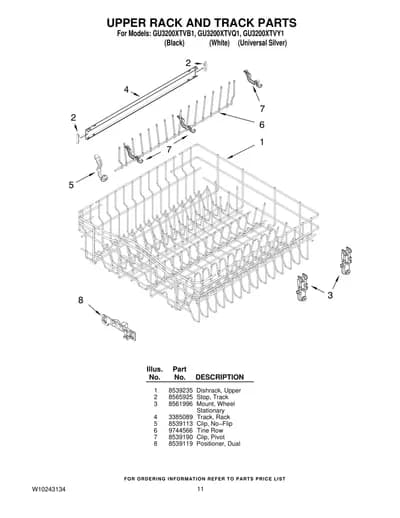

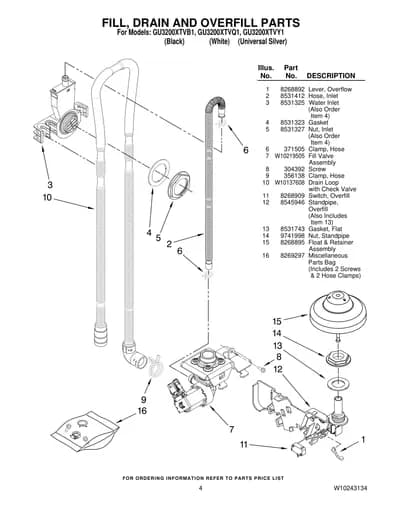

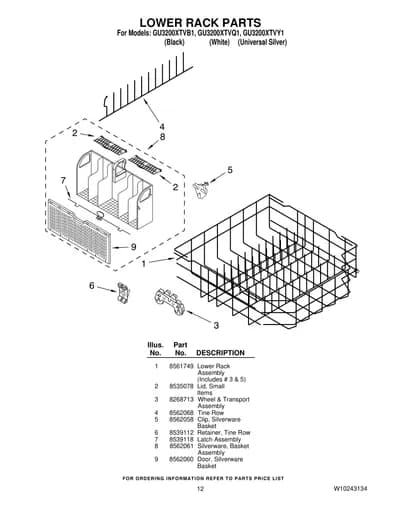

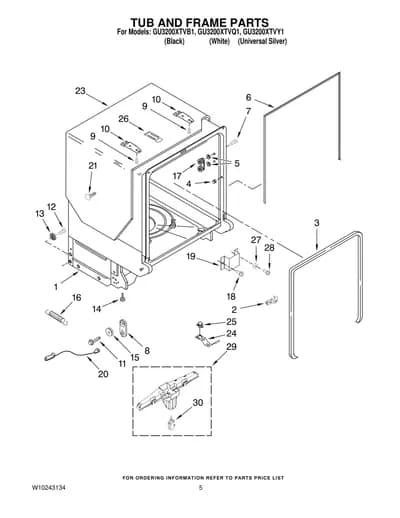

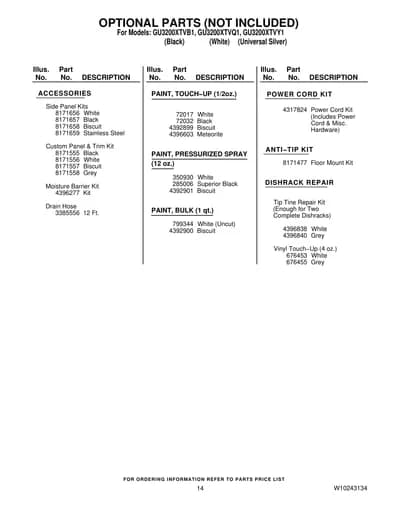

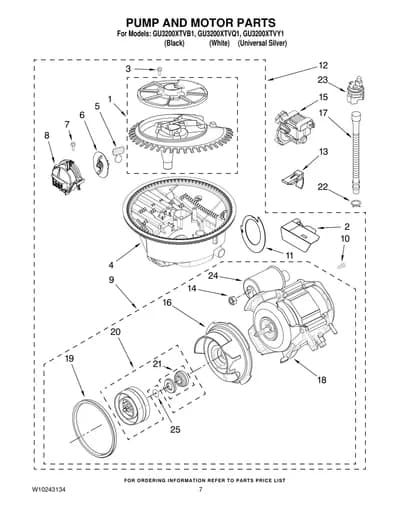

Parts Sections (12)
Diagram

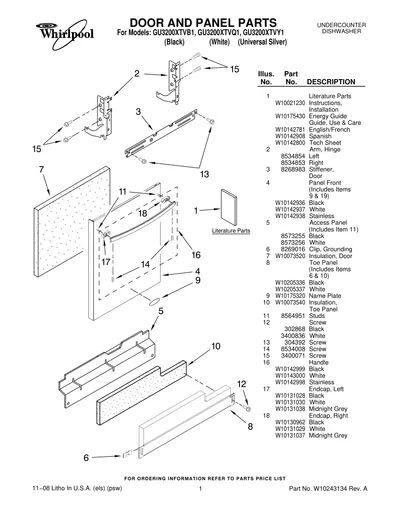

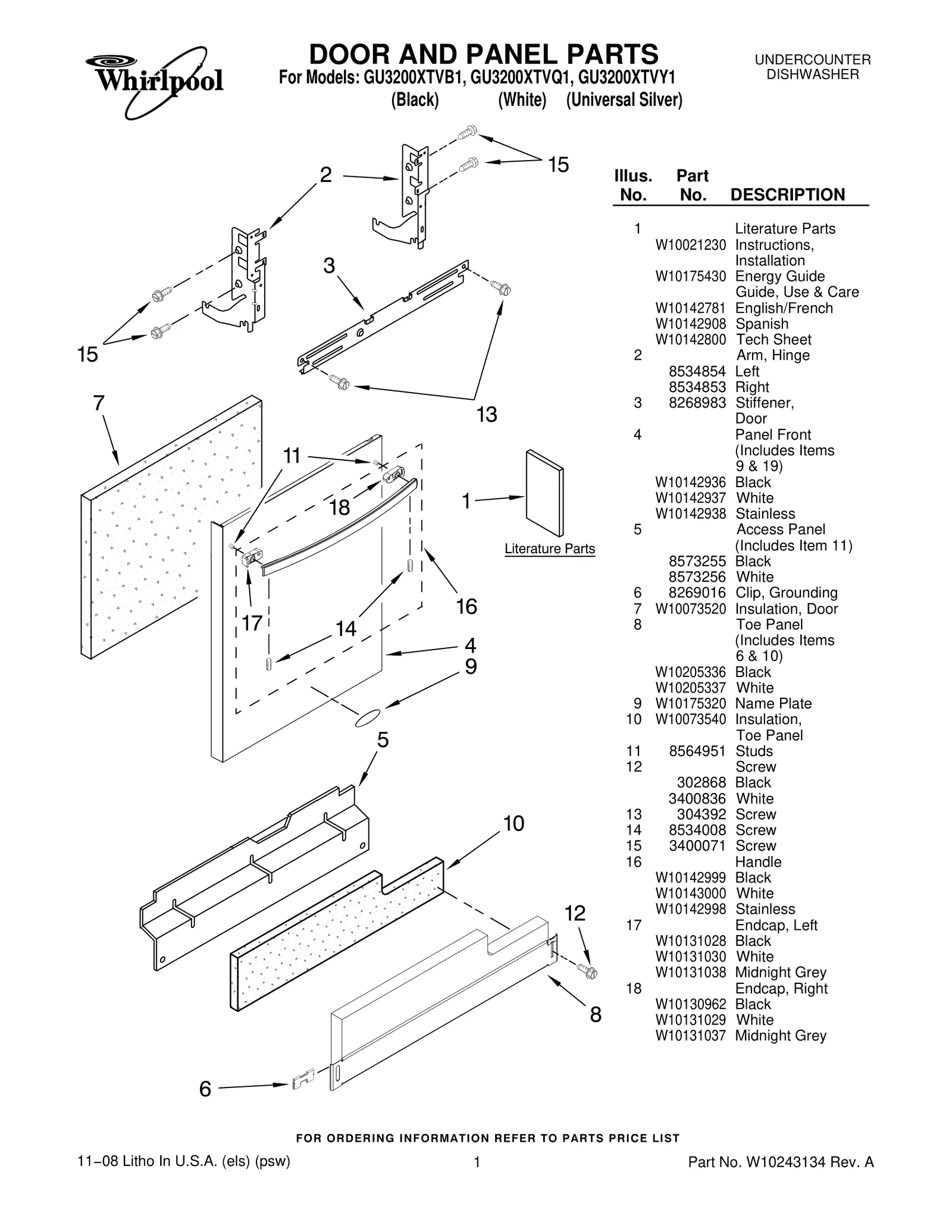

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10021230 Instructions, Installation | - |
| 1 | – | W10175430 Energy Guide Guide, Use & Care | - |
| 1 | – | W10142781 English/French | - |
| 1 | – | W10142908 Spanish | - |
| 1 | – | W10142800 Tech Sheet | - |
| 2 |  | W11612302replaces 8534854 Arm, Hinge — Left | $77.34 PartSelect |
| 2 |  | W11612303replaces 8534853 Arm, Hinge — Right | $60.05 Part Advantage |
| 3 |  | 8268983NLA Stiffener, Door | Discontinued |
| 4 | | W10142936NLA Panel Front (Includes Items 9 & 19) — Black | Discontinued |
| 4 | | W10142937NLA Panel Front (Includes Items 9 & 19) — White | Discontinued |
| 4 | | Panel Front (Includes Items 9 & 19) — Stainless | - |
| 5 |  | W11763736replaces 8573255 Access Panel — Black | $16.47 Part Advantage |
| 5 | | Access Panel — White | - |
| 6 |  | WP8269016replaces 8269016 Clip, Grounding | $6.90 RepairClinic |
| 7 |  | WPW10073520replaces W10073520 Insulation, Door | $50.57 ApplianceParts Pro |
| 8 |  | W10871196replaces W10205336 Toe Panel (Includes Items 6 & 10) — Black | $66.43 Amazon |
| 8 |  | W10799406replaces W10205337 Toe Panel (Includes Items 6 & 10) — White | - |
| 9 | | Name Plate | - |
| 10 |  | W10831329replaces W10073540 Insulation, Toe Panel | $15.72 Part Advantage |
| 11 |  | WP8564951replaces 8564951 Studs | $8.70 Parts Dr |
| 12 |  | WP302868replaces 302868 Screw — Black | $2.30 Part Advantage |
| 12 |  | WPW10503549replaces 3400836 Screw — White | $2.22 Part Advantage |
| 13 |  | WP489069replaces 304392 Screw | $2.30 Part Advantage |
| 14 |  | WP8534008replaces 8534008 Screw | $2.20 Part Advantage |
| 15 |  | WP3400071replaces 3400071 Screw | $2.30 Part Advantage |
| 16 | | W10142999NLA Handle — Black | Discontinued |
| 16 | | Handle — White | - |
| 16 | | Handle — Stainless | - |
| 17 | | W10131028NLA Endcap, Left — Black | Discontinued |
| 17 | | W10131030NLA Endcap, Left — White | Discontinued |
| 17 | | W10131038NLA Endcap, Left — Midnight Grey | Discontinued |
| 18 | | W10130962NLA Endcap, Right — Black | Discontinued |
| 18 | | W10131029NLA Endcap, Right — White | Discontinued |
| 18 | – | W10131037 Endcap, Right — Midnight Grey | - |
