Model
Whirlpool GU3600XTVY0
Undercounter Dishwasher
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GU3600XTVY0Undercounter Dishwasher
12 diagrams178 parts

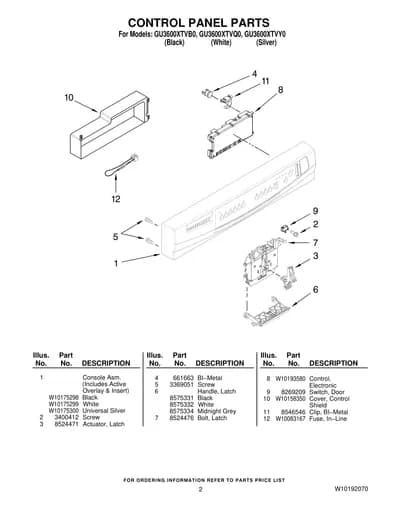

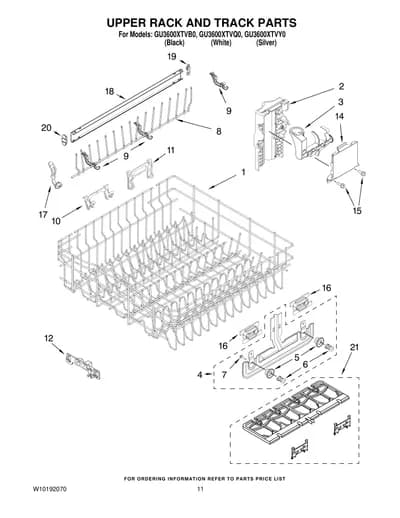

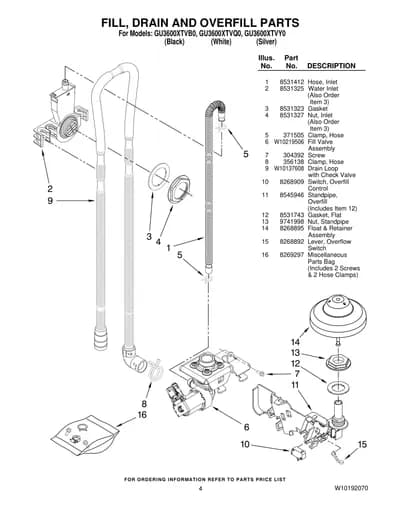

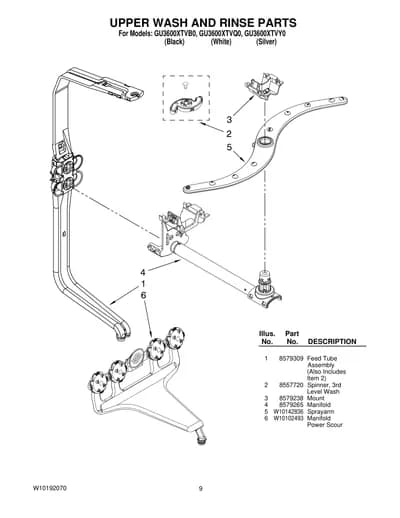

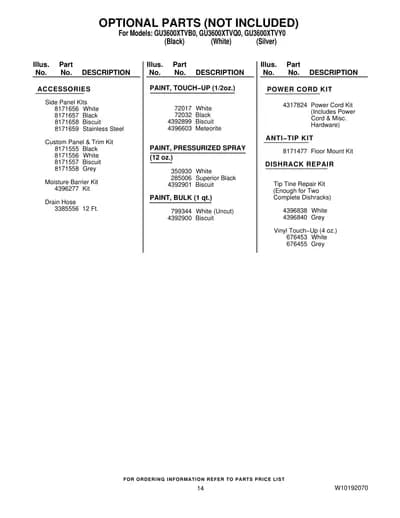

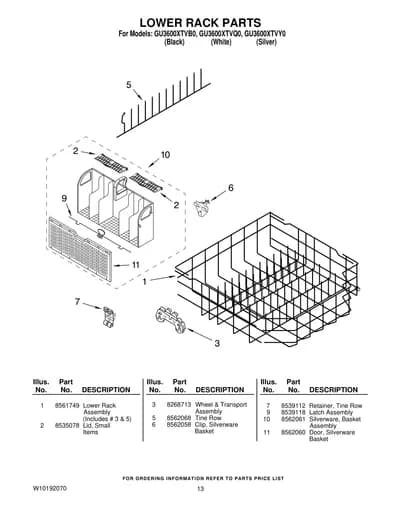

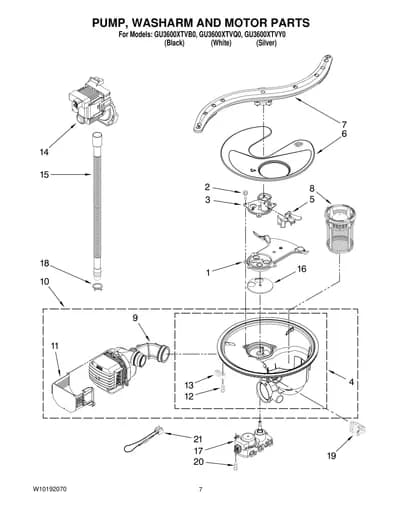

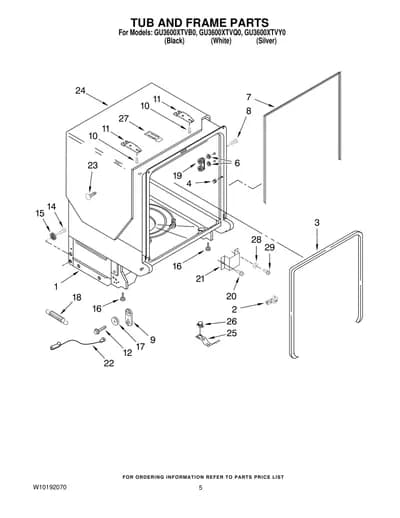

Parts Sections (12)

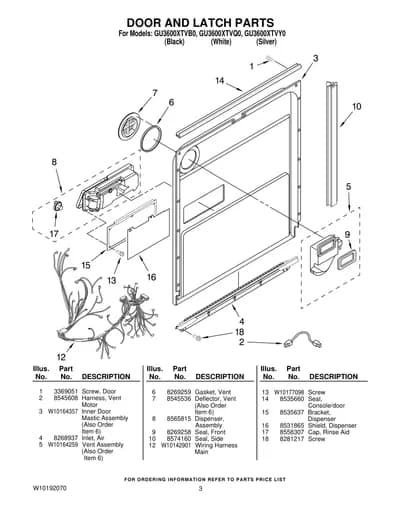

Diagram

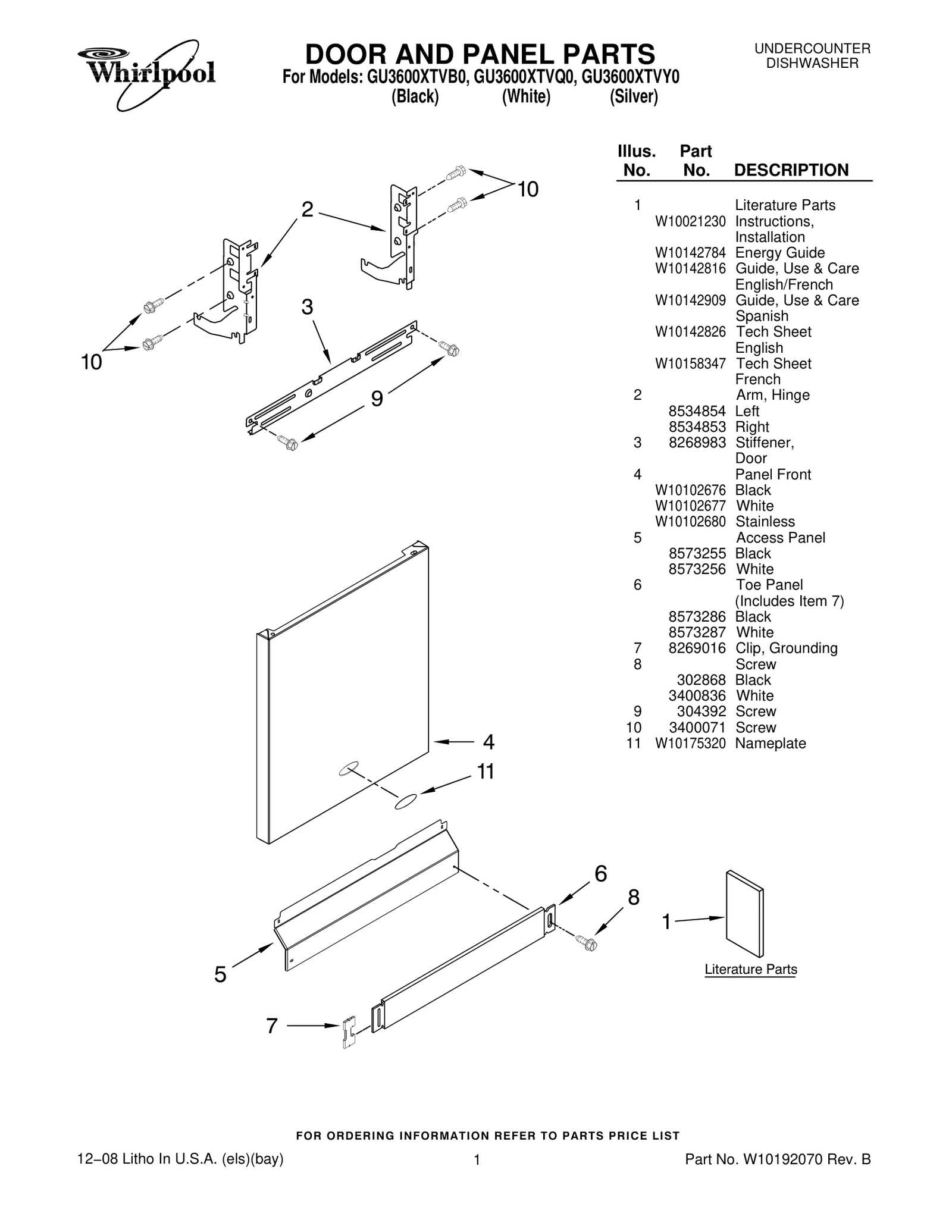

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10021230 Instructions, Installation | - |
| 1 | – | W10142784 Energy Guide | - |
| 1 | – | W10142816 Guide, Use & Care English/French | - |
| 1 | – | W10142909 Guide, Use & Care Spanish | - |
| 1 | – | W10142826 Tech Sheet English | - |
| 1 | – | W10158347 Tech Sheet French | - |
| 2 |  | W11612302replaces 8534854 Arm, Hinge — Left | $77.34 PartSelect |
| 2 |  | W11612303replaces 8534853 Arm, Hinge — Right | $60.05 Part Advantage |
| 3 |  | 8268983NLA Stiffener, Door | Discontinued |
| 4 | | W10102676NLA Panel Front — Black | Discontinued |
| 4 | | W10102677NLA Panel Front — White | Discontinued |
| 4 | | W10102680NLA Panel Front — Stainless | Discontinued |
| 5 |  | W11763736replaces 8573255 Access Panel — Black | $16.47 Part Advantage |
| 5 | | Access Panel — White | - |
| 6 |  | W10871196replaces 8573286 Toe Panel — Black | $66.43 Amazon |
| 6 |  | WP8573287replaces 8573287 Toe Panel — White | $74.95 ApplianceParts Pro |
| 7 |  | WP8269016replaces 8269016 Clip, Grounding | $6.90 RepairClinic |
| 8 |  | WP302868replaces 302868 Screw — Black | $2.30 Part Advantage |
| 8 |  | WPW10503549replaces 3400836 Screw — White | $2.22 Part Advantage |
| 9 |  | WP489069replaces 304392 Screw | $2.30 Part Advantage |
| 10 |  | WP3400071replaces 3400071 Screw | $2.30 Part Advantage |
| 11 | | Nameplate | - |
