Model
Whirlpool GW397LXUS1
30" Gas Slide-In Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GW397LXUS130" Gas Slide-In Range
6 diagrams184 parts

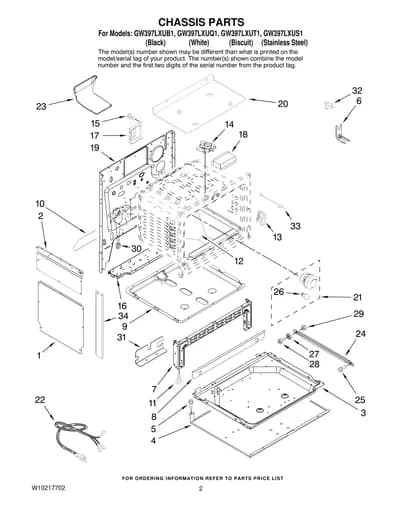

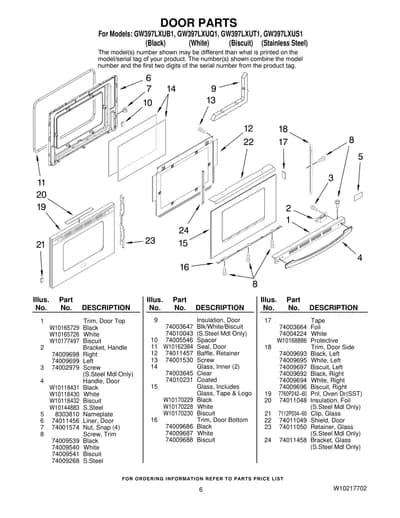

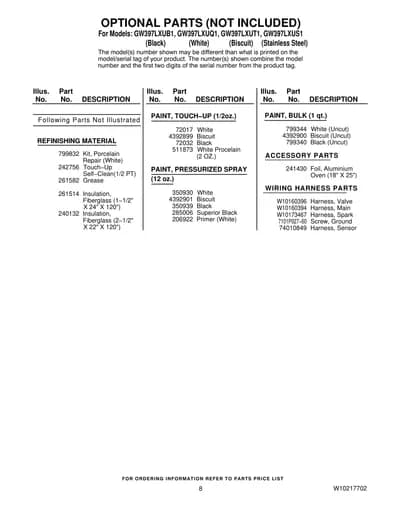

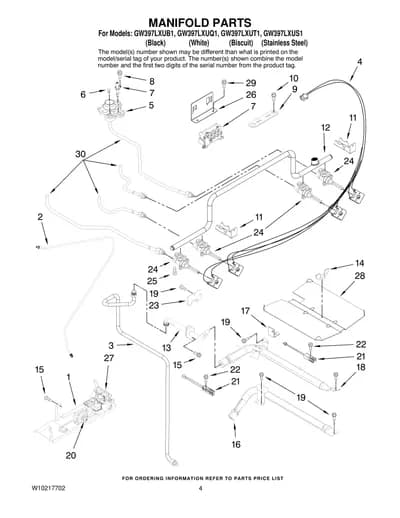

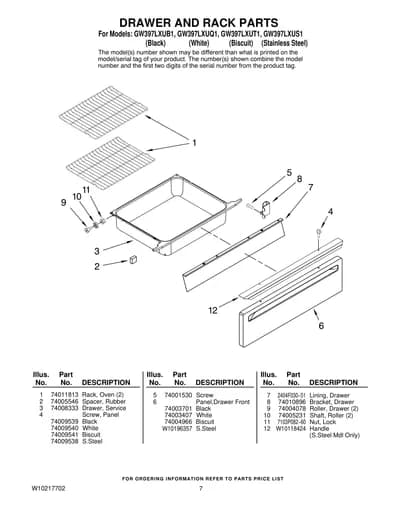

Parts Sections (6)
Diagram

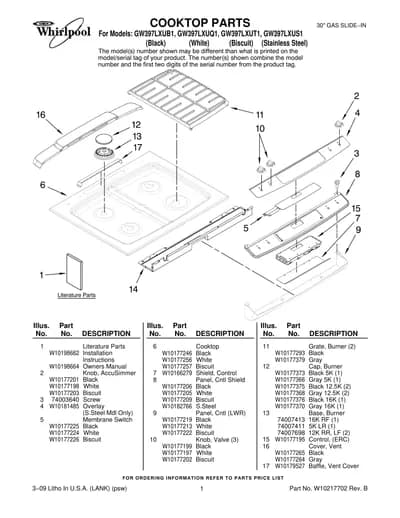

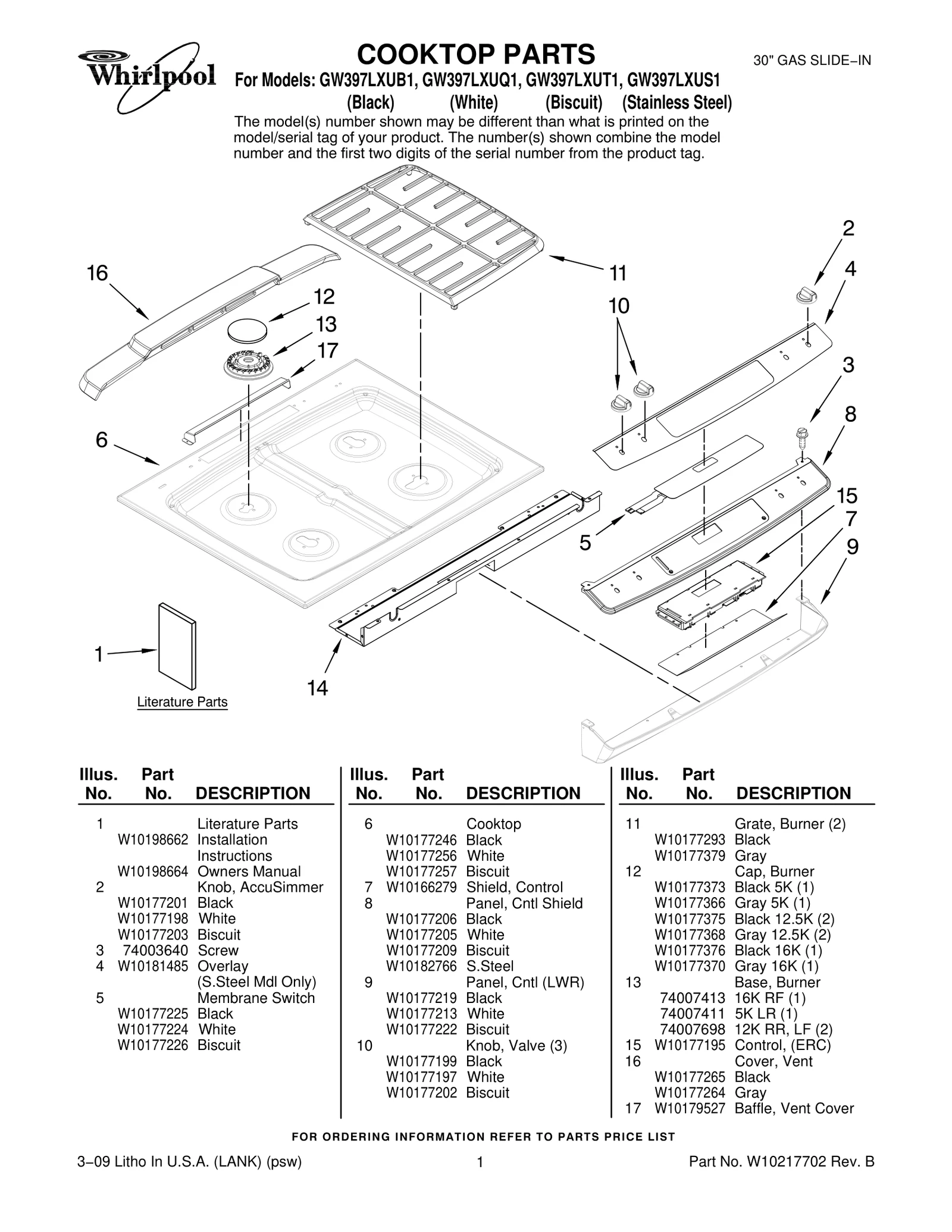

COOKTOP PARTS
Parts in COOKTOP PARTS
39 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10198662 Installation Instructions | - |
| 1 |  | W10198664NLA Owners Manual | Discontinued |

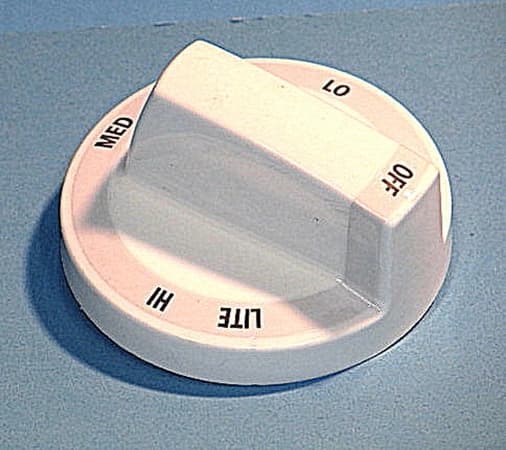

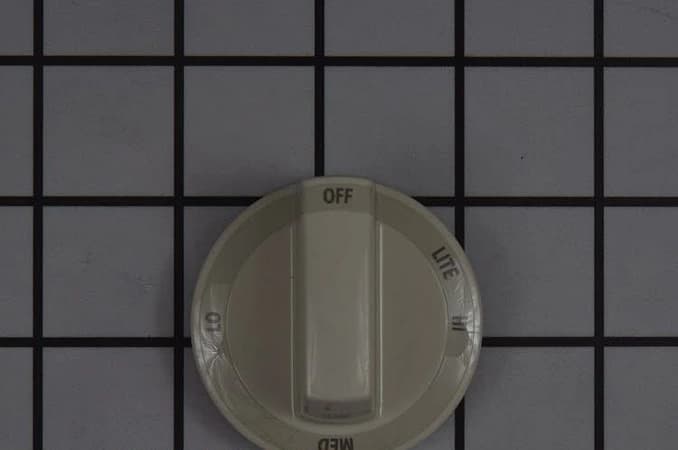

| 2 |  | Knob, AccuSimmer — Black | $14.43 ApplianceParts Pro |
| 2 |  | Knob, AccuSimmer — White | - |
| 2 | | Knob, AccuSimmer — Biscuit | - |
| 3 |  | Screw | $4.50 ApplianceParts Pro |
| 4 | – | W10181485 Overlay | - |
| 5 |  | WPW10207928replaces W10177225 Membrane Switch — Black | $188.37 PartSelect |
| 5 |  | Membrane Switch — White | Discontinued |
| 5 |  | WPW10207932replaces W10177226 Membrane Switch — Biscuit | $143.79 Part Advantage |
| 6 | | W10177246NLA Cooktop — Black | Discontinued |
| 6 | | W10177256NLA Cooktop — White | Discontinued |
| 6 | | W10177257NLA Cooktop — Biscuit | Discontinued |
| 7 | – | W10166279 Shield, Control | - |
| 8 | | W10177206NLA Panel, Cntl Shield — Black | Discontinued |
| 8 | | W10177205NLA Panel, Cntl Shield — White | Discontinued |
| 8 | | W10177209NLA Panel, Cntl Shield — Biscuit | Discontinued |
| 8 | | W10182766NLA Panel, Cntl Shield — S.Steel | Discontinued |
| 9 | – | W10177219 Panel, Cntl (LWR) — Black | - |
| 9 | – | W10177213 Panel, Cntl (LWR) — White | - |
| 9 | – | W10177222 Panel, Cntl (LWR) — Biscuit | - |
| 10 |  | WP7733P526-60replaces W10177199 Knob, Valve (3) — Black | $8.42 Part Advantage |
| 10 |  | Knob, Valve (3) — White | $13.91 RepairClinic |
| 10 |  | Knob, Valve (3) — Biscuit | $62.80 RepairClinic |
| 11 |  | W10177293NLA Grate, Burner (2) — Black | Discontinued |
| 11 | | W10177379NLA Grate, Burner (2) — Gray | Discontinued |

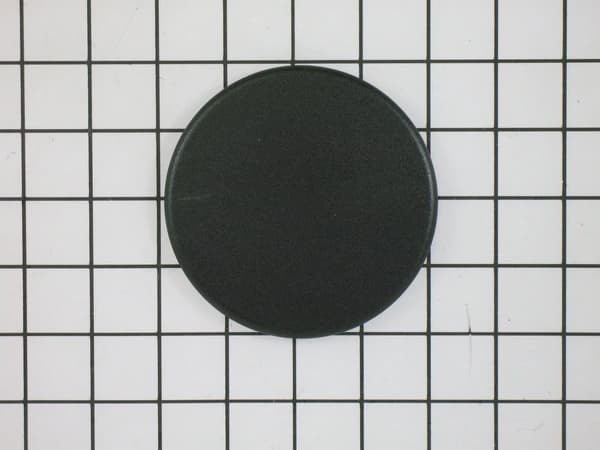

| 12 |  | WP7504P298-60replaces W10177373 Black 5K (1) | $38.70 Parts Dr |
| 12 |  | 7504P294-60replaces W10177366 Gray 5K (1) | - |
| 12 |  | WP7504P299-60replaces W10177375 Black 12.5K (2) | $71.95 ApplianceParts Pro |
| 12 | | 7504P295replaces W10177368 Gray 12.5K (2) | $67.27 |
| 12 |  | WP7504P300-60replaces W10177376 Black 16K (1) | $87.61 PartSelect |
| 12 | | W10177370NLA Gray 16K (1) | Discontinued |
| 13 |  | WPW10406878replaces 74007413 16K RF (1) | $38.07 Part Advantage |
| 13 |  | WPW10406243replaces 74007411 5K LR (1) | $12.98 Part Advantage |
| 13 |  | WPW10406797replaces 74007698 12K RR, LF (2) | $33.54 Part Advantage |
| 15 |  | WPW10177195replaces W10177195 Control, (ERC) | $237.40 PartSelect |
| 16 | | Cover, Vent — Black | $37.59 RepairClinic |
| 16 | – | W10177264 Cover, Vent — Gray | - |
| 17 | – | W10179527 Baffle, Vent Cover 3−09 Litho In U.S.A. (LANK) (psw) 30" GAS SLIDE−IN | - |
