Model
Whirlpool GW399LXUQ1
30" Gas Slide-In Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GW399LXUQ130" Gas Slide-In Range
6 diagrams175 parts
Parts Sections (6)
Diagram

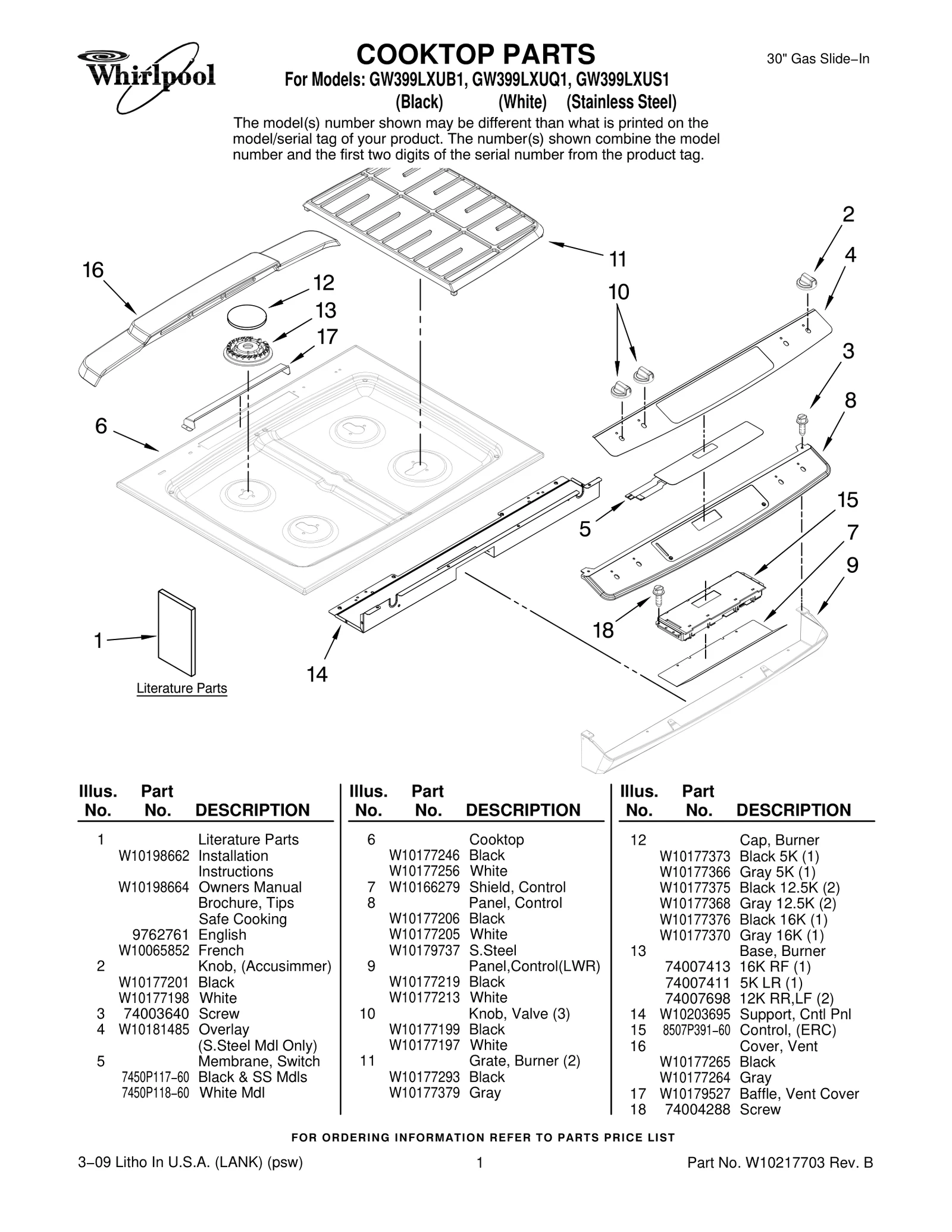

COOKTOP PARTS
Parts in COOKTOP PARTS
36 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10198662 Installation Instructions | - |
| 1 |  | W10198664NLA Owners Manual Brochure, Tips Safe Cooking | Discontinued |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | Knob, (Accusimmer) — Black | $14.43 ApplianceParts Pro |
| 2 |  | Knob, (Accusimmer) — White | - |
| 3 |  | Screw | $4.50 ApplianceParts Pro |
| 4 | – | W10181485 Overlay | - |
| 5 | – | N/S Membrane, Switch 7450P117−60 Black & SS Mdls 7450P118−60 White Mdl | - |
| 6 | | W10177246NLA Cooktop — Black | Discontinued |
| 6 | | W10177256NLA Cooktop — White | Discontinued |
| 7 | – | W10166279 Shield, Control | - |
| 8 | | W10177206NLA Panel, Control — Black | Discontinued |
| 8 | | W10177205NLA Panel, Control — White | Discontinued |
| 8 | – | W10179737 Panel, Control — S.Steel | - |
| 9 | – | W10177219 Panel,Control(LWR) — Black | - |
| 9 | – | W10177213 Panel,Control(LWR) — White | - |
| 10 | | WP7733P526replaces W10177199 Knob, Valve (3) — Black | $19.90 |
| 10 |  | Knob, Valve (3) — White | $13.91 RepairClinic |
| 11 |  | W10177293NLA Grate, Burner (2) — Black | Discontinued |
| 11 | | W10177379NLA Grate, Burner (2) — Gray | Discontinued |
| 12 | | WP7504P298replaces W10177373 Black 5K (1) | $38.70 Parts Dr |
| 12 |  | 7504P294-60replaces W10177366 Gray 5K (1) | - |
| 12 | | WP7504P299replaces W10177375 Black 12.5K (2) | $70.33 |
| 12 | | 7504P295replaces W10177368 Gray 12.5K (2) | $67.27 |
| 12 | | WP7504P300replaces W10177376 Black 16K (1) | $85.58 |
| 12 | | W10177370NLA Gray 16K (1) | Discontinued |
| 13 |  | WPW10406878replaces 74007413 16K RF (1) | $38.07 Part Advantage |
| 13 |  | WPW10406243replaces 74007411 5K LR (1) | $12.98 Part Advantage |
| 13 |  | WPW10406797replaces 74007698 12K RR,LF (2) | $33.54 Part Advantage |
| 14 | – | W10203695 Support, Cntl Pnl | - |
| 15 | – | N/S 8507P391−60 Control, (ERC) | - |
| 16 | | Cover, Vent — Black | $37.59 RepairClinic |
| 16 | – | W10177264 Cover, Vent — Gray | - |
| 17 | – | W10179527 Baffle, Vent Cover | - |
| 18 |  | WP59002061replaces 74004288 Screw 3−09 Litho In U.S.A. (LANK) (psw) 30" Gas Slide−In | $2.30 Part Advantage |
