Model
Whirlpool GY397LXUS0
30" Slide−In Electric Range
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GY397LXUS030" Slide−In Electric Range
6 diagrams151 parts
Parts Sections (6)
Diagram

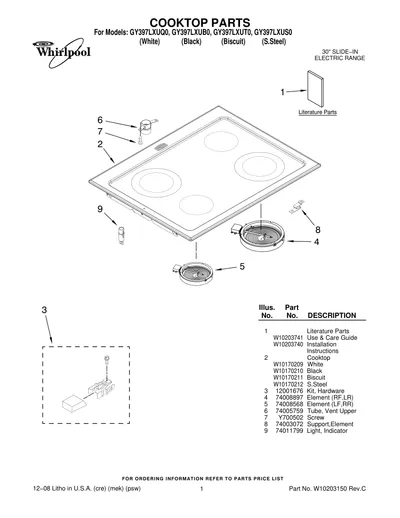

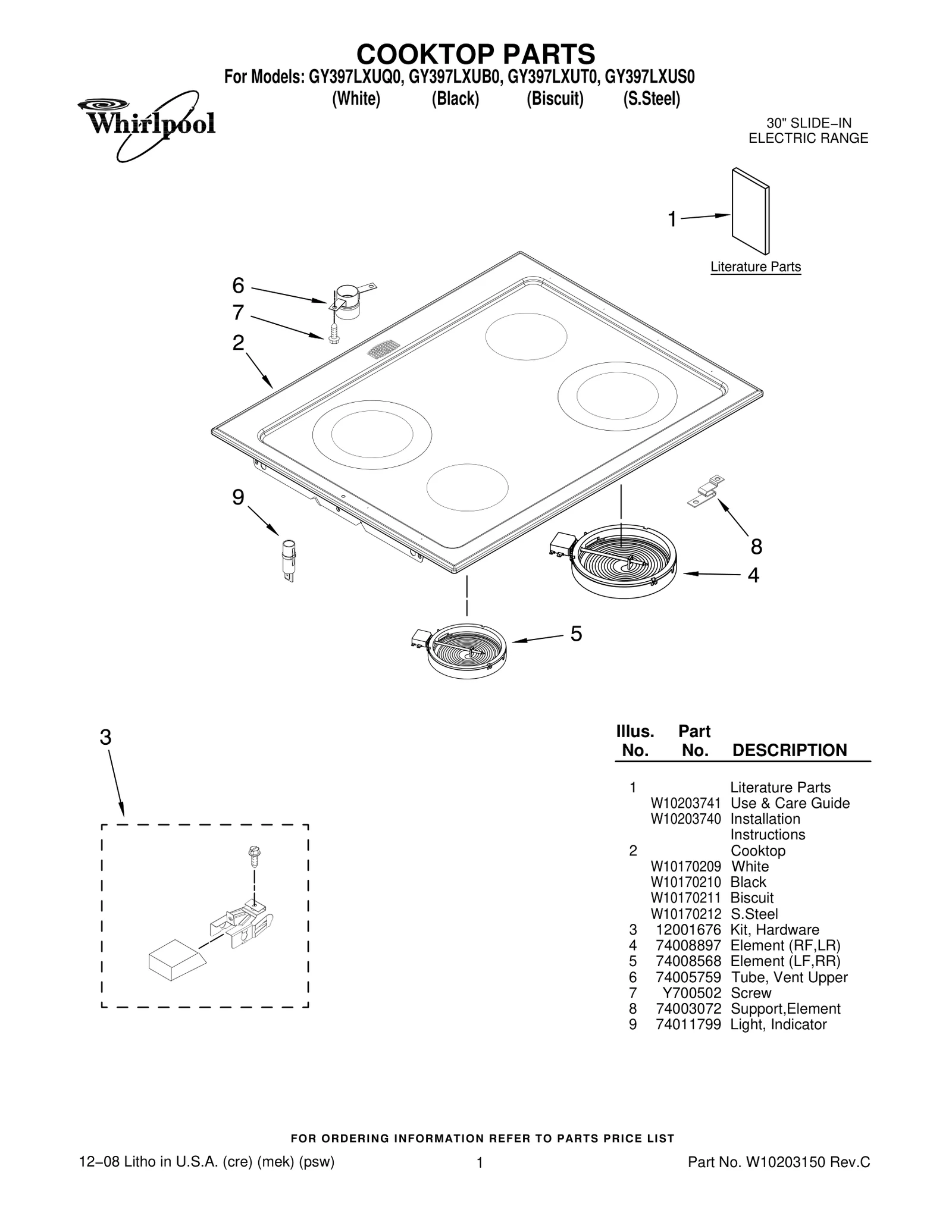

COOKTOP PARTS
Parts in COOKTOP PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10203741 Use & Care Guide | - |
| 1 | – | W10203740 Installation Instructions | - |

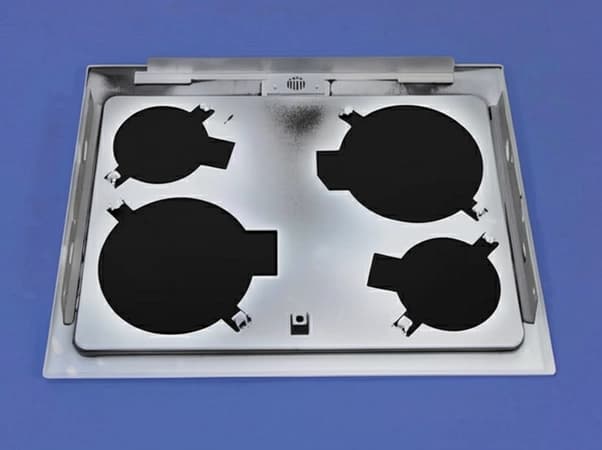

| 2 |  | Cooktop — White | - |
| 2 |  | W10170210NLA Cooktop — Black | Discontinued |
| 2 |  | Cooktop — Biscuit | - |
| 2 |  | W10170212NLA Cooktop — S.Steel | Discontinued |
| 3 |  | Kit, Hardware | $5.04 Amazon |
| 4 |  | W10823692replaces 74008897 Element (RF,LR) | $119.42 Parts Dr |
| 5 |  | W10823711replaces 74008568 Element (LF,RR) | $92.55 Part Advantage |
| 6 | – | 74005759 Tube, Vent Upper | - |
| 7 |  | WP90767replaces Y700502 Screw | $2.30 Part Advantage |
| 8 | | 74003072NLA Support,Element | Discontinued |
| 9 | | 7407P193-60replaces 74011799 Light, Indicator 12−08 Litho in U.S.A. (cre) (mek) (psw) For Models: GY397LXUQ0, GY397LXUB0, GY397LXUT0, GY397LXUS0 (White) (Black) (Biscuit) (S.Steel) | - |
