Model
Whirlpool GZ9736SSS0
30" & 36" Hood
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
GZ9736SSS030" & 36" Hood
1 diagram45 parts
Parts Sections (1)
Diagram

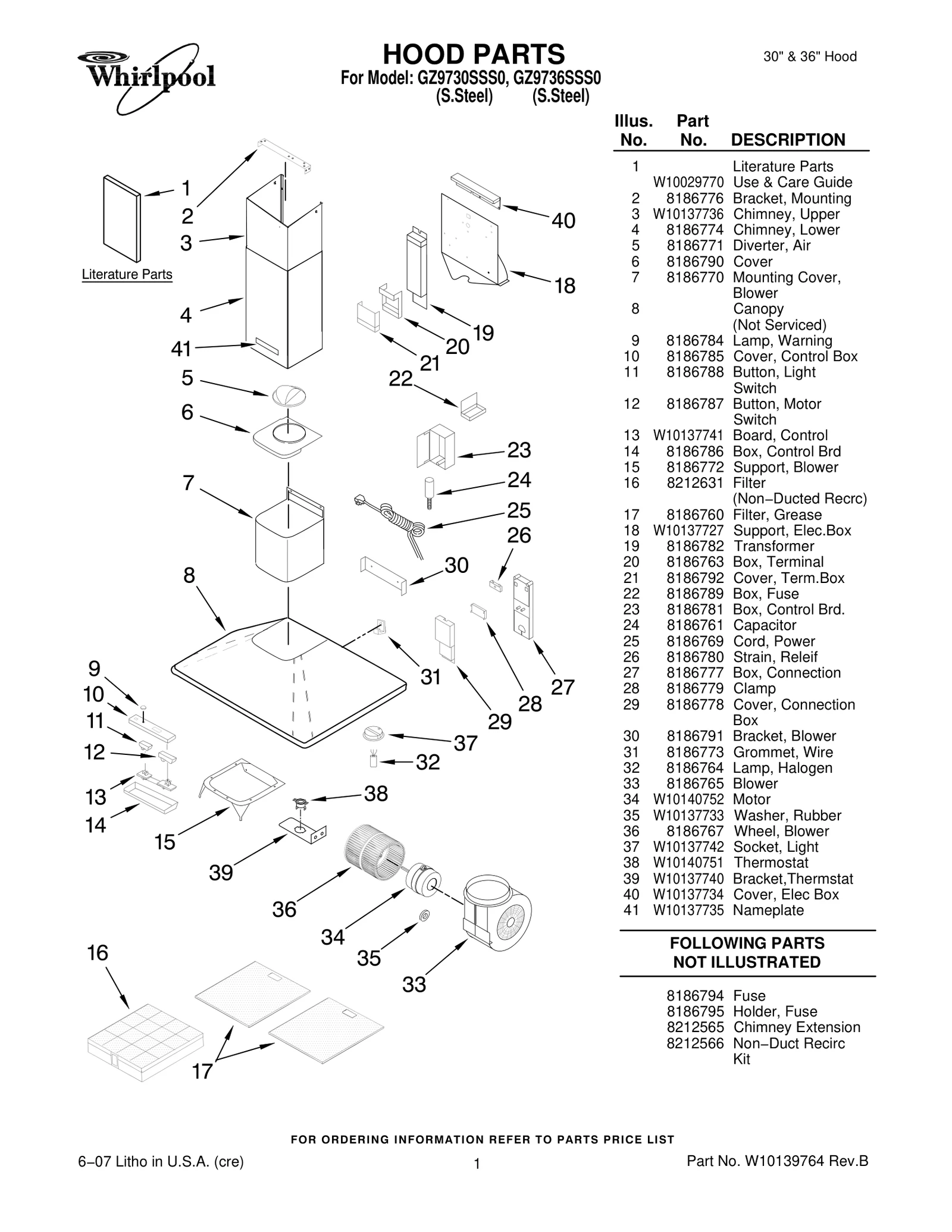

HOOD PARTS
Parts in HOOD PARTS
45 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10029770 Use & Care Guide | - |
| 2 | – | 8186776 Bracket, Mounting | - |
| 3 | – | W10137736 Chimney, Upper | - |
| 4 |  | 8186774NLA Chimney, Lower | Discontinued |
| 5 | – | 8186771 Diverter, Air | - |
| 6 | – | 8186790 Cover | - |
| 7 | | Mounting Cover, Blower | - |
| 8 | – | N/S Canopy | - |
| 9 | – | 8186784 Lamp, Warning | - |
| 10 | – | 8186785 Cover, Control Box | - |
| 11 | – | 8186788 Button, Light Switch | - |
| 12 | – | 8186787 Button, Motor Switch | - |
| 13 | – | W10137741 Board, Control | - |
| 14 | – | 8186786 Box, Control Brd | - |
| 15 | – | 8186772 Support, Blower | - |
| 16 | | Filter | Discontinued |
| 17 | | Filter, Grease | - |
| 18 | – | W10137727 Support, Elec.Box | - |
| 19 |  | Transformer | - |
| 20 | – | 8186763 Box, Terminal | - |
| 21 | – | 8186792 Cover, Term.Box | - |
| 22 | – | 8186789 Box, Fuse | - |
| 23 | – | 8186781 Box, Control Brd. | - |
| 24 | | Capacitor | - |
| 25 | | Cord, Power | - |
| 26 | – | 8186780 Strain, Releif | - |
| 27 | – | 8186777 Box, Connection | - |
| 28 | – | 8186779 Clamp | - |
| 29 | – | 8186778 Cover, Connection Box | - |
| 30 | – | 8186791 Bracket, Blower | - |
| 31 | | Grommet, Wire | - |
| 32 | | Lamp, Halogen | - |
| 33 | | Blower | - |
| 34 | – | W10140752 Motor | - |
| 35 | – | W10137733 Washer, Rubber | - |
| 36 | | Wheel, Blower | - |
| 37 | – | W10137742 Socket, Light | - |
| 38 | – | W10140751 Thermostat | - |
| 39 | – | W10137740 Bracket,Thermstat | - |
| 40 | – | W10137734 Cover, Elec Box | - |
| 41 | – | W10137735 Nameplate NOT ILLUSTRATED | - |
| 41 | | Fuse | - |
| 41 | – | 8186795 Holder, Fuse | - |
| 41 | | Chimney Extension | - |
| 41 | | Non−Duct Recirc Kit | - |
