Model
Whirlpool HTW4300TQ0
Automatic Washer
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelWhirlpool
HTW4300TQ0Automatic Washer
9 diagrams206 parts

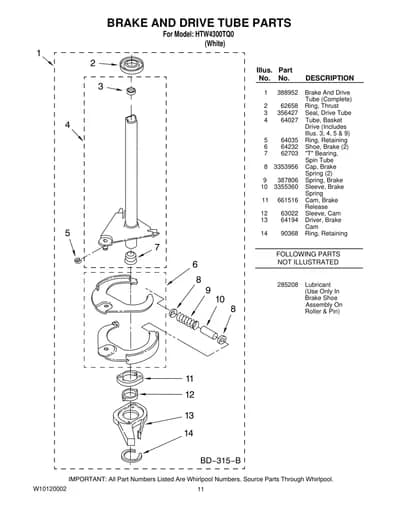

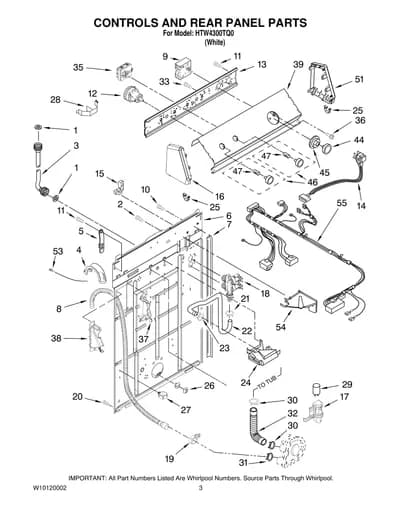

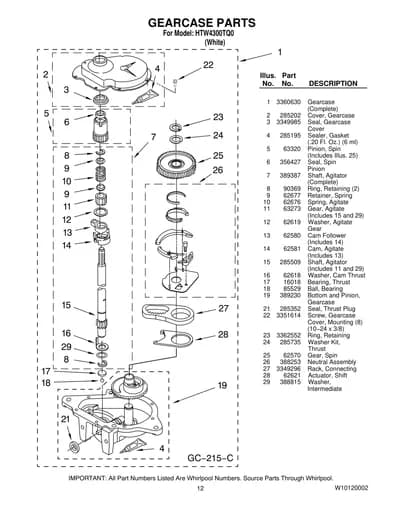

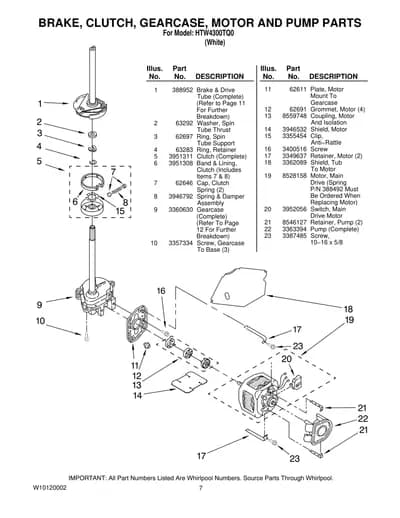

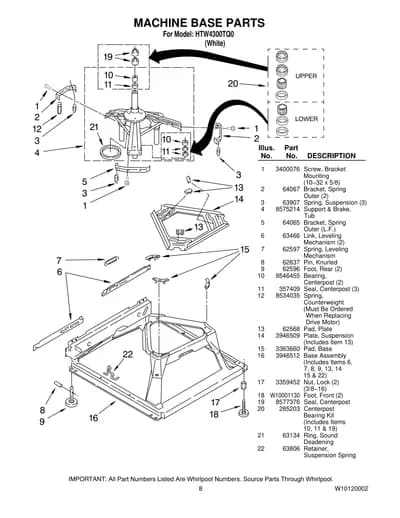

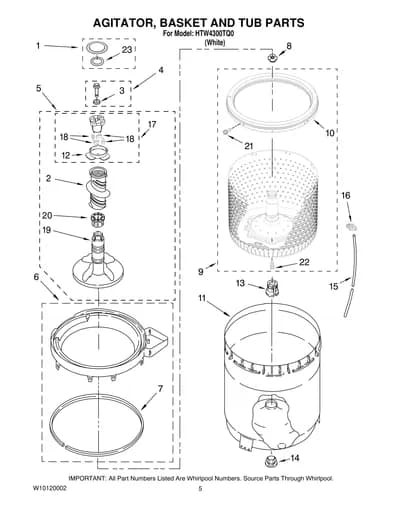

Parts Sections (9)
Diagram

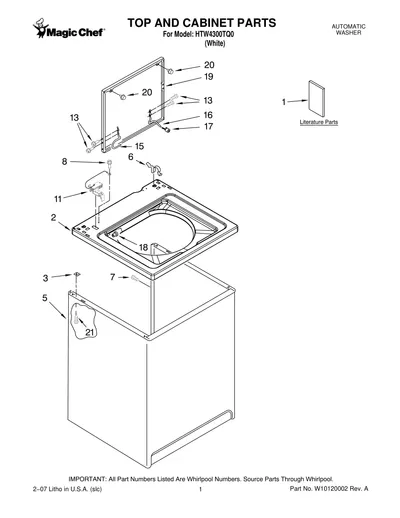

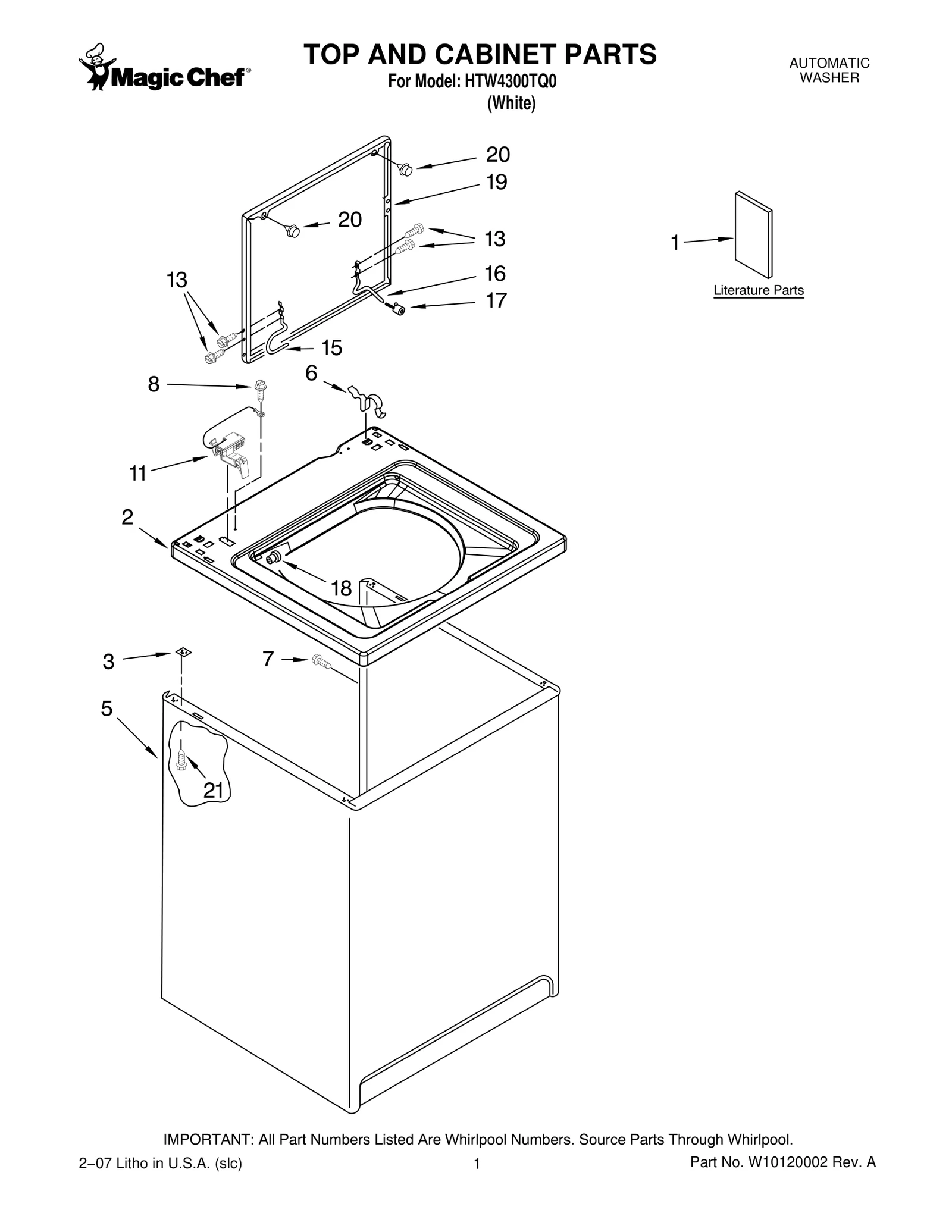

TOP AND CABINET PARTS
Parts in TOP AND CABINET PARTS
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10044800 Installation Instructions | - |
| 1 | – | W10092686 Feature Sheet | - |
| 1 | – | W10092680 Use & Care Guide | - |
| 1 | – | W10023680 Energy Guide | - |
| 1 | – | W10118358 Wiring Diagram | - |
| 2 |  | Top | - |
| 3 |  | WP62750replaces 62750 Spacer, Cabinet To Top (4) | $3.38 Part Advantage |
| 5 |  | Cabinet | - |
| 6 |  | WP62780replaces 62780 Clip, Top & Cabinet & Rear Panel (2) | $3.55 Part Advantage |
| 7 |  | WP308685replaces 3357011 Screw, 10−16 x 1/2 | $2.30 Part Advantage |
| 8 |  | WP3351614replaces 3351614 Screw, Ground | $3.62 Parts Dr |
| 11 |  | WP8318084replaces 8318084 Switch, Lid | $18.14 Part Advantage |
| 13 |  | WPW10119828replaces 3351355 Screw, Lid Hinge Mounting (4) | $2.41 Part Advantage |
| 15 |  | Hinge, Lid (L.H.) | - |
| 16 |  | WP54583replaces 54583 Hinge, Lid (R.H.) | $8.57 Part Advantage |
| 17 | | 19119NLA Bumper, Lid Hinge | Discontinued |
| 18 |  | WP21258replaces 21258 Bearing, Lid Hinge (2) | $3.18 Part Advantage |
| 19 |  | WPW10193857replaces W10093681 Lid | $211.09 RepairClinic |
| 20 |  | WP9724509replaces 9724509 Bumper, Lid (2) | $2.41 Part Advantage |
| 21 |  | WP3390631replaces 3390631 Screw 10−16 X 3/8 (4) | $2.30 Part Advantage |
