ModelIKEA
IBD550PRS0430" Built−In Electric Double Oven Self Clean Thermal Convection
6 diagrams125 parts
Parts Sections (6)
Diagram

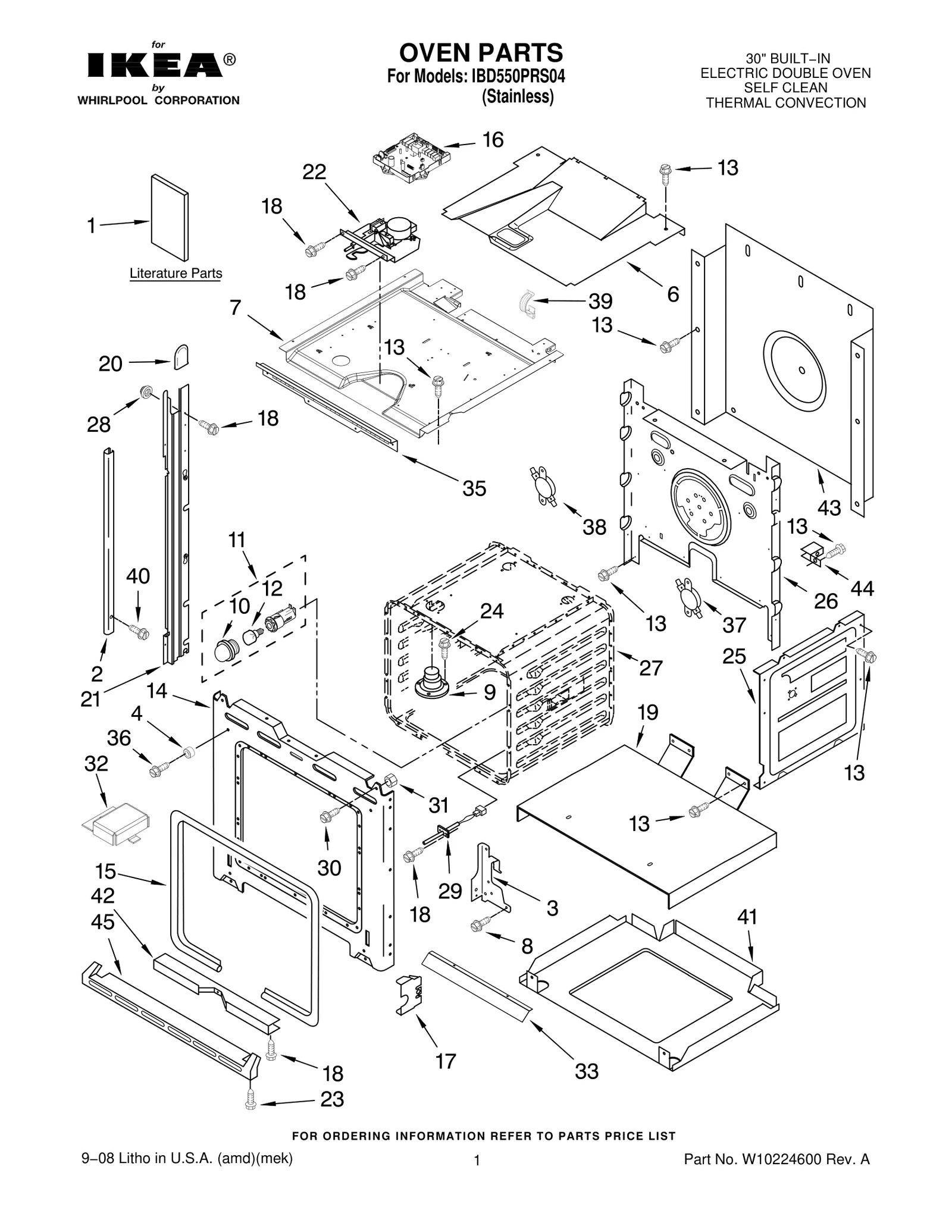

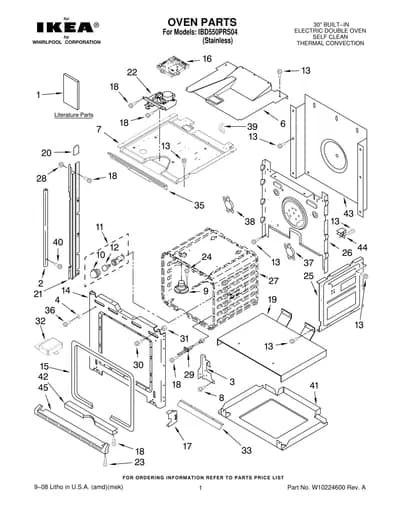

OVEN PARTS

Parts in OVEN PARTS
51 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8303102 Instruction, Installation | - |
| 1 | – | W10162182 Owners Manual | - |
| 1 | – | 8303104 Tech Sheet | - |
| 2 | WPW10144985replaces W10166932 Trim, Side — Right | - | |
| 2 | WPW10144986replaces W10166933 Trim, Side — Left | - | |
| 3 | WP4455606replaces 4455606 Hinge Receiver — Right | $54.41 Part Advantage | |
| 3 | WP4455605replaces 4455605 Hinge Receiver — Left | $54.41 Part Advantage | |
| 4 | ![]() | Bumper, Door (2) | $4.44 Part Advantage |
| 6 | Divider, Vent | - | |
| 7 | 8303099NLA Top Chassis | Discontinued | |
| 8 | WP4449743replaces 4449743 Screw | $5.00 RepairClinic | |
| 9 | ![]() | W10861715replaces 4452158 Tube, Vent | - |
| 10 | Lens, Light | - | |
| 11 | WPW10734065replaces W10009930 Assembly, Oven Light | - | |
| 12 | WP4173175replaces 4452166 Bulb, Light | $27.68 Part Advantage | |
| 13 | WP4449809replaces 4449809 Screw | $2.41 Part Advantage | |
| 14 | WPW10115831replaces W10115831 Frame, Front | - | |
| 15 | W11675844replaces 4455382 Gasket, Door | $25.91 Part Advantage | |
| 16 | 8304382NLA Control — Upper | Discontinued | |
| 16 | WP8304383replaces 8304383 Control — Lower | $348.79 ApplianceParts Pro | |
| 17 | ![]() | Bracket, Mounting | - |
| 18 | WP4449154replaces 4449154 Screw | $3.72 Parts Dr | |
| 19 | – | 4451478 Support, Insulation | - |
| 20 | Cap, Spacer | $15.86 RepairClinic | |
| 21 | ![]() | 814373replaces 4450581 Rail, Side — Right | $65.04 RepairClinic |
| 21 | ![]() | 814374replaces 4450582 Rail, Side — Left | $65.11 RepairClinic |
| 22 | WPW10195934replaces 9760888 Latch, Motorized | $107.77 Part Advantage | |
| 23 | WP3400832replaces 3400832 Screw | $2.30 Part Advantage | |
| 24 | W11233072replaces 3196176 Screw | $8.78 Part Advantage | |
| 25 | W10782197replaces 4455641 Side, Chassis | $40.60 RepairClinic | |
| 26 | – | W10161110 Back, Chassis | - |
| 27 | – | N/S Liner, Oven | - |
| 28 | ![]() | WP4448444replaces 4448444 Grommet | $4.32 Parts Dr |
| 29 | WPW10131825replaces W10131825 Sensor | $50.18 Part Advantage | |
| 30 | WPW10650400replaces 4449040 Screw | - | |
| 31 | WP4450118replaces 4450118 Nut | $5.46 ApplianceParts Pro | |
| 32 | ![]() | Cover, Wire | - |
| 33 | ![]() | Deflector, Vent | $43.73 RepairClinic |
| 35 | Vent, Center | - | |
| 36 | WP4450038replaces 4450038 Screw (2) | $2.30 Part Advantage | |
| 37 | WP9759243replaces 9759243 Thermostat (TOD) | $28.11 Part Advantage | |
| 38 | WP9759242replaces 9759242 Thermostat, SPST Over Temp 130c | $35.11 Part Advantage | |
| 39 | WP98997replaces 98997 Clip | - | |
| 40 | WP694091replaces 694091 Screw | $1.68 RepairClinic | |
| 41 | 9759713NLA Base, Chassis | Discontinued | |
| 42 | WP4448933replaces 4448933 Retainer, Gasket | $5.00 RepairClinic | |
| 43 | WP4451747replaces 4451747 Cover, Back | $36.75 RepairClinic | |
| 44 | Support, Bracket | - | |
| 45 | 4455147NLA Trim, Bottom NOT ILLUSTRATED INSULATION | Discontinued | |
| 45 | WPW10708464replaces 4449316 Insulation, Wrap | $326.47 ApplianceParts Pro | |
| 45 | 4450365NLA Insulation, Back | Discontinued |
