Model
IKEA IBMS1450VMS0
Built−In Microwave
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
IBMS1450VMS0Built−In Microwave
6 diagrams75 parts
Parts Sections (6)
Diagram

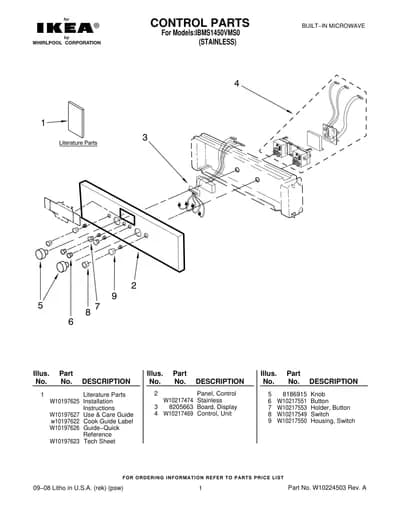

CONTROL PARTS
Parts in CONTROL PARTS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10197625 Installation Instructions | - |
| 1 | – | W10197627 Use & Care Guide w10197622 Cook Guide Label | - |
| 1 | – | W10197626 Guide−Quick Reference | - |
| 1 | – | W10197623 Tech Sheet | - |
| 2 |  | Panel, Control — Stainless | - |
| 3 |  | WPW10124269replaces 8205663 Board, Display | $132.20 PartSelect |
| 4 | | W10217469NLA Control, Unit | Discontinued |
| 5 | | Knob | - |
| 6 | | Button | - |
| 7 | | Holder, Button | - |
| 8 | | W10217549NLA Switch | Discontinued |
| 9 | | Housing, Switch | - |
