Model
IKEA ICR410RB03
30" Electric Ceran Built−In Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelIKEA
ICR410RB0330" Electric Ceran Built−In Cooktop
2 diagrams50 parts
Parts Sections (2)
Diagram

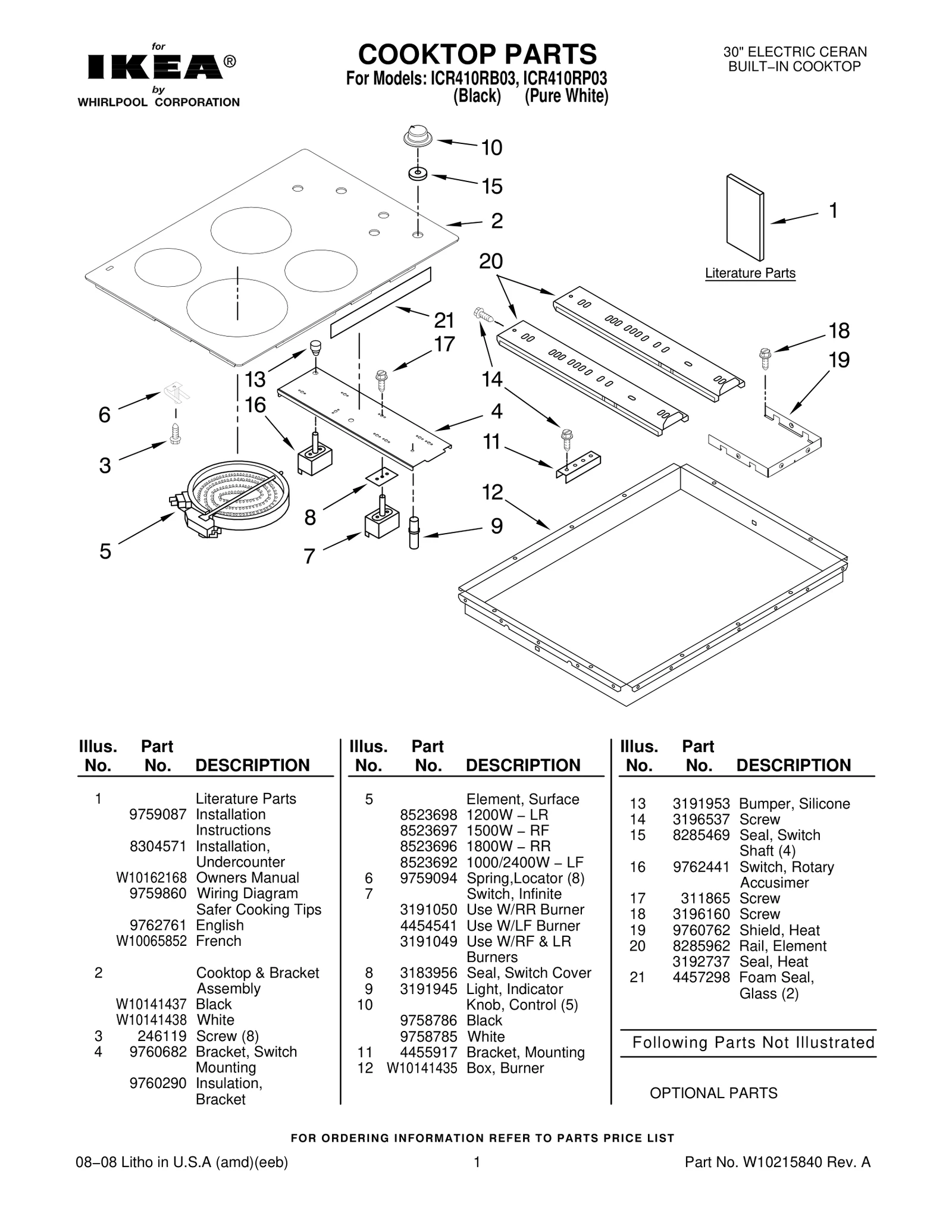

COOKTOP PARTS
Parts in COOKTOP PARTS
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 9759087 Installation Instructions | - |
| 1 | – | 8304571 Installation, Undercounter | - |
| 1 | – | W10162168 Owners Manual | - |
| 1 | – | 9759860 Wiring Diagram Safer Cooking Tips | - |
| 1 | – | 9762761 English | - |
| 1 | – | W10065852 French | - |
| 2 |  | W10647131replaces W10141437 Cooktop & Bracket Assembly — Black | - |
| 2 |  | W10647135replaces W10141438 Cooktop & Bracket Assembly — White | - |
| 3 |  | WP486754replaces 246119 Screw (8) | $5.95 ApplianceParts Pro |
| 4 | – | 9760682 Bracket, Switch Mounting | - |
| 4 | – | 9760290 Insulation, Bracket | - |
| 5 |  | W10823711replaces 8523698 Element, Surface — 1200W − LR | $92.55 Part Advantage |
| 5 |  | W10823699replaces 8523697 Element, Surface — 1500W − RF | $92.39 Parts Dr |
| 5 |  | W10823698replaces 8523696 Element, Surface — 1800W − RR | $83.15 Part Advantage |
| 5 |  | W10823696replaces 8523692 Element, Surface — 1000/2400W − LF | $87.70 Amazon |
| 6 |  | Spring,Locator (8) | $7.15 ApplianceParts Pro |
| 7 |  | WP3191050replaces 3191050 Switch, Infinite — Use W/RR Burner | $70.13 Part Advantage |
| 7 |  | WP4454541replaces 4454541 Switch, Infinite — Use W/LF Burner | $62.81 Part Advantage |
| 7 |  | WP3191049replaces 3191049 Switch, Infinite — Use W/RF & LR | $66.87 Part Advantage |
| 8 |  | Seal, Switch Cover | $27.77 Part Advantage |
| 9 |  | Light, Indicator | - |
| 10 |  | Knob, Control (5) — Black | - |
| 10 |  | Knob, Control (5) — White | - |
| 11 |  | 8186533replaces 4455917 Bracket, Mounting | $33.49 Parts Dr |
| 12 | – | W10141435 Box, Burner | - |
| 13 | | Bumper, Silicone | - |
| 14 |  | WP3196557replaces 3196537 Screw | $2.30 Part Advantage |
| 15 |  | Seal, Switch Shaft (4) | $28.85 Part Advantage |
| 16 |  | WP9762441replaces 9762441 Switch, Rotary Accusimer | $57.53 Part Advantage |
| 17 |  | WP486579replaces 311865 Screw | $4.95 ApplianceParts Pro |
| 18 |  | W10491985replaces 3196160 Screw | $5.00 RepairClinic |
| 19 | – | 9760762 Shield, Heat | - |
| 20 | – | 8285962 Rail, Element | - |
| 20 | | Seal, Heat | - |
| 21 | | Foam Seal, Glass (2) Following Parts Not Illustrated | - |
